7" ultra-bright HDMI IPS TFT display for vibrant visuals without touch
This 7.0" IPS TFT LCD delivers rich 24-bit color, crisp 800x480 resolution, and full viewing angles with vibrant contrast and accurate color reproduction. The 1,000-nit LED backlight makes it sunlight readable, perfect for both indoor and outdoor use. Built without touch functionality, this display is ideal for applications focused on delivering vibrant visual content.
The module features built-in HDMI compatibility through a custom PCB with a Texas Instruments TFP401A HDMI receiver and a Microchip PIC18 microcontroller (two trusted components for reliable performance). Designed for simplicity, it offers a true plug-and-play interface with fewer cables and minimal setup.
An EMI-shielded FPC enhances signal integrity, and four integrated mounting holes support standard M3 screws for quick, secure installation. Whether you're working with Raspberry Pi, BeagleBone, Windows, Linux, or other HDMI-based systems, this display is a versatile solution. Like all Newhaven Display products, it meets RoHS and REACH compliance for environmental and safety standards.
NHD-7.0-HDMI-N-RSXP: Technical Specifications
| Size | 7" Diagonal |
|---|---|
| Resolution | 800x480 Pixels |
| Color | 24-Bit True Color |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | None |

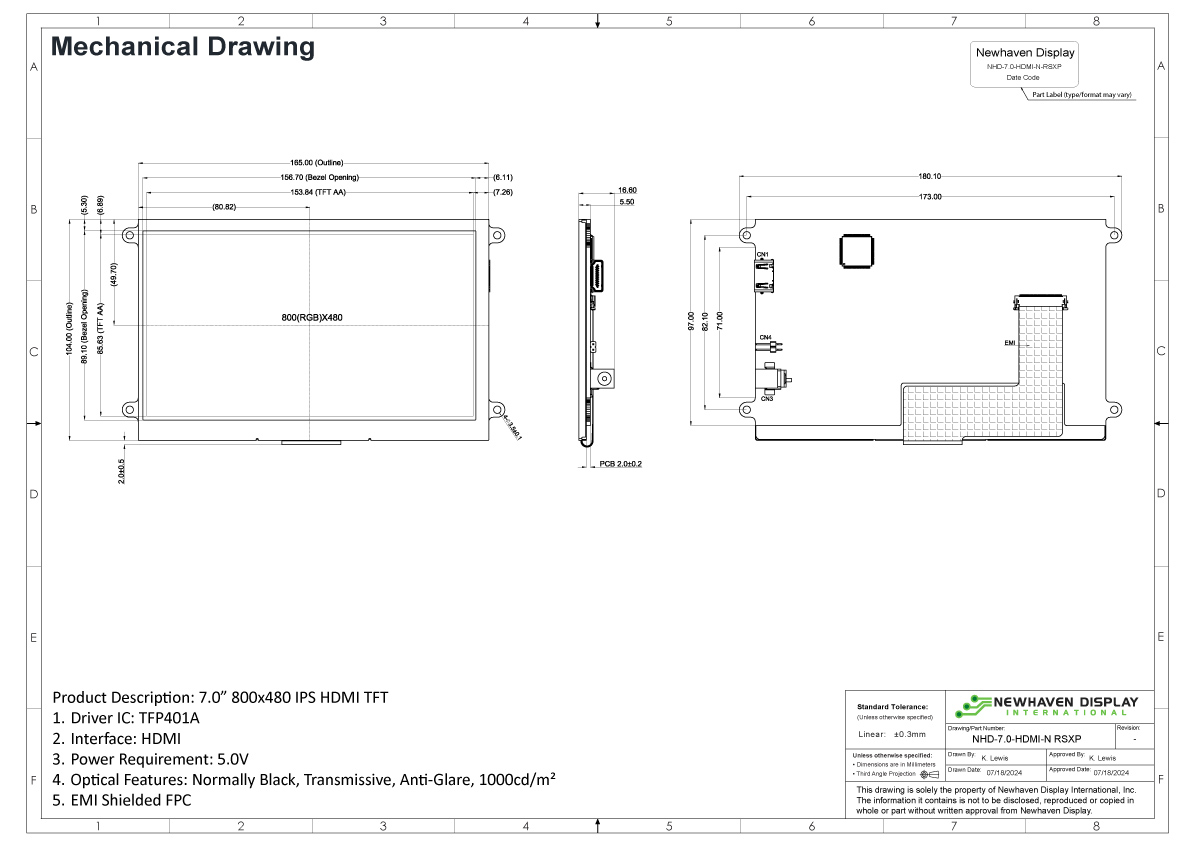

| Outline L x W x H | 180.1mm x 104mm x 16.6mm |
| Viewing Area L x W | 156.7mm x 89.1mm |
| Active Area L x W | 153.84mm x 85.63mm |
| Supply Voltage | 5.0V |
| Luminance | 1,000 Nits |
| Interface | HDMI |
| Compatibility | Raspberry Pi, BeagleBone, and similar boards |
| Controller Type | TFP401A |
| Connection Type | HDMI |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | 3.5mm Mounting Holes for M3 Screws |
| Built-In EMI Shielding | Yes |
| Additions | LED Driver with PWM |
