Vivid 2.8" IPS TFT LCD with capacitive multi-touch and sunlight readability.
This 2.8" IPS TFT LCD delivers 240x320 resolution with an 850-nit LED backlight, offering vivid colors, high contrast, and wide viewing angles. The built-in PCAP touchscreen with cover glass provides precise multi-touch functionality for intuitive gesture-based interaction in portrait-oriented projects.
Choose between 8- or 16-bit 8080-II parallel interface or SPI for flexible Arduino integration. A 40-pin FFC ZIF connector ensures secure, hassle-free installation, while the ST7789VI controller delivers smooth graphics and reliable performance.
RoHS compliant and engineered for dependable operation, this display is ideal for interactive, high-quality embedded applications in indoor or sunlight-exposed environments.
Using your own cover glass or overlay with our capacitive touchscreen displays? Talk to our engineering team about having us calibrate the touchscreen's sensitivity to maintain optimal performance. We can also work with you to customize and install cover glass so you don't have to.
NHD-2.8-240320AF-CSXP-FCTP: Technical Specifications
| Size | 2.8" Diagonal |
|---|---|
| Resolution | 240x320 Pixels |
| Colors | 262K |
| Display Type | Sunlight Readable IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | Capacitive + Cover Glass |

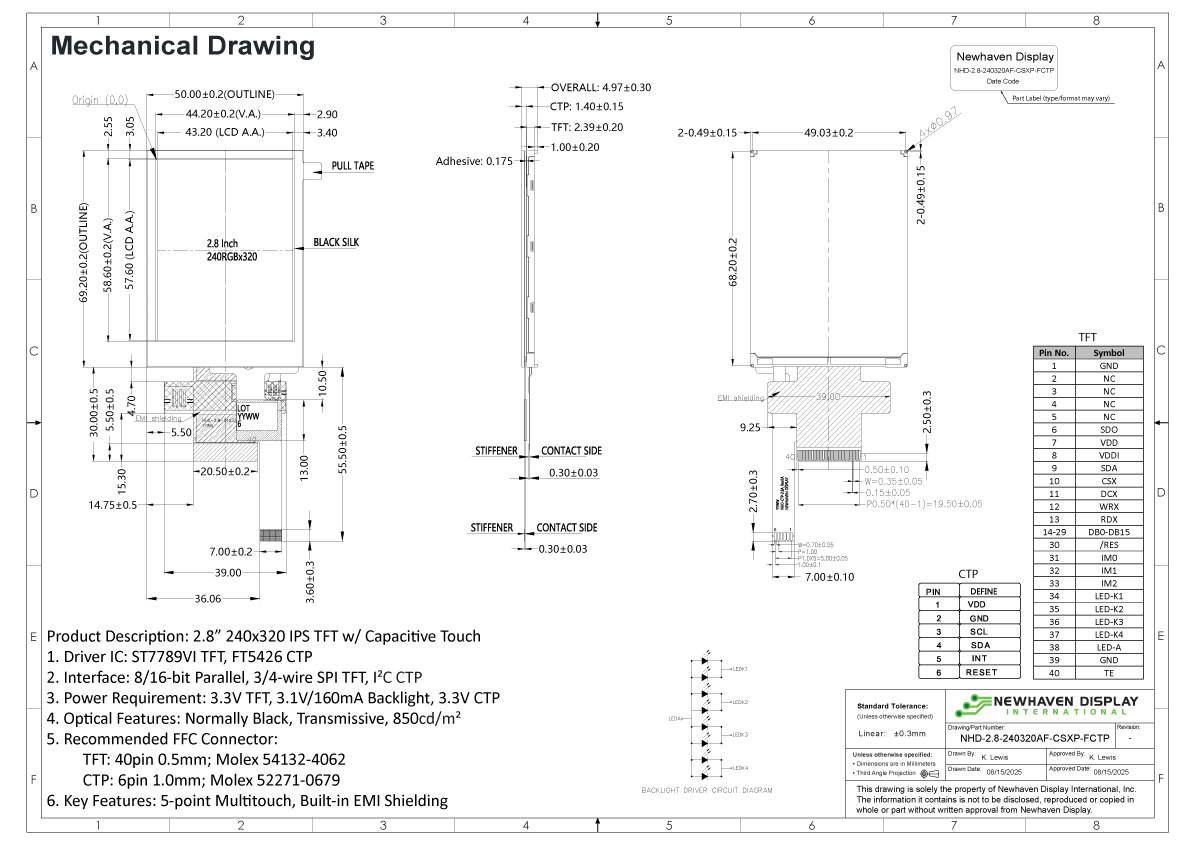

| Outline L x W x H | 50mm x 69.2mm x 4.99mm |
| Viewing Area L x W | 44.2mm x 58.6mm |
| Active Area L x W | 43.2mm x 57.6mm |
| Supply Voltage | 3.3V |
| Luminance | 850 Nits |
| Interface | 8-bit or 16-bit Parallel or 3/4-Wire SPI |
| Compatibility | Arduino or similar development boards |
| Display Controller Type | ST7789VI |
| CTP Controller Type | FT5426 |
| Connection Type | 40-Pin FFC ZIF (CTP: 6-Pin FFC) |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
