2.4" TFT display with simple touch control and easy Arduino integration.
This 2.4" TFT LCD offers 240x320 resolution with a 280-nit LED backlight and 6:00 viewing angle. Compact and efficient at 3.3V, it features a 4-wire resistive touch panel for intuitive user input and is ideal for menus, controls, and other interactive applications.
Choose from 8-bit or 16-bit 8080-II parallel interface for flexible integration with Arduino and embedded systems. A 40-pin FFC ZIF connector ensures quick, reliable installation, and the ST7789VI controller supports smooth graphics performance.
RoHS compliant and designed for reliable use, this display is a smart choice for embedded designs that need simple, touch-enabled functionality in a compact form factor.
NHD-2.4-240320CF-CTXI#-FT: Technical Specifications
| Size | 2.4" Diagonal |
|---|---|
| Resolution | 240x320 Pixels |
| Colors | 262K |
| Display Type | Standard TN |
| Display Mode | Transmissive |
| Optimal View | 6:00 |
| Touchscreen | 4-Wire Resistive |

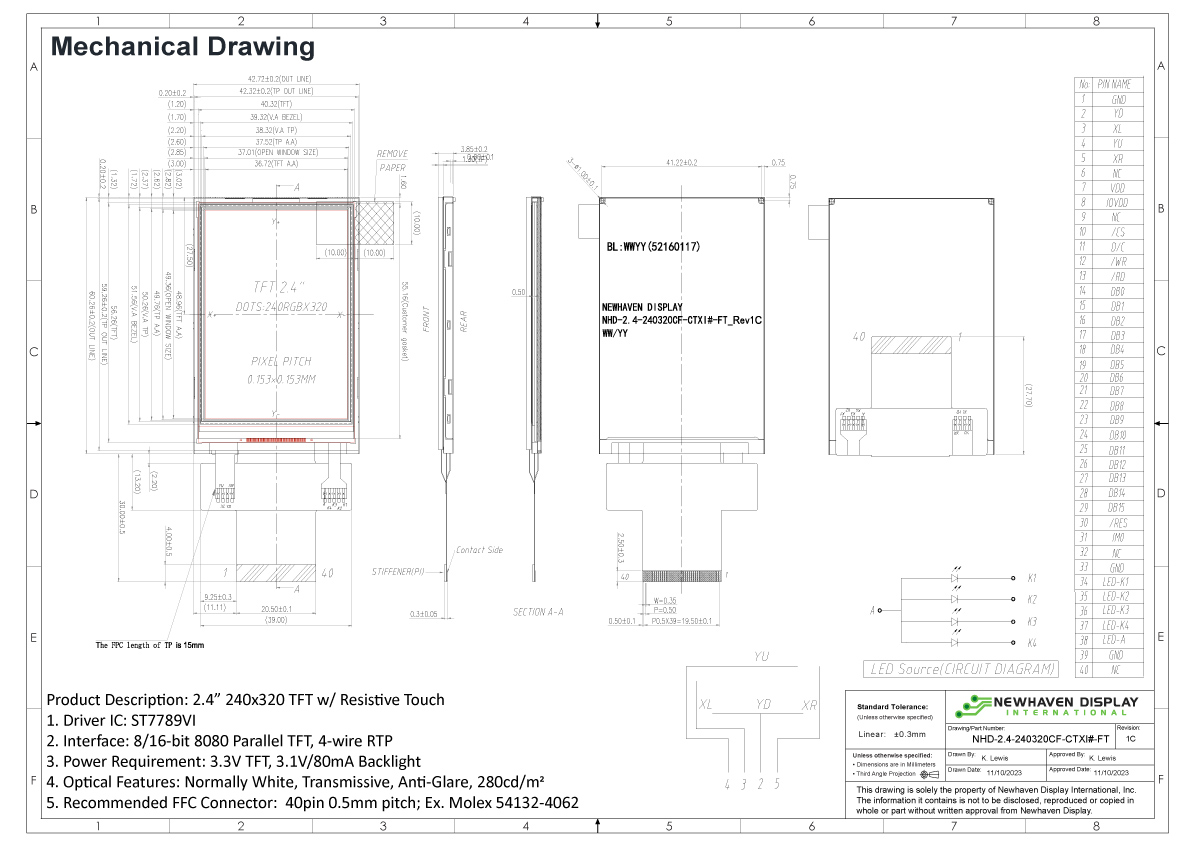

| Outline L x W x H | 42.72mm x 60.26mm x 3.85mm |
| Viewing Area L x W | 38.32mm x 50.26mm |
| Active Area L x W | 37.52mm x 48.96mm |
| Supply Voltage | 3.3V |
| Luminance | 280 Nits |
| Interface | 8-bit or 16-bit Parallel (8080-II Series) |
| Compatibility | Arduino or similar development boards |
| Controller Type | ST7789VI |
| Connection Type | 40-Pin FFC |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | No |
