Simple 128x64 Pixel STN+ Gray Graphic LCD with No Backlight
The NHD-C12864GG-RN-GBW is exactly what you need to display data and clean monochrome graphics in your next project. It features a 128x64 pixel STN+ Gray LCD display with no backlight and a reflective screen, offering great readability in well-lit conditions. Its 6:00 optimal viewing angle ensures visibility from different directions. The onboard ST7565R controller uses a Parallel interface, making it easy to pair with Arduino and similar development boards.
This display is a chip-on-glass design, which allows you more flexibility in incorporating it into your design because it is not bonded to a PCB. It runs on low 3.0V power for more efficient applications. It operates between -20° and 70° C, making it dependable in extreme conditions, and it is RoHS compliant for environmental safety.
NHD-C12864GG-RN-GBW: Technical Specifications
| Display Format | 128x64 Pixels |
|---|---|
| Display Type | STN (+) Gray |
| Display Mode | Reflective |
| Optimal View | 06:00 |

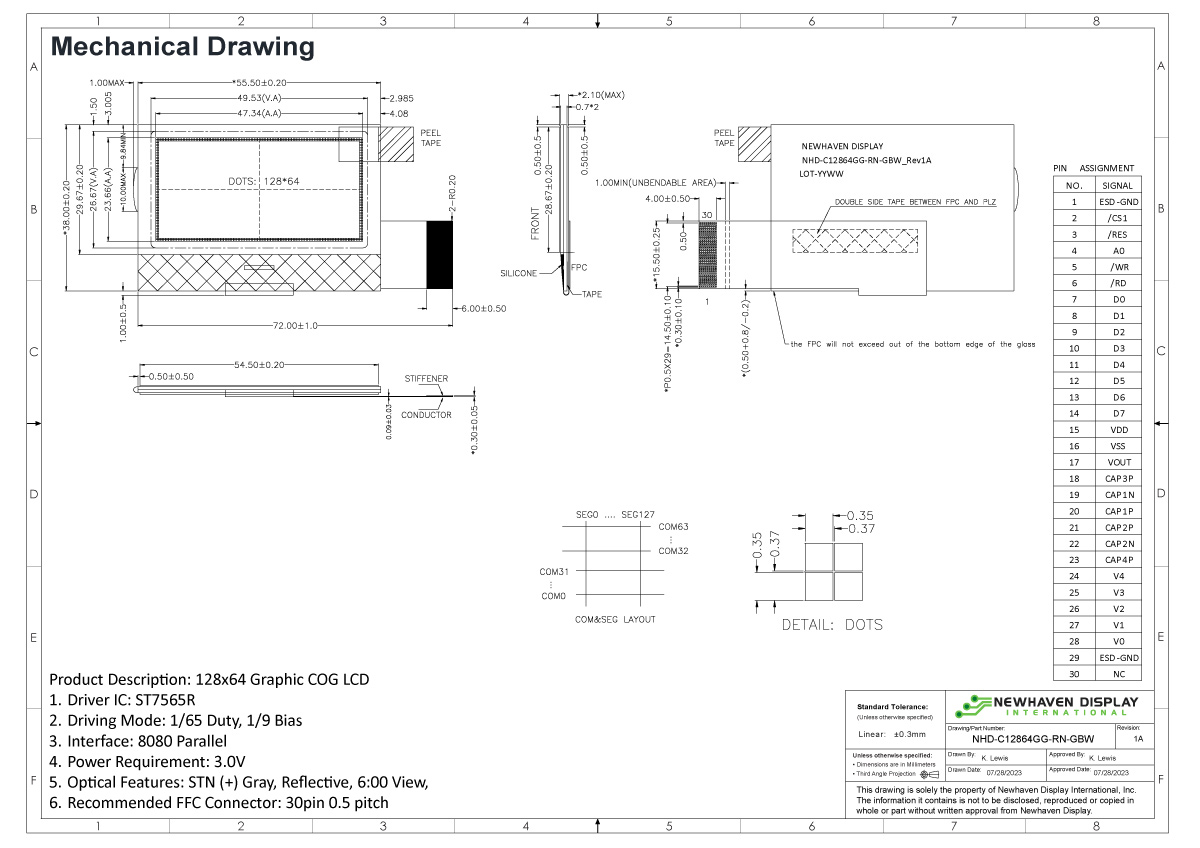

| Outline L x W x H | 55.5mm x 38mm x 2.1mm |
| Viewing Area L x W | 49.53mm x 26.67mm |
| Active Area L x W | 47.34mm x 23.66mm |
| Supply Voltage | 3V |
| Backlight | None |
| Interface | Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7565R |
| Connection Type | 30-Pin FFC with 0.50mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
