This small form display features high brightness display performance without the touch capability.
This compact 1.8" TFT LCD display packs a vivid 128x160 resolution and an ultra-bright 1,100-nit LED backlight for full sunlight readability. With a 6:00 viewing angle and portrait layout, it's built for outdoor visibility in tight spaces where simple, no-touch display output is all you need.
Its 3.0V low power requirement makes it ideal for portable and battery-powered applications. The transmissive display delivers sharp, colorful visuals, even in challenging lighting conditions.
The 3/4-wire SPI interface ensures fast communication with your Arduino or microcontroller for smooth animations and real-time updates. A 24-pin FFC ZIF connection offers a secure, easy-to-use link between your board and the display to eliminate connectivity issues during setup.
Driven by the ILI9163V controller, this module ensures stable performance and precise rendering of text, graphics, and UI elements. Like all Newhaven Display products, it's fully RoHS compliant and built to meet rigorous environmental and safety standards.

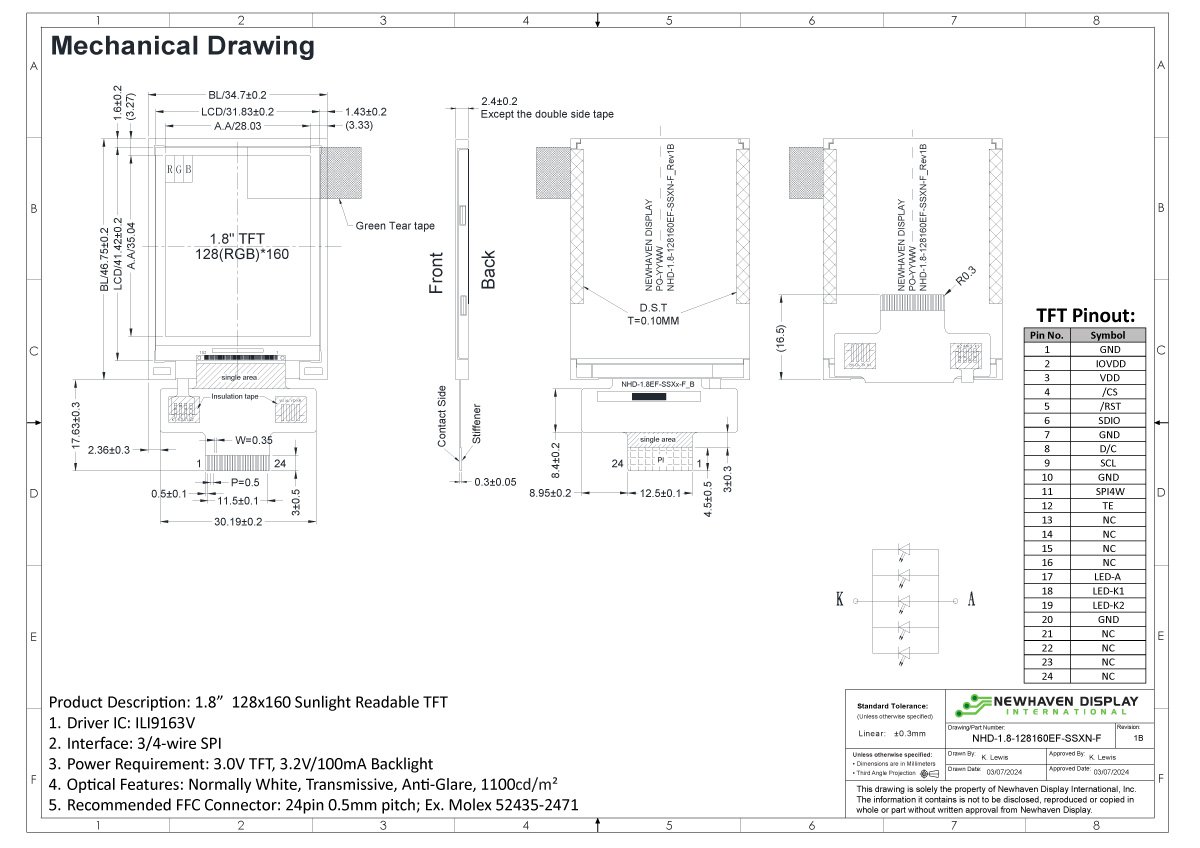

NHD-1.8-128160EF-SSXN-F: Technical Specifications
| Size | 1.8" Diagonal |
|---|---|
| Resolution | 128x160 Pixels |
| Display Type | Sunlight Readable |
| Display Mode | Transmissive |
| Optimal View | 6:00 |
| Touchscreen | None |
| Outline L x W x H | 34.7mm x 46.75mm x 2.25mm |
| Viewing Area L x W | 29.03mm x 36.04mm |
| Active Area L x W | 28.03mm x 35.04mm |
| Supply Voltage | 3.0V |
| Luminance | 1,100 Nits |
| Interface | 3/4-wire serial SPI |
| Compatibility | Arduino or similar development boards |
| Controller Type | ILI9163V |
| Connection Type | 24-Pin FFC ZIF |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | No |
