High-Contrast 20 x 4 Yellow Character OLED Module
This 20 x 4 character OLED screen is an excellent solution for projects that require clean, crisp text or numeric output. Its vivid yellow text stands out clearly against a black background, ensuring great visibility from any direction. Built for Arduino or similar development boards, it uses a reliable Proprietary controller and supports a Serial/Parallel interface for quick and easy integration.
The NHD-0420DZW-AY5 is designed to withstand extremes, operating in a temperature range from -40° to 80° C, so you can push your product to its limits without compromise or need for additional heating elements. It runs on 5.0V power, and all components are RoHS compliant for environmental safety.
NHD-0420DZW-AY5: Technical Specifications
| Size | 4 Row | 20 Characters |
|---|---|
| Display Format | 20 x 4 |
| Total Characters | 80 |
| Display Type | Character OLED Module |
| Display Color | Yellow |

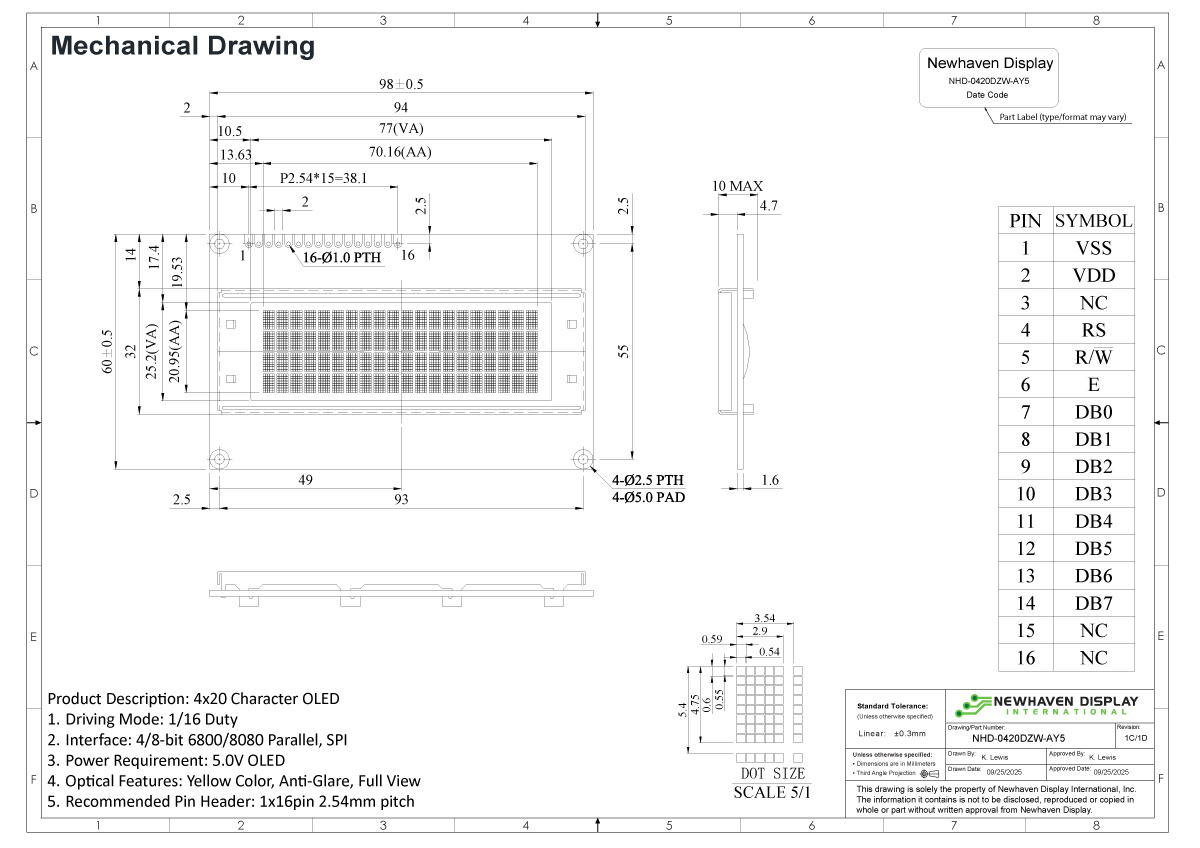

| Outline L x W x H | 98mm x 60mm x 10mm |
| Viewing Area L x W | 77mm x 25.2mm |
| Active Area L x W | 70.16mm x 20.95mm |
| Character Height | 4.75mm |
| Supply Voltage | 5.0V |
| Interface | Serial / Parallel |
| Compatibility | Arduino or Similar Development Boards |
| Controller Type | Proprietary |
| Connection Type | 1x16 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -40° ~ 80° C |
| Storage Temperature | -40° ~ 85° C |
