Stunning 2.1" round IPS TFT display, built for bright environments.
This 2.1" circular IPS TFT display delivers crisp 480x480 resolution and vibrant color performance with a 1,000-nit LED backlight, making it ideal for indoor, outdoor, or direct sunlight applications. The IPS technology ensures wide viewing angles, high contrast, and true color reproduction and makes this display perfect for designs that require standout visuals without touch input.
With options for 18-bit Parallel RGB or single-lane MIPI DSI, this display offers flexible connectivity for a wide range of embedded systems and Arduino-based projects. It features a 40-pin FFC with 0.5mm pitch and built-in EMI shielding for added reliability and signal protection.
Powered by the ST7701S driver IC, this module supports high-performance rendering while maintaining low power draw. Touch functionality can be added upon request, and like all our displays, it is RoHS compliant and meets strict environmental and safety standards.

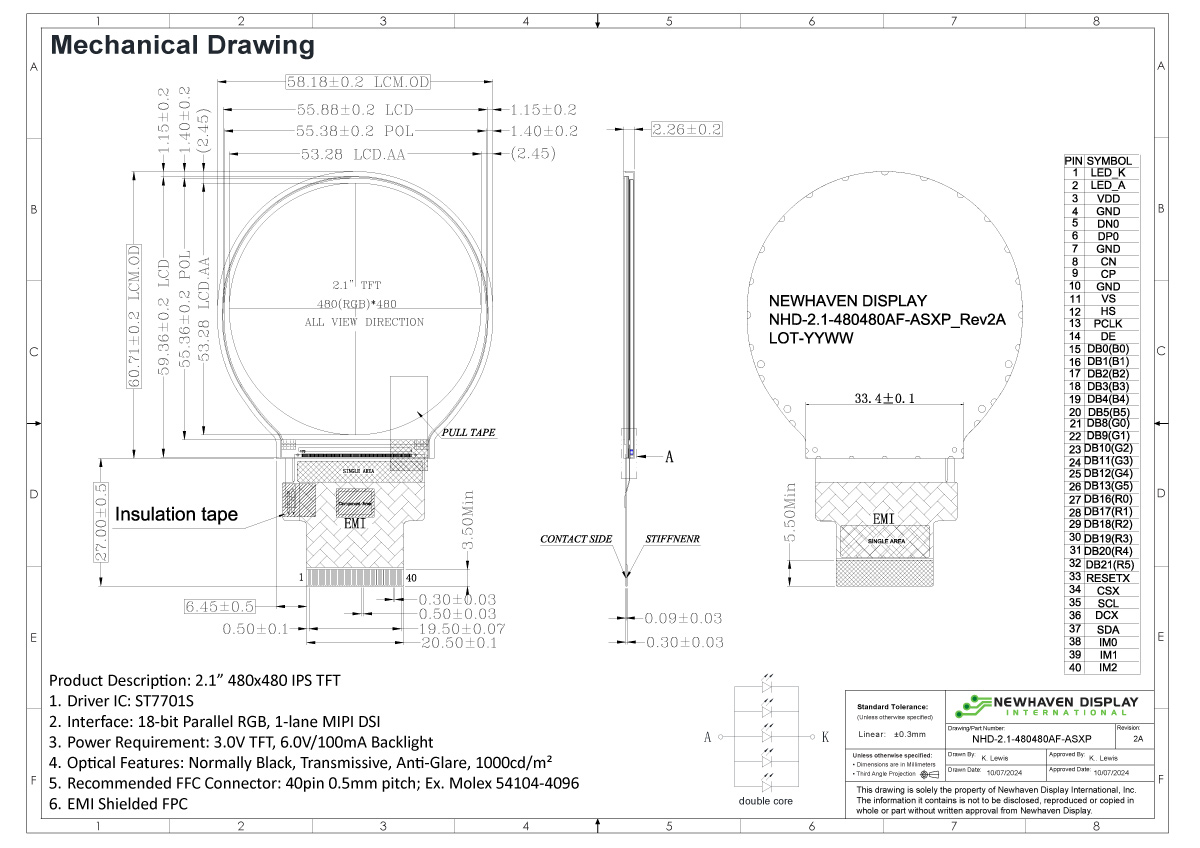

NHD-2.1-480480AF-ASXP: Technical Specifications
| Size | 2.1" Diagonal |
|---|---|
| Resolution | 480x480 Pixels |
| Display Type | Sunlight Readable IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | None |
| Outline L x W x H | 58.18mm x 60.71mm x 2.26mm |
| Active Area L x W | 53.28mm x 53.28mm |
| Supply Voltage | 3.3V |
| Luminance | 1,000 Nits |
| Interface | 18-bit RGB or 1-lane MIPI DSI |
| Compatibility | Arduino or similar development boards |
| Controller Type | ST7701S |
| Connection Type | 40-Pin FFC |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
