7" resistive touchscreen TFT display with RGB interface for simple, low-power applications
This 7.0" TFT LCD delivers 800x480 resolution with 24-bit color and a 12:00 optimal viewing angle. Its 260-nit LED backlight ensures clear visuals while conserving power, making it ideal for energy-conscious designs.
Equipped with a 4-wire resistive touchscreen, this module is a reliable choice for applications that require basic touch input, such as menus, system controls, or user-driven navigation. It runs on a 3.3V power supply and is suited for compact, touch-enabled interfaces.
The display connects via a 40-pin FFC cable and features a standard RGB interface, providing seamless compatibility with Arduino and similar development platforms. Powered by the EK79716B controller, it delivers stable performance and accurate image rendering.
Perfect for use in control panels, ATMs, POS systems, home appliances, kiosks, and navigation displays. All Newhaven Display modules meet RoHS requirements and strict quality standards for safety and sustainability.
NHD-7.0-800480EF-ATXL#-T: Technical Specifications
| Size | 7" Diagonal |
|---|---|
| Resolution | 800x480 Pixels |
| Color | 24-Bit True Color |
| Display Type | Standard TN |
| Display Mode | Transmissive |
| Optimal View | 12:00 |
| Touchscreen | 4-Wire Resistive |

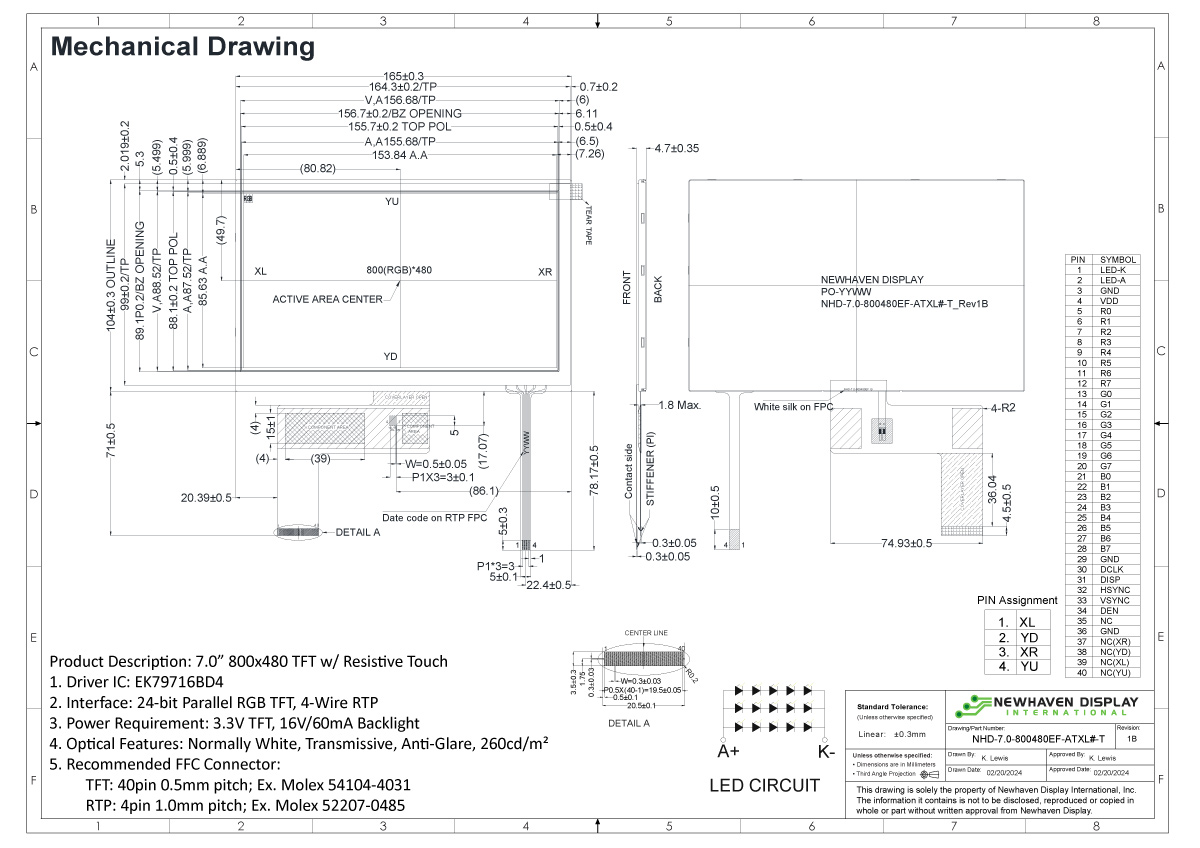

| Outline L x W x H | 165mm x 104mm x 4.7mm |
| Viewing Area L x W | 154.84mm x 86.63mm |
| Active Area L x W | 153.84mm x 85.63mm |
| Supply Voltage | 3.3V |
| Luminance | 260 Nits |
| Interface | RGB |
| Compatibility | Arduino and similar development boards |
| Controller Type | EK79716B |
| Connection Type | 40-Pin FFC (RTP: 4-Pin FFC) |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | No |
