Versatile 20x4 STN (+) Gray Character LCD with Yellow-Green Backlight
Choose the NHD-0420D3Z-FL-GBW-V3 for a strong display experience in your next build. It features a STN (+) Gray screen with a Yellow-Green backlight and transflective display technology, delivering reliable readability across lighting environments. A 6:00 optimal view angle ensures visibility from many perspectives. With the capable PIC 16F690 controller and Serial SPI, I2C, or RS232 (TTL) interface options, integration with Arduino and similar development boards is seamless-so you can stay focused on refining your design.
This display runs on a standard 5.0V supply, operates between -20° and 70° Celsius, and is RoHS compliant, making it environmentally friendly, even if the environment might not be friendly to it.
NHD-0420D3Z-FL-GBW-V3: Technical Specifications
| Size | 4 Row | 20 Characters |
|---|---|
| Display Format | 20x4 |
| Total Characters | 80 |
| Display Type | STN (+) Gray |
| Display Mode | Transflective |
| Optimal View | 06:00 |

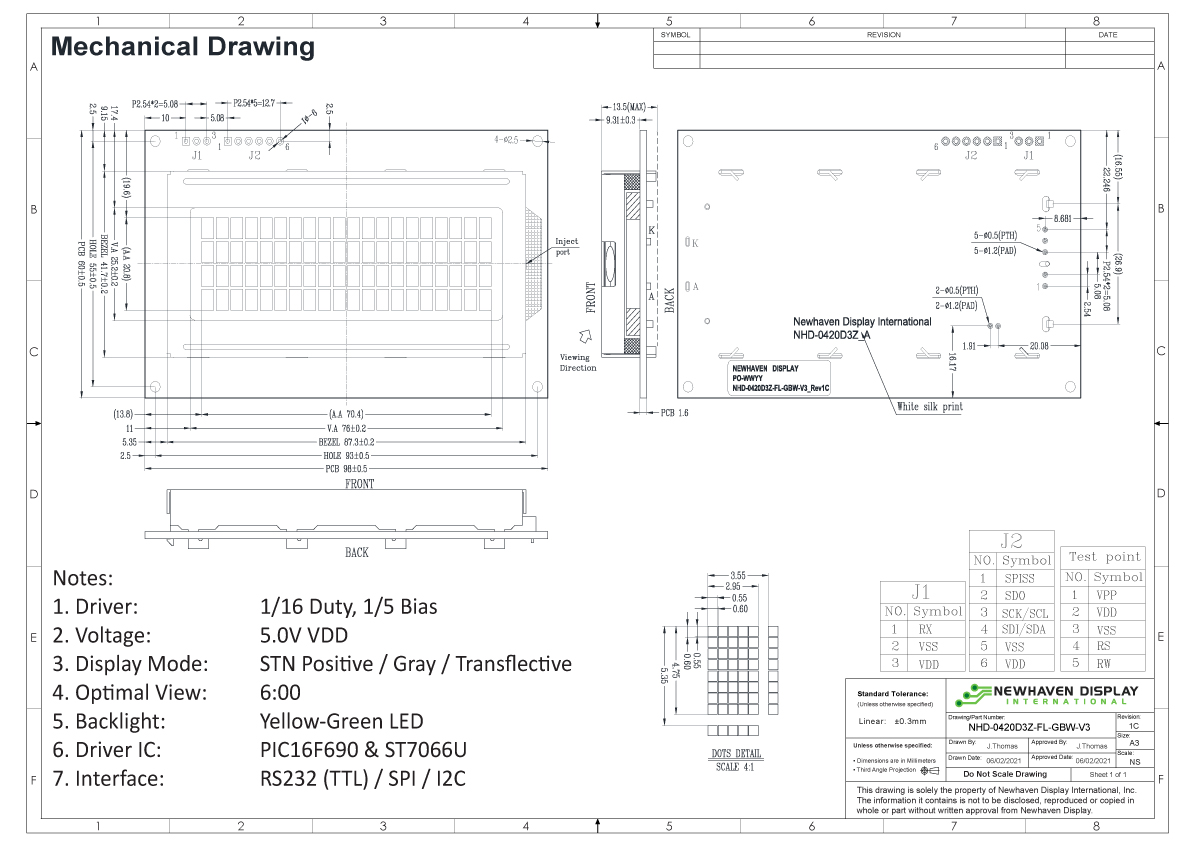

| Outline L x W x H | 98mm x 60mm x 13.5mm |
| Viewing Area L x W | 76mm x 25.2mm |
| Active Area L x W | 70.4mm x 20.8mm |
| Supply Voltage | 5V |
| Backlight | Yellow-Green |
| Interface | Serial SPI, I2C, or RS232 (TTL) |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | PIC 16F690 |
| Connection Type | 2.54mm Pitch thru pins |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
