Dependable 8x2 STN (+) Gray Character LCD with Yellow-Green Backlight
The NHD-0208AZ-FL-GBW is an excellent choice for your next project. It features a STN (+) Gray display with a Yellow-Green backlight and transflective screen for great visibility in any lighting condition. Its wide 6:00 optimal view also means it's readable from most directions. The powerful ST7066U controller makes working with the Parallel interface easy and pairing the display with Arduino and similar development boards fast, so you can focus your time where it matters most.
This display runs on a standard 5.0V supply, operates between -20° and 70° Celsius, and is RoHS compliant, making it environmentally friendly, even if the environment might not be friendly to it.
NHD-0208AZ-FL-GBW: Technical Specifications
| Size | 2 Row | 8 Characters |
|---|---|
| Display Format | 8x2 |
| Total Characters | 16 |
| Display Type | STN (+) Gray |
| Display Mode | Transflective |
| Optimal View | 06:00 |

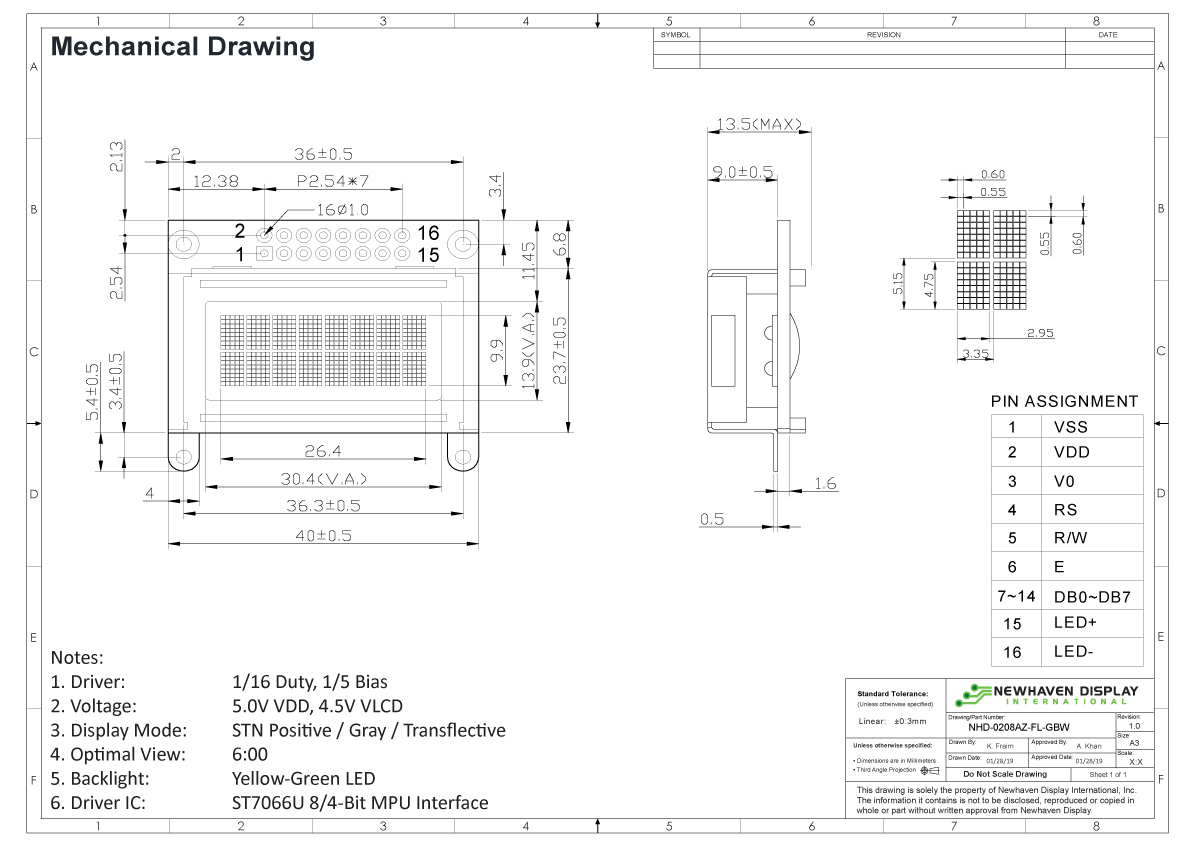

| Outline L x W x H | 40mm x 35.4mm x 13.5mm |
| Viewing Area L x W | 30.4mm x 13.9mm |
| Active Area L x W | 26.4mm x 9.9mm |
| Supply Voltage | 5V |
| Backlight | Yellow-Green |
| Interface | Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7066U |
| Connection Type | 2x8 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
