Colorful 128x64 Pixel FSTN+ Gray Graphic LCD with RGB Backlight
The NHD-C12864A1Z-FS(RGB)-FBW-HT1 delivers crisp visuals and is ideal for projects needing text or basic graphics. It features a 128x64 pixel FSTN+ Gray LCD display, RGB backlight, and a transflective screen for reliable readability under various lighting conditions. Red, green, and blue LEDs work in tandem to allow for a wide range of custom color options to suit any project and aesthetic. Thanks to its 6:00 viewing angle, it offers consistent clarity from different directions. Its ST7565R controller and Serial interface ensure seamless compatibility with Arduino and similar development systems.
The display runs on low 3.3V power for more efficient applications. It operates between -20° and 70° C, making it dependable in extreme conditions, and it is RoHS compliant for environmental safety.
NHD-C12864A1Z-FS(RGB)-FBW-HT1: Technical Specifications
| Display Format | 128x64 Pixels |
|---|---|
| Display Type | FSTN (+) Gray |
| Display Mode | Translfective |
| Optimal View | 06:00 |

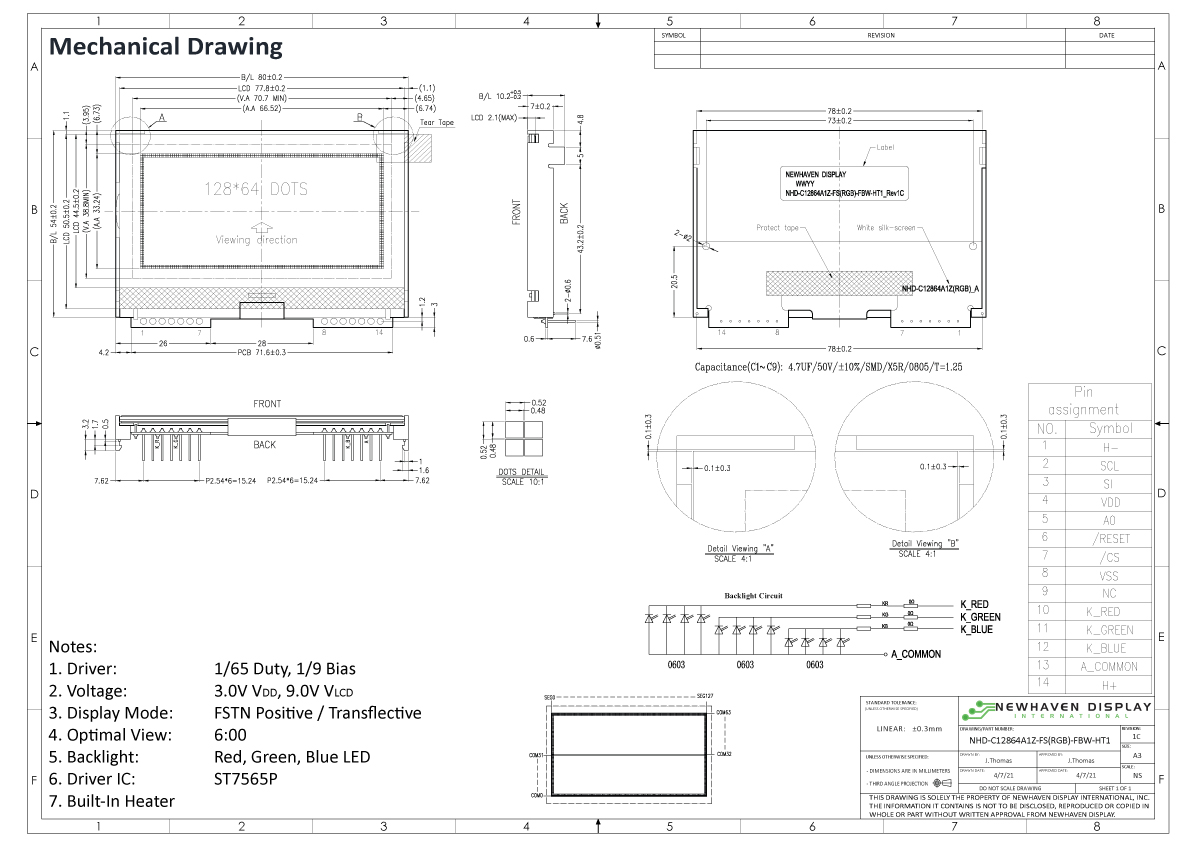

| Outline L x W x H | 80mm x 54mm x 10.2mm |
| Viewing Area L x W | 70.7mm x 38.8mm |
| Active Area L x W | 66.52mm x 33.24mm |
| Supply Voltage | 3V |
| Backlight | RGB |
| Interface | Serial |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7565R |
| Connection Type | Two 1x6 Pins with 5.54mm Pitch |
| Operating Temperature | -40° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
| Additions | Built-in 12V Heater |
