Time-Saving Arduino Shield with 1.27" Full Color Graphic OLED Display
The NHD-1.27-AU-SHIELD is designed to get you up and running fast. The Arduino shield makes integration fast and painless, while a single row pinout design also supports easy breadboard prototyping. Featuring a NHD-1.27-12896ASC3 1.27" OLED module with a 128 x 96 pixel resolution and a serial interface, it supports vibrant video playback and razor-sharp graphics rendering thanks to its 262K full color display.
The shield's logic level shifting allows for both 3.3V and 5.0V operation, and its open-source design allows for maximum flexibility and customization. It also has a built-in microSD card reader, which can both act as storage and free up memory on Arduino boards.
NHD-1.27-AU-SHIELD: Technical Specifications
| Product Type | Arduino Shield |
|---|---|
| Integrated Display | NHD-1.27-12896ASC3 |
| Display Format | 128x96 Pixels |
| Display Color | Full Color; 262K Colors |

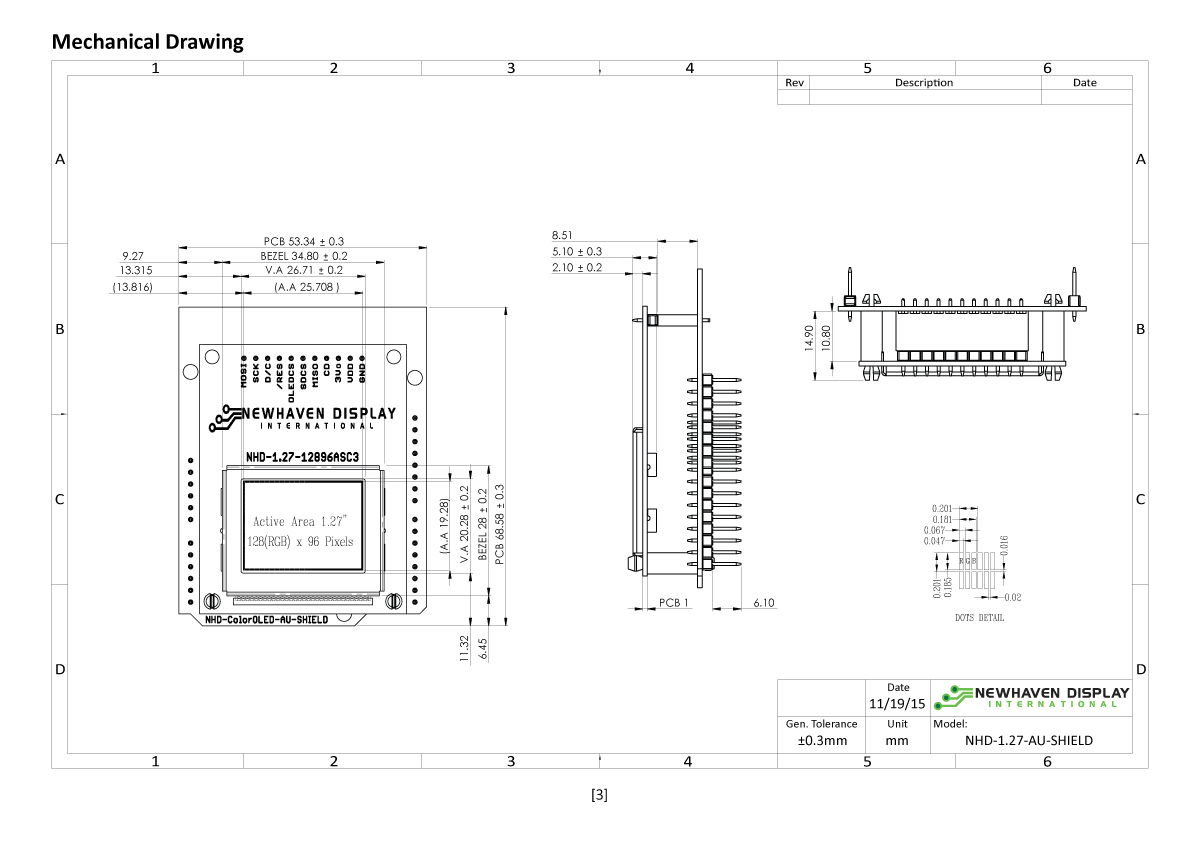

| Outline L x W x H | 53.34mm x 68.58mm x 14.9mm |
| Viewing Area L x W | 26.71mm x 20.28mm |
| Active Area L x W | 25.708mm x 19.28mm |
| Supply Voltage | 3.3V ~ 5.0V |
| Voltage Feature | Built-in Logic Level Shifting |
| Interface | Serial |
| Controller Type | SSD1351 |
| Arduino Boards | UNO, UNO SDM |
| Operating Temperature | -30° ~ 70°C |
| Storage Temperature | -40° ~ 80°C |
| Additions | MicroSD Card Reader |
