Streamlined Development Board with High-Brightness 2.4" Resistive Touch IPS TFT Display
The NHD-2.4R-CSXP-BREAKOUT development board offers a streamlined solution for IPS TFT display integration with resistive touch functionality. Featuring a sunlight-readable 2.4" NHD-2.4-240320AF-CSXP-T display, the board enhances its foundation with EMI shielding for added robustness, a built-in backlight driver to ease power distribution, and mounting holes for simplified installation. On-board logic level shifting supports both 3.3V and 5.0V systems, while straightforward parallel or SPI interfacing ensures flexible connectivity. A microSD card slot is also included for additional system storage. This module is ideal for Arduino-based projects requiring basic touch input.
NHD-2.4R-CSXP-BREAKOUT: Technical Specifications
| Product Type | TFT Breakout Module |
|---|---|
| Integrated Display | NHD-2.4-240320AF-CSXP-T |
| Display Format | 240x320 Pixels |
| Display Color | 262K Colors |

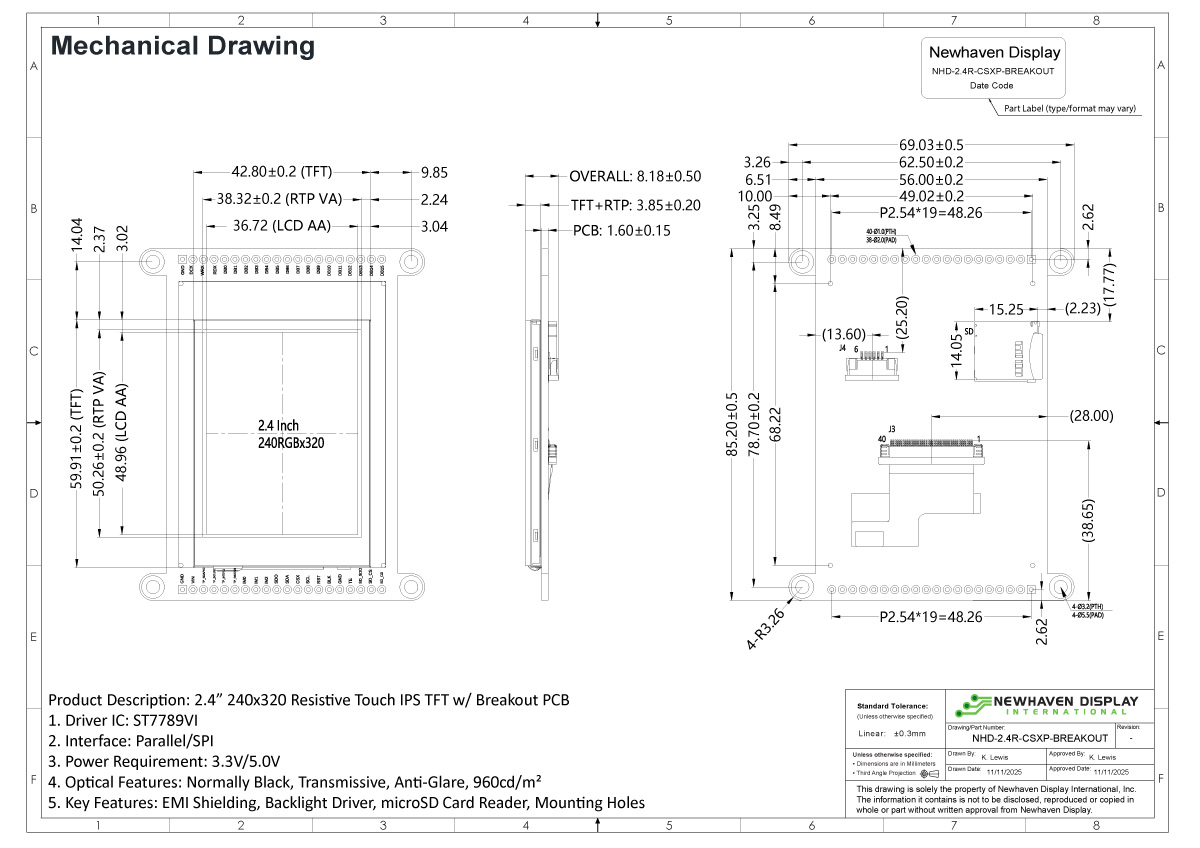

| Outline L x W x H | 85.2mm x 69.03mm x 8.18mm |
| Viewing Area L x W | 38.32mm x 50.26mm |
| Active Area L x W | 36.72mm x 48.96mm |
| Touchscreen | Resistive |
| Luminance | 960 Nits |
| Supply Voltage | 3.3V ~ 5.0V |
| Voltage Feature | Logic Level Shifting |
| Interface | Parallel / SPI |
| Controller Type | ST7789VI |
| Connection Type | Two 1x20-Pin Thru-Hole with 2.54mm Pitch |
| Compatibility | Arduino and Similar Development Boards |
| Operating Temperature | -20° to 70°C |
| Storage Temperature | -30° to 80°C |
| Built-In Mounting | 3.2mm Mounting Holes |
| Built-In EMI Shielding | Yes |
| Additions | microSD Card Reader, Integrated Backlight Driver |
