High-Contrast 16x2 Green Character OLED Module
This 16x2 character OLED display is a smart pick to display sharp text and numbers for your next project. It features highly legible monochrome text on a rich black background, delivering superior contrast and clarity from any viewing angle. The green OLED display is fully compatible with Arduino or similar development boards, using a Proprietary controller and a Serial/Parallel interface for smooth setup and integration.
The NHD-0216SZW-BG5 is designed to withstand extremes, operating in a temperature range from -40° to 80° C, so you can push your product to its limits without compromise or need for additional heating elements. It runs on 5.0V power, and all components are RoHS compliant for environmental safety.
NHD-0216SZW-BG5: Technical Specifications
| Size | 2 Row | 16 Characters |
|---|---|
| Display Format | 16x2 |
| Total Characters | 32 |
| Display Type | Character OLED Module |
| Display Color | Green |

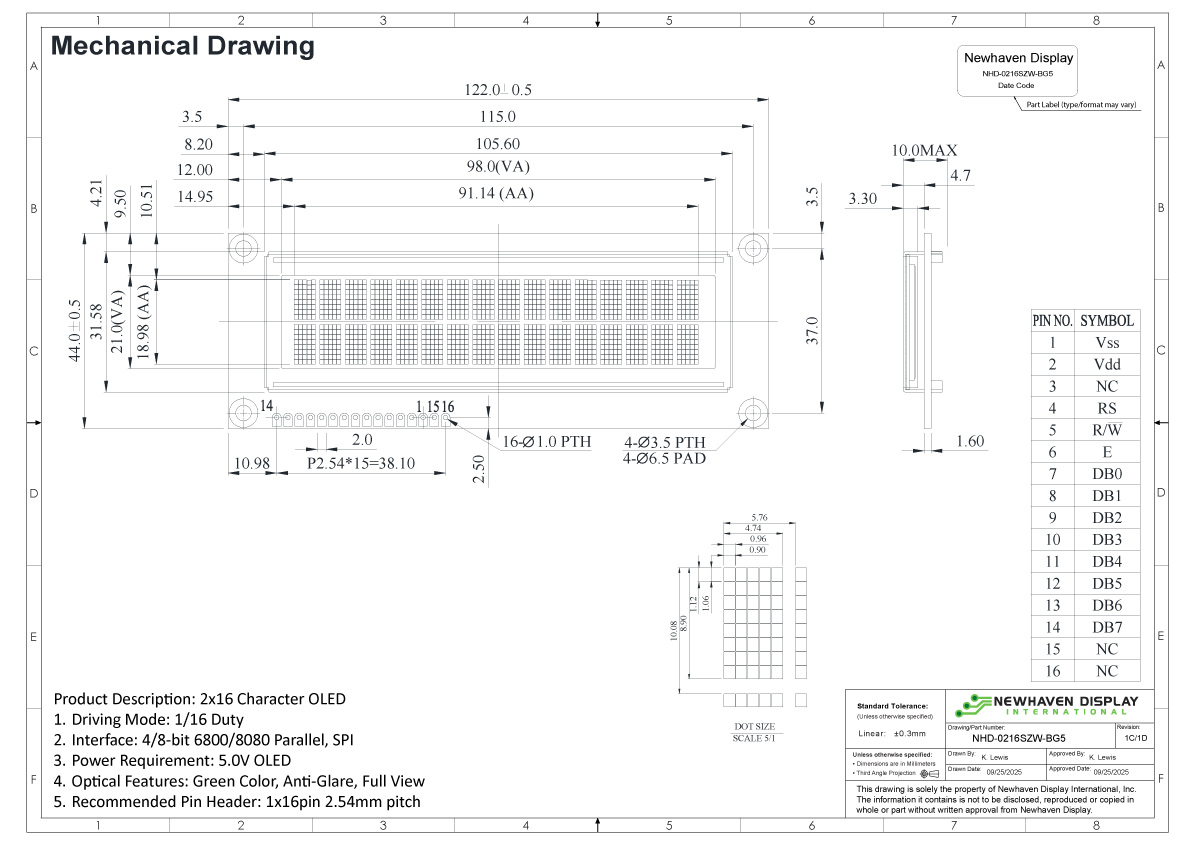

| Outline L x W x H | 122mm x 44mm x 10mm |
| Viewing Area L x W | 98mm x 21mm |
| Active Area L x W | 91.14mm x 18.98mm |
| Character Height | 8.9mm |
| Supply Voltage | 5.0V |
| Interface | Serial / Parallel |
| Compatibility | Arduino or Similar Development Boards |
| Controller Type | Proprietary |
| Connection Type | 1x16 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -40° ~ 80° C |
| Storage Temperature | -40° ~ 80° C |
