High-Contrast 16x2 STN (-) Blue Character LCD with White Backlight
Choose the NHD-0216SZ-NSW-BBW for a strong display experience in your next build. It features a STN (-) Blue screen with a White backlight and transmissive display technology, delivering reliable readability across lighting environments. A 6:00 optimal view angle ensures visibility from many perspectives. With the capable ST7066U controller and Parallel interface, integration with Arduino and similar development boards is seamless-so you can stay focused on refining your design.
This display runs on a standard 5.0V supply, operates between -20° and 70° Celsius, and is RoHS compliant, making it environmentally friendly, even if the environment might not be friendly to it.
NHD-0216SZ-NSW-BBW: Technical Specifications
| Size | 2 Row | 16 Characters |
|---|---|
| Display Format | 16x2 |
| Total Characters | 32 |
| Display Type | STN (-) Blue |
| Display Mode | Transmissive |
| Optimal View | 06:00 |

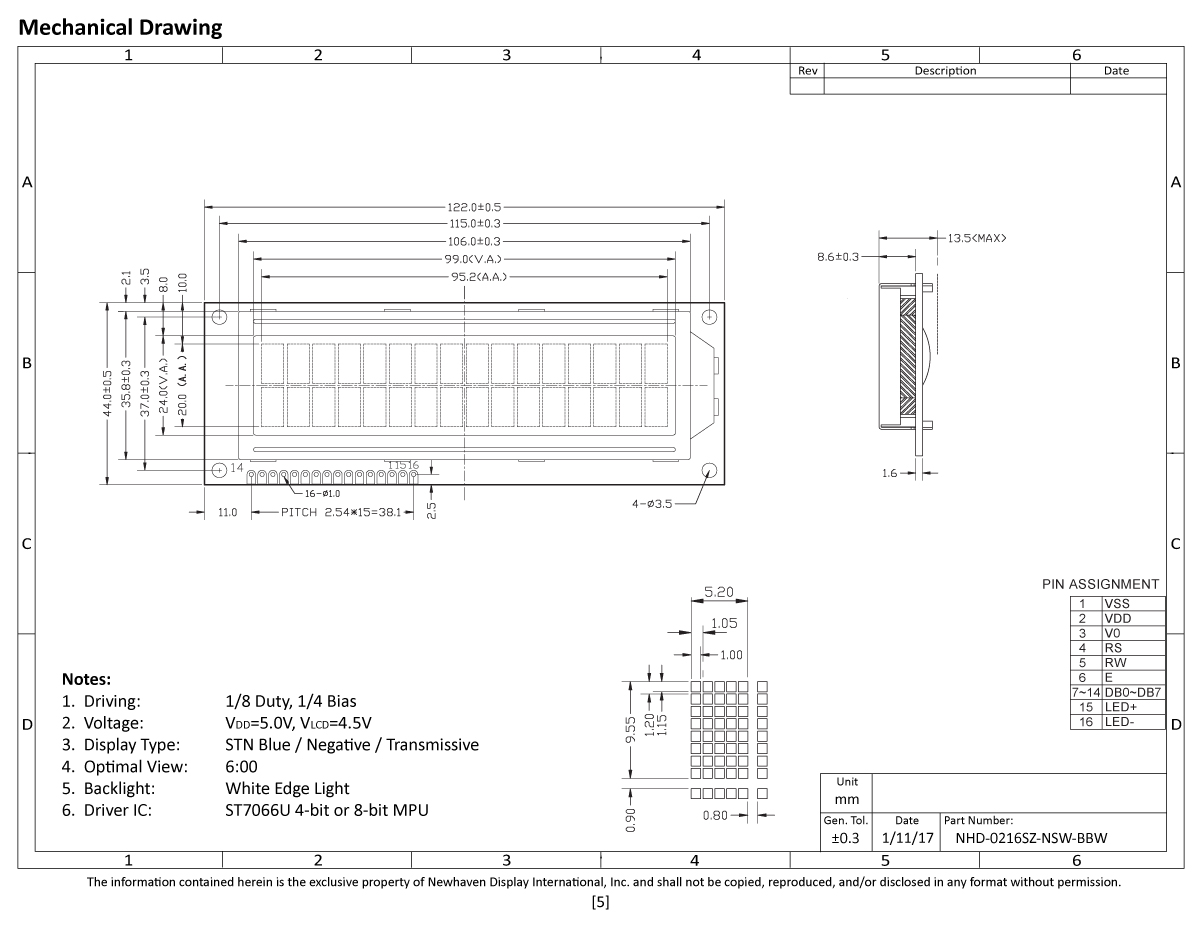

| Outline L x W x H | 122mm x 44mm x 13.5mm |
| Viewing Area L x W | 99mm x 24mm |
| Active Area L x W | 95.2mm x 20mm |
| Supply Voltage | 5V |
| Backlight | White |
| Interface | Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7066U |
| Connection Type | 1x16 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
