Dependable 8x1 STN (+) Yellow-Green Character LCD with Yellow-Green Backlight
The NHD-0108FZ-FL-YBW-33V3 is a smart solution for your next project. It combines a STN (+) Yellow-Green display with a Yellow-Green backlight and transflective screen, resulting in clear readability whether you're indoors or out. Its generous 6:00 viewing angle ensures visibility from most directions. Thanks to the robust ST7066U controller and easy-to-use Parallel interface, integrating with Arduino and similar development boards is quick and painless-leaving you more time to build.
This display runs on a low 3.3V supply, operates between -20° and 70° Celsius, and is RoHS compliant, making it environmentally friendly, even if the environment might not be friendly to it.
NHD-0108FZ-FL-YBW-33V3: Technical Specifications
| Size | 1 Row | 8 Characters |
|---|---|
| Display Format | 8x1 |
| Total Characters | 8 |
| Display Type | STN (+) Yellow-Green |
| Display Mode | Transflective |
| Optimal View | 06:00 |

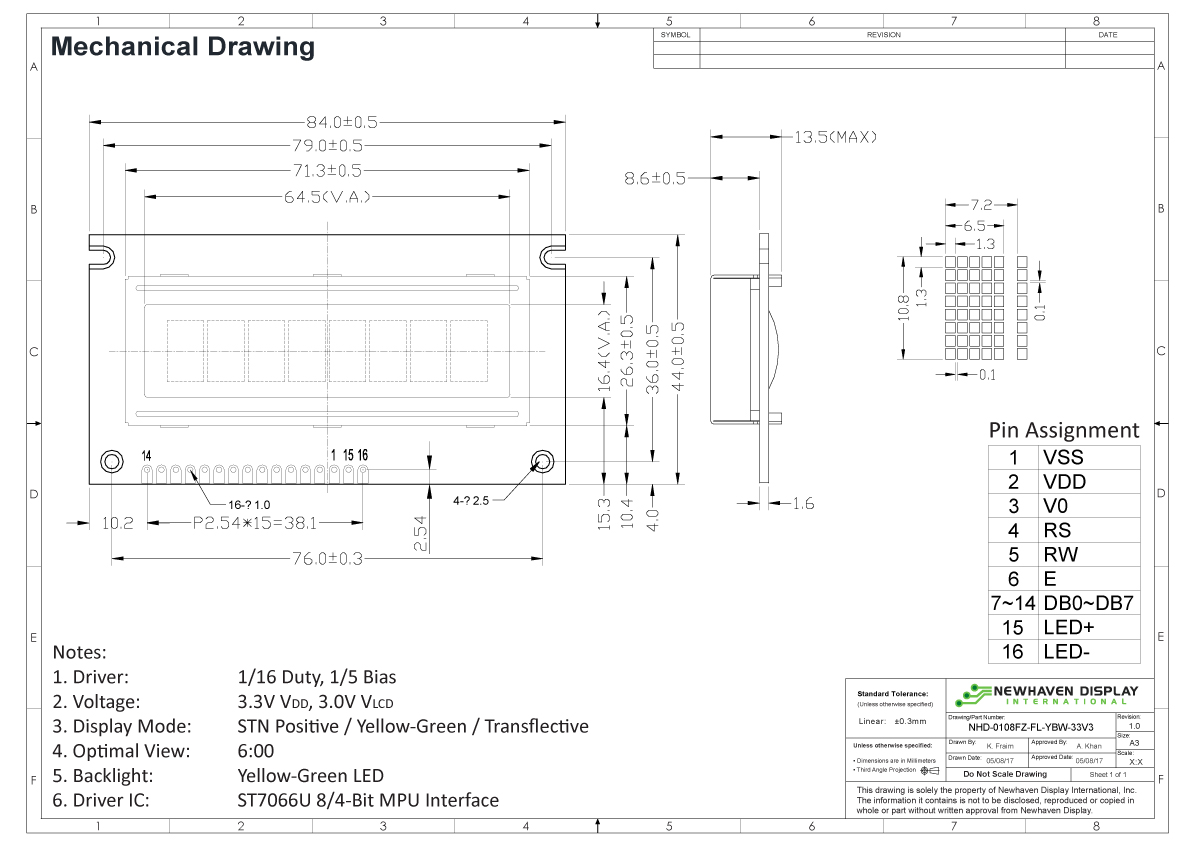

| Outline L x W x H | 84mm x 44mm x 13.5mm |
| Viewing Area L x W | 64.5mm x 16.4mm |
| Active Area L x W | 63.5mm x 15.4mm |
| Supply Voltage | 3.3V |
| Backlight | Yellow-Green |
| Interface | Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7066U |
| Connection Type | 1x16 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
