Dependable 16x4 STN (+) Gray Character LCD with Yellow-Green Backlight
Choose the NHD-0416BZ-FL-GBW for a strong display experience in your next build. It features a STN (+) Gray screen with a Yellow-Green backlight and transflective display technology, delivering reliable readability across lighting environments. A 6:00 optimal view angle ensures visibility from many perspectives. With the capable ST7066U controller and Parallel interface, integration with Arduino and similar development boards is seamless-so you can stay focused on refining your design.
This display runs on a standard 5.0V supply, operates between -20° and 70° Celsius, and is RoHS compliant, making it environmentally friendly, even if the environment might not be friendly to it.
NHD-0416BZ-FL-GBW: Technical Specifications
| Size | 4 Row | 16 Characters |
|---|---|
| Display Format | 16x4 |
| Total Characters | 64 |
| Display Type | STN (+) Gray |
| Display Mode | Transflective |
| Optimal View | 06:00 |

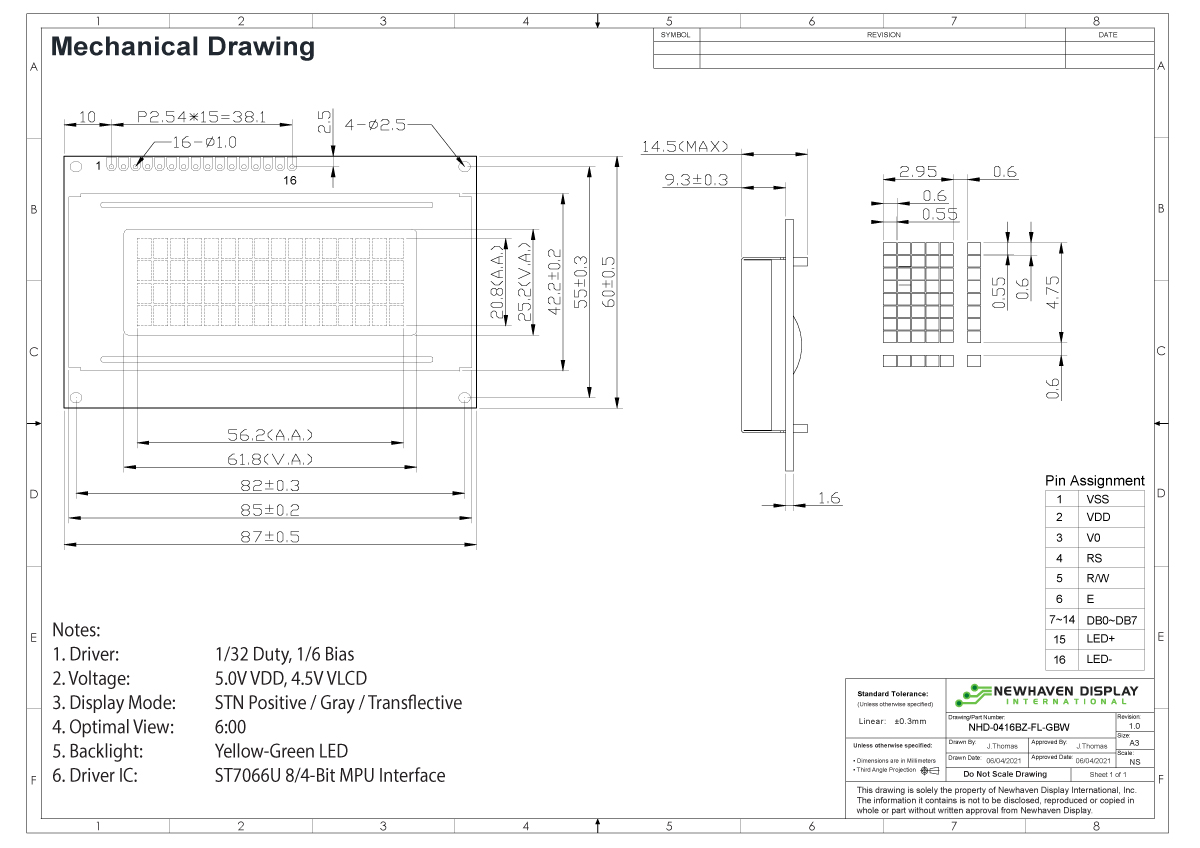

| Outline L x W x H | 87mm x 60mm x 14.5mm |
| Viewing Area L x W | 61.8mm x 25.2mm |
| Active Area L x W | 56.2mm x 20.8mm |
| Supply Voltage | 5V |
| Backlight | Yellow-Green |
| Interface | Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7066U |
| Connection Type | 1x16 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
