High resolution 4.3" IPS TFT display with seamless HDMI connectivity and sunlight-readable brightness
This 4.3" IPS TFT display delivers sharp, vibrant visuals with 800x480 resolution, wide viewing angles, and a high-brightness 850-nit LED backlight, making it sunlight-readable even in direct sun. Assembled to a USA-engineered PCB with built-in HDMI compatibility, it's an excellent choice for projects that require high-end visual output without touch functionality.
Powered by a Texas Instruments TFP401A HDMI/DVI receiver with PWM-enabled LED driver, this module connects easily to Raspberry Pi, BeagleBone, or Windows Embedded PCs. Most Linux systems also work plug-and-play, though Raspberry Pi users may need minor config.txt adjustments. Setup is fast and flexible with a built-in steel mounting bracket and no extra casing required. RoHS compliant and built for reliable, long-term performance in embedded applications.
NHD-4.3-HDMI-HR-RSXP: Technical Specifications
| Size | 4.3" Diagonal |
|---|---|
| Resolution | 800x480 Pixels |
| Color | 24-Bit True Color |
| Display Type | Sunlight Readable IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | None |

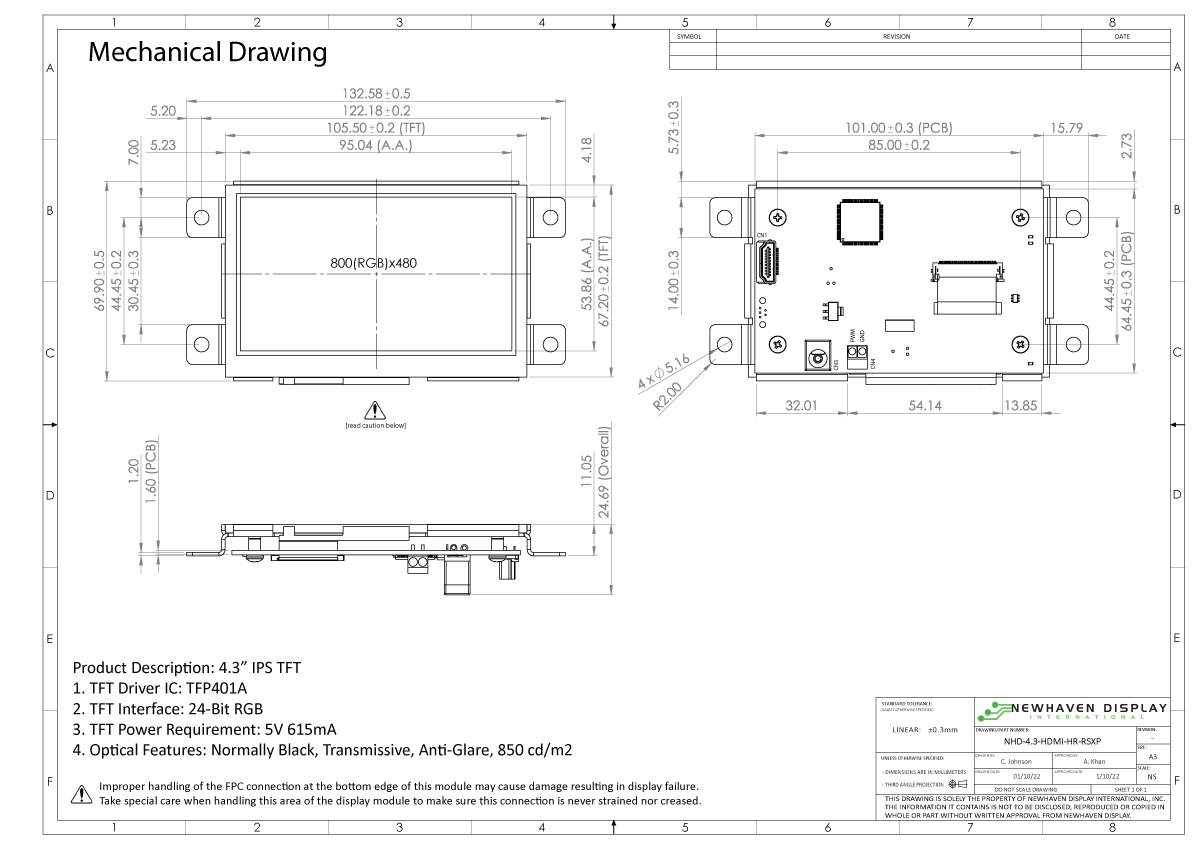

| Outline L x W x H | 132.58mm x 69.9mm x 24.69mm |
| Viewing Area L x W | 96.1mm x 54.8mm |
| Active Area L x W | 95.04mm x 53.86mm |
| Supply Voltage | 5.0V |
| Luminance | 850 Nits |
| Interface | HDMI |
| Compatibility | Raspberry Pi, BeagleBone, and similar boards |
| Controller Type | TFP401A |
| Connection Type | HDMI |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | 5.16mm Mounting Holes for M5 Screws |
| Built-In EMI Shielding | No |
| Additions | LED Driver with PWM |
