3.9" sunlight-readable bar-type IPS TFT with no touchscreen for simple readability in any environment
This sleek 3.9" bar-type IPS TFT display is designed for space-conscious applications and rack-mounted systems. Delivering a 480 x 128 resolution with 24-bit color depth (16.7M colors) and IPS technology, this LCD provides crisp visuals, high contrast, and consistent color accuracy across wide viewing angles. Its high-brightness LED backlight with 1200 nits ensures readability in bright indoor environments and direct sunlight, while the anti-glare coating enhances clarity under challenging lighting conditions. This non-touch display features a 24-bit RGB interface and built-in ST7282 driver IC provides reliable graphics and performance for embedded systems, Arduino, Raspberry Pi and other development boards. With built-in EMI shielding to protect against electromagnetic interference, the module supports both landscape and portrait orientations, making it suitable for a wide variety of industrial, automotive, medical, retail, and consumer applications, such as HMI panels, industrial controllers, automotive media systems, POS signage, and gaming consoles. The slim form factor fits neatly within 1U rack height, offering a high-quality, high-brightness display solution without touch functionality. All our products are RoHS compliant and engineered to meet rigorous industrial and commercial standards.
NHD-3.9-480128AF-ASXP: Technical Specifications
| Size | 3.9" Diagonal |
|---|---|
| Resolution | 480x128 Pixels |
| Color | 16.7M Colors |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | None |

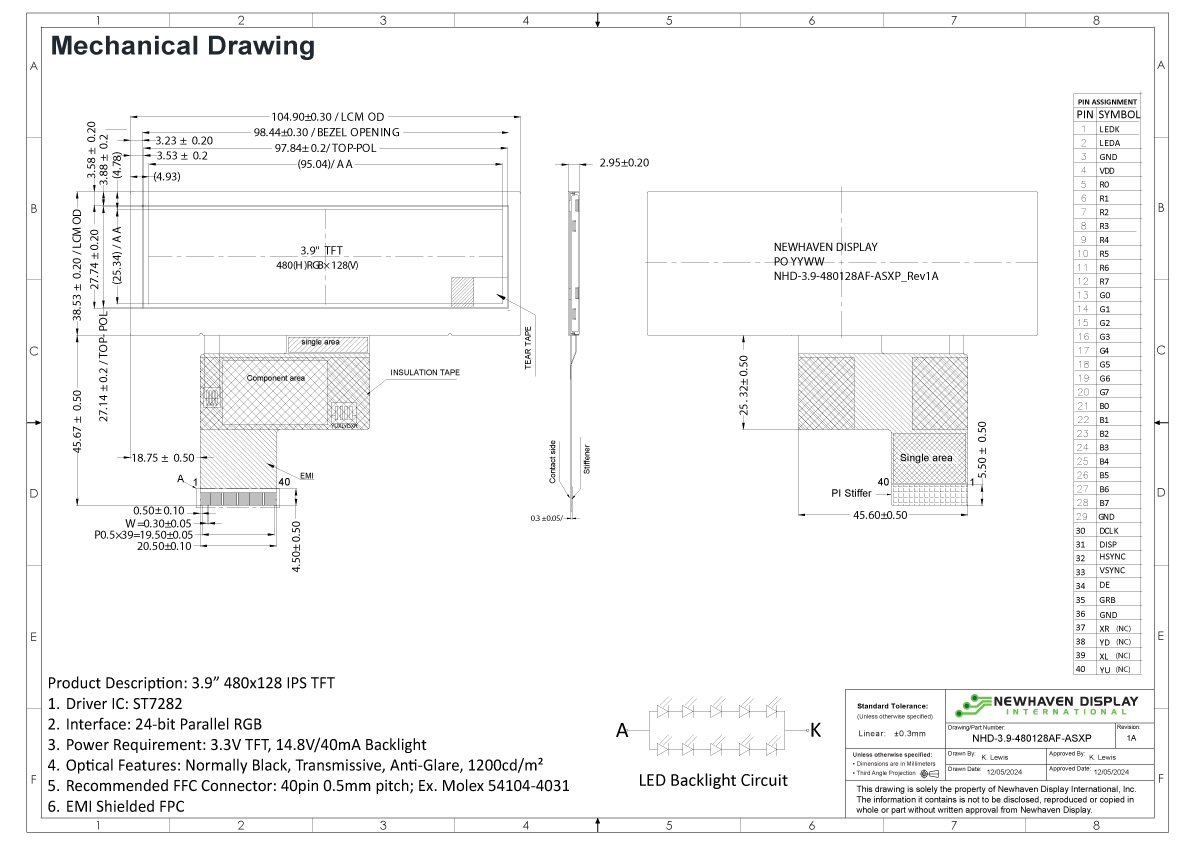

| Outline L x W x H | 104.9mm x 38.53mm x 2.95mm |
| Viewing Area L x W | 97.84mm x 27.14mm |
| Active Area L x W | 95.04mm x 25.34mm |
| Supply Voltage | 3.3V |
| Luminance | 1200 Nits |
| Interface | 24-Bit RGB |
| Compatibility | Arduino and similar development boards |
| Display Controller Type | ST7282 |
| Connection Type | 40-Pin FFC |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
