This 3.5" sunlight readable IPS TFT display features vibrant color for high-impact visuals
Experience clear, high-quality visuals with this 3.5" IPS TFT display. With a 320x240 resolution, wide viewing angles, and a 1,100-nit LED backlight, it delivers stunning sharpness and sunlight-readable performance even in bright outdoor conditions. The upgraded FPC with EMI shielding ensures reliable signal integrity, and its 3.3V power supply makes it an excellent choice for projects that need high-end visual output without touchscreen functionality.
Featuring a 24-bit RGB interface and a 54-pin FFC connection, this display is easy to integrate with Arduino and similar development boards. Powered by a built-in Sitronix ST7272A driver IC, it provides smooth, accurate rendering and dependable performance for your applications. All our displays are RoHS compliant and adhere to strict environmental and safety standards.
NHD-3.5-320240JF-ASXP: Technical Specifications
| Size | 3.5" Diagonal |
|---|---|
| Resolution | 320x240 Pixels |
| Color | 24-Bit True Color |
| Display Type | Sunlight Readable IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | None |

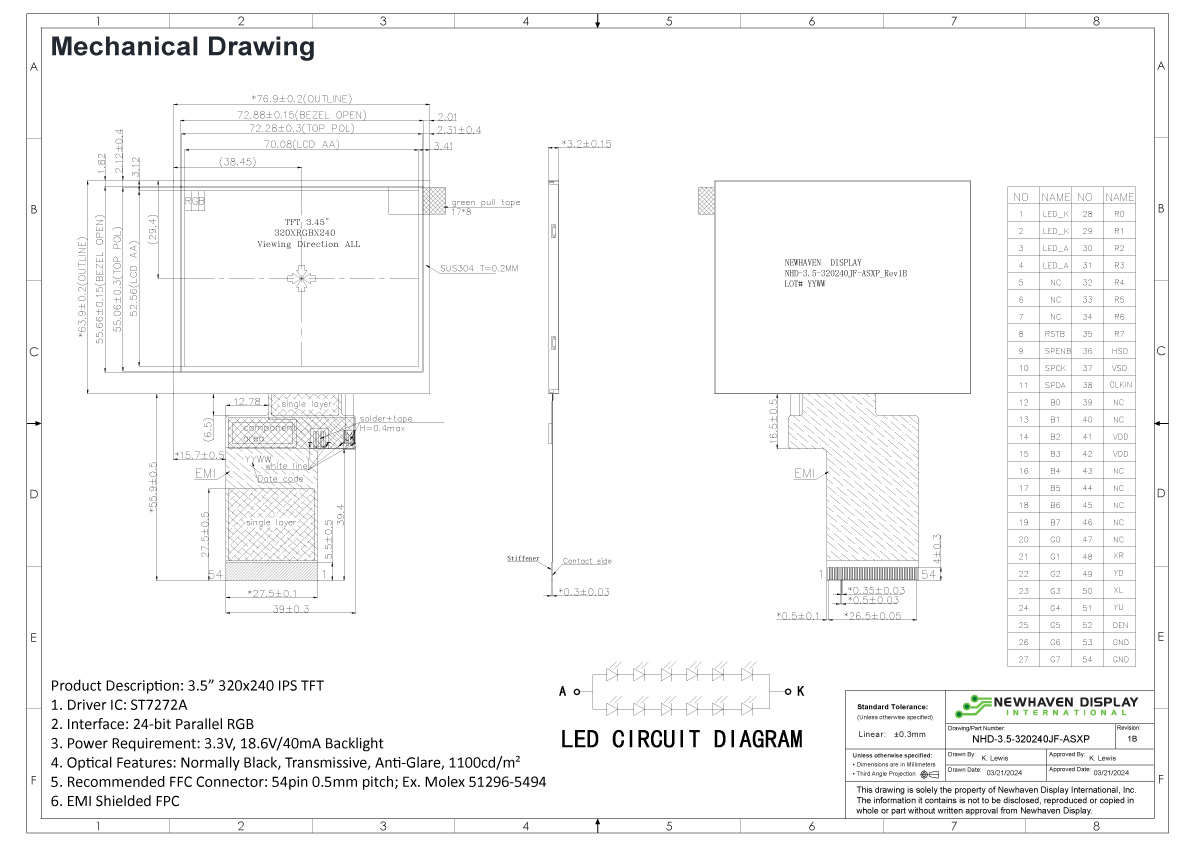

| Outline L x W x H | 76.9mm x 63.9mm x 3.2mm |
| Viewing Area L x W | 72.88mm x 55.66mm |
| Active Area L x W | 70.08mm x 52.56mm |
| Supply Voltage | 3.3V |
| Luminance | 1,000 Nits |
| Interface | 24-Bit RGB |
| Compatibility | Arduino and similar development boards |
| Controller Type | ST7272A |
| Connection Type | 54-Pin FFC |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
