High-Contrast 16x2 FSTN (-) Black Character LCD with RGB Backlight
The NHD-0216K3Z-NS(RGB)-FBW-V3 is an excellent choice for your next project. It features a FSTN (-) Black display with a RGB backlight and transmissive screen for great visibility in any lighting condition. Red, green, and blue LEDs work in tandem to allow for a wide range of custom color options to suit any project and aesthetic. Its wide 6:00 optimal view also means it's readable from most directions. The powerful PIC 16F690 controller makes working with its Serial SPI, I2C, or RS232 (TTL) interface options easy and pairing the display with Arduino and similar development boards fast, so you can focus your time where it matters most.
This display runs on a standard 5.0V supply, operates between -20° and 70° Celsius, and is RoHS compliant, making it environmentally friendly, even if the environment might not be friendly to it.
NHD-0216K3Z-NS(RGB)-FBW-V3: Technical Specifications
| Size | 2 Row | 16 Characters |
|---|---|
| Display Format | 16x2 |
| Total Characters | 32 |
| Display Type | FSTN (-) Black |
| Display Mode | Transmissive |
| Optimal View | 06:00 |
| Outline L x W x H | 80mm x 36mm x 13.5mm |
| Viewing Area L x W | 64.5mm x 16.4mm |
| Active Area L x W | 55.65mm x 10.98mm |
| Supply Voltage | 5V |
| Backlight | RGB |
| Interface | Serial SPI, I2C, or RS232 (TTL) |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | PIC 16F690 |
| Connection Type | 2.54mm Pitch thru pins |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
4 Reviews
-
완벽한
It was perfect
-
Product met our needs exactly.
Product met our needs exactly.
-
excellent documentation, custom colors are awesome.

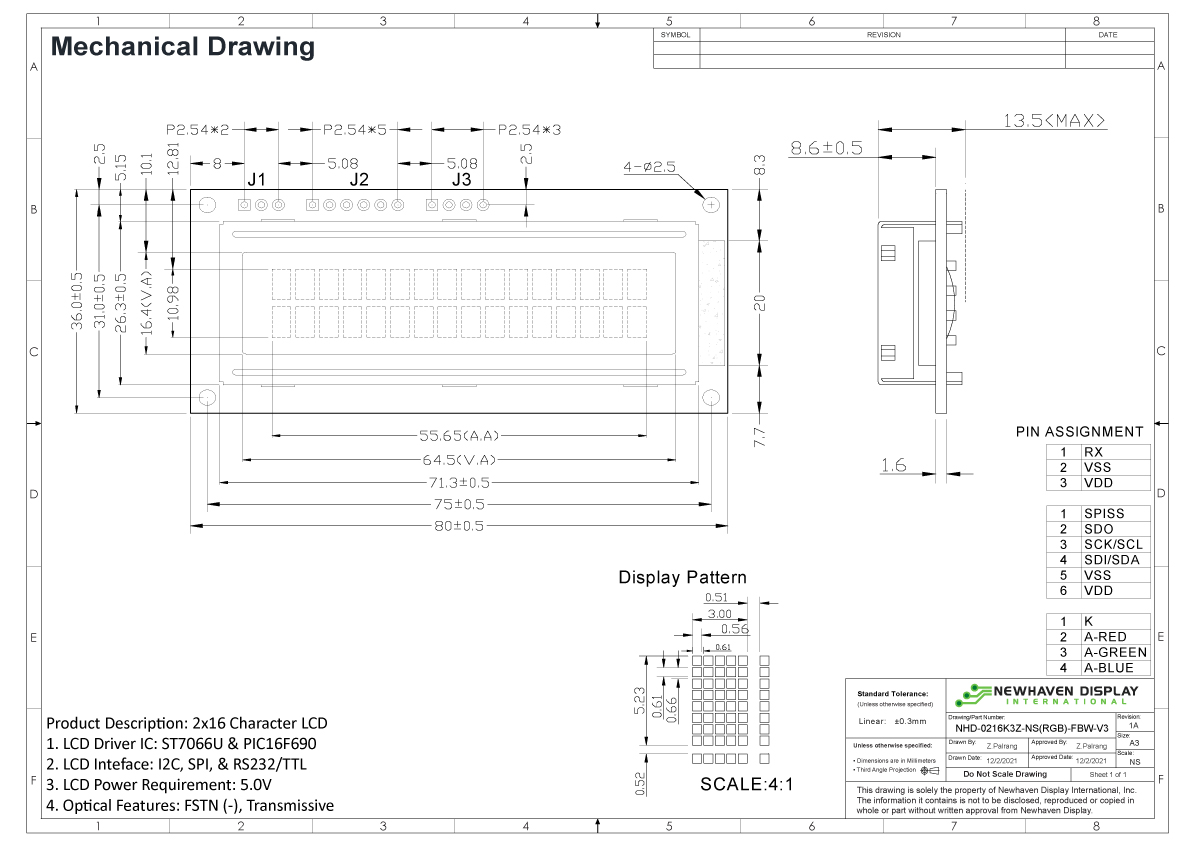

Happy there is a cad drawing with it! Product was an excellent choice in my project, looks great and I love the custom colors I can achieve with it.
-
