High-Contrast 16x2 STN (-) Blue Character LCD with White Backlight
The NHD-C0216CZ-NSW-BBW-3V3 is an excellent choice for your next project. It features a STN (-) Blue display with a White backlight and transmissive screen for great visibility in any lighting condition. Its wide 6:00 optimal view also means it's readable from most directions. The powerful ST7032 controller makes working with the Serial interface easy and pairing the display with Arduino and similar development boards fast, so you can focus your time where it matters most.
This display runs on a low 3.3V supply, operates between -20° and 70° Celsius, and is RoHS compliant, making it environmentally friendly, even if the environment might not be friendly to it.

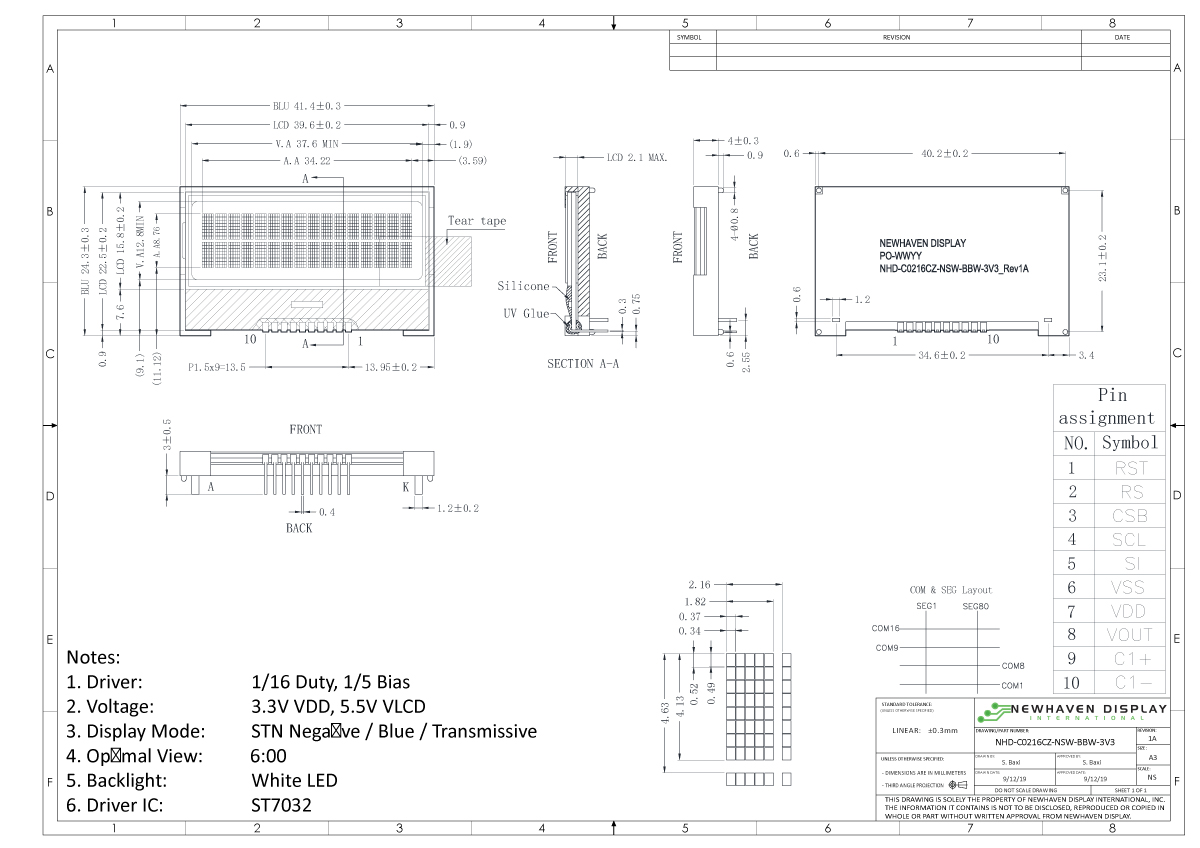

NHD-C0216CZ-NSW-BBW-3V3: Technical Specifications
| Size | 2 Row | 16 Characters |
|---|---|
| Display Format | 16x2 |
| Total Characters | 32 |
| Display Type | STN (-) Blue |
| Display Mode | Transmissive |
| Optimal View | 06:00 |
| Outline L x W x H | 41.4mm x 24.3mm x 7mm |
| Viewing Area L x W | 37.6mm x 12.8mm |
| Active Area L x W | 34.22mm x 8.76mm |
| Supply Voltage | 3.3V |
| Backlight | White |
| Interface | Serial |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7032 |
| Connection Type | 1x10 Pins with 1.5mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
