128X32 그래픽 COG LCD | 블루 사이드 백라이트가 있는 FSTN+ 디스플레이

NHD-C12832A1Z-FSB-FBW-3V3 | 모노크롬 그래픽 COG | 128x32픽셀 | 반투과형 LCD | 측면 블루 백라이트 | FSTN(+) 포지티브 디스플레이

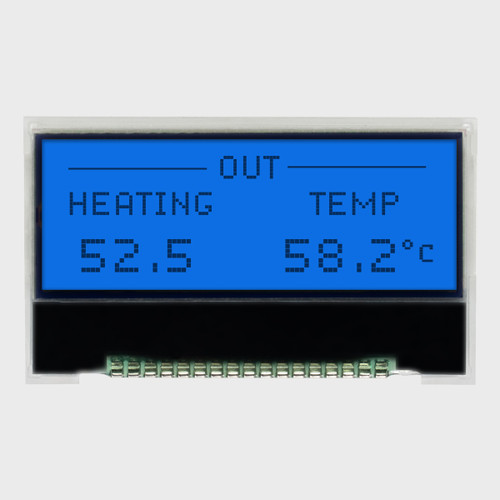

This Newhaven 128x32 graphic Chip-On-Glass (COG) Liquid Crystal Display module shows dark black pixels illuminated on a vibrant blue background. This transflective LCD display is engineered to provide optimal visibility under a wide range of lighting conditions in multiple different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker settings, a strong backlight is built into the LCD to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures the display is always easy to read, regardless of the lighting conditions.

This graphic LCD display module is fully compatible with Arduino, which allows for seamless connection with other electronic systems for a wide range of applications. Designed to withstand difficult operating conditions, the NHD-C12832A1Z-FSB-FBW-3V3 model operates exceptionally when used within a temperature range from -20 to 70 degrees Celsius. The optimal viewing angle for this LCD is 6:00, it operates at 3V supply voltage, and it’s RoHS compliant.

LCD Product Specifications

Display Format:	128 x 32 Pixels
Display Type:	FSTN (+)
Display Mode:	Transflective
Optimal View	6:00
Outline L x W x H:	41.4mm x 24.3mm x 4mm
Viewing Area L x W:	36.0mm x 12.0mm
Active Area L x W:	31.98mm x 7.98mm
Supply Voltage:	3.0V
Backlight:	Side Blue
Interface:	4-Wire SPI
Compatibility:	Arduino and similar development boards
Controller Type:	ST7565R
Connection Type:	1x17 pins with 1.5mm pitch
Operating Temperature:	-20°C ~ 70°C
Storage Temperature:	-30°C ~ 80°C

LCD Custom Solutions

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

---

Connector Customization

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

---

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.

---

PCB Modifications

Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.
