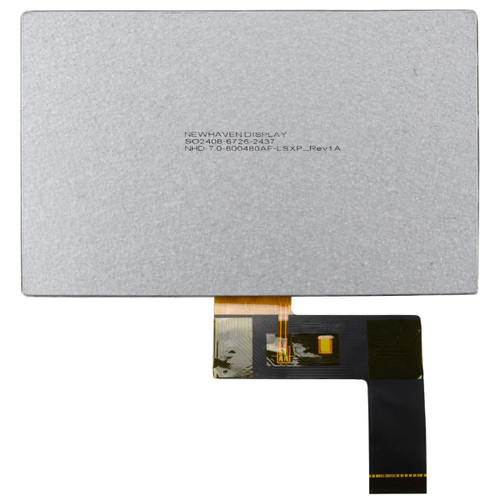

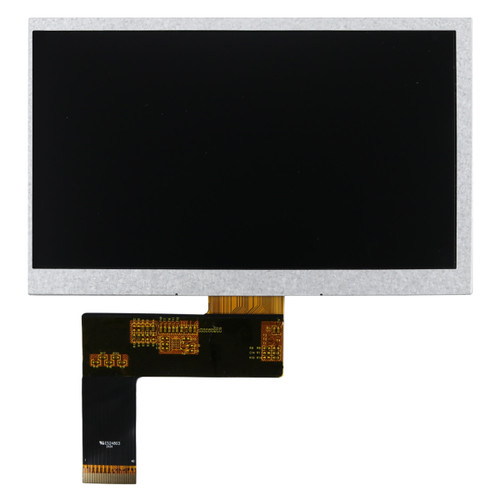

Pantalla IPS TFT de 7 pulgadas de alto brillo con interfaz LVDS para unas imágenes nítidas sin necesidad de tocarla
This 7.0" IPS TFT LCD delivers 800x480 resolution with vibrant color, wide viewing angles, and high contrast for consistent, high-quality visuals. Its 1,000-nit LED backlight ensures the screen remains readable in indoor, outdoor, and direct sunlight environments.
Designed without touch functionality, this display is ideal for projects that require premium visual output with reduced power consumption and simplified implementation. Capacitive and resistive touchscreen options are available separately for added interactivity.
The LVDS interface and 40-pin FFC connection simplify integration, while EMI shielding provides reliable performance in electrically noisy environments. Powered by a built-in ST7277 IC controller, this module ensures smooth graphics rendering and dependable operation. Like all Newhaven Display products, it is RoHS compliant and built to meet strict environmental and safety standards.
NHD-7.0-800480AF-LSXP: Especificaciones técnicas
| Size | 7" Diagonal |
|---|---|
| Resolution | 800x480 Pixels |
| Colors | 16.7M |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | None |
| Outline L x W x H | 165mm x 104mm x 3.5mm |
| Viewing Area L x W | 156.7mm x 89.1mm |
| Supply Voltage | 3.3V |
| Luminance | 1,000 Nits |
| Interface | LVDS |
| Compatability | Raspberry Pi and other advanced computing platforms |
| Controller/Driver | ST7277 |
| Connection Type | 40-Pin 0.5mm Pitch FFC |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | No |
| EMI Shielding | Yes |
