2.4 inch High-Brightness IPS TFT LCD with Capacitive Touchscreen

(No reviews yet) Write a Review
2.4" Diagonal | 240x320 Pixels
Display Type:
Capacitive with I2C Interface
SPI / Parallel
CTP Controller:
  • 2.4 inch IPS LCD Capacitive Touchscreen high-brightness display front cropped
  • 2.4" IPS TFT LCD Capacitive Touchscreen high-brightness display front ON

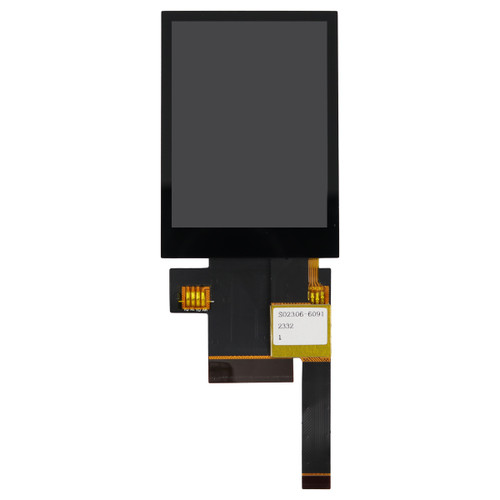

  • 2.4 inch LCD IPS Capacitive Touchscreen high-brightness display front OFF

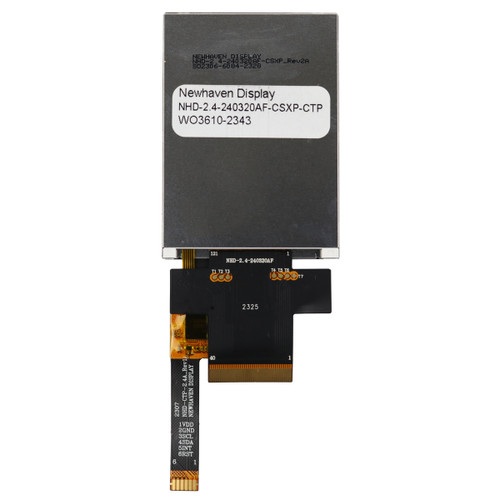

  • 2.4 inch IPS Capacitive Touchscreen high-brightness display back
  • Drawing Specification for NHD-2.4-240320AF-CSXP-CTP

NHD-2.4-240320AF-CSXP-CTP | High-Brightness 2.4" IPS TFT LCD | Capacitive Touchscreen

This 2.4” IPS TFT display delivers high brightness with 1020 nits and wide viewing angles suitable for indoor and outdoor use, including direct sunlight. It has a resolution of 240x320 pixels and operates with a power supply of 3.3V. This display offers stunning sharpness, superior color reproduction, better image consistency, and high contrast with full viewing angles due to the IPS technology built into this Liquid Crystal Display. This 2.4-inch LCD has a capacitive touchscreen with a built-in I2C interface and FocalTech FT5426 controller, allowing users multi-touch functionality and more intuitive interaction with precise touch recognition and enhanced responsiveness for interactive applications.

2.4" LCD with SPI Communication Interface and EMI Shielding

The TFT display offers two interface options: 8-bit/16-bit 8080-II parallel interface or 3-wire SPI interface, selected according to user requirements. This display is compatible with various Arduino models and ensures seamless integration into your existing projects. Additionally, it features a 40-pin FFC, 0.5mm pitch connection style (6-pin 1.0mm pitch for the touch panel), making the electrical connection hassle-free. Powered by the ST7789VI controller, this TFT display delivers exceptional performance and reliability.

This 2.4 inch IPS TFT has been designed with the same mechanical footprint as our standard TN display. This makes the IPS display compatible with existing overlays, enclosures and other assembly components that are presently used with the TN display. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

This display is well suited for medical devices, PLCs, automation, controls, IoT, smart home devices, industrial equipment, outdoor equipment, aviation, marine, automotive panels and dashboards, and many other applications.

Product Overview

2.4 Inch TFT LCD Product Specifications

Display Format: 262K colors; 240x320 Pixels
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full View
Touchscreen: Capacitive
Outline L x W x H: 42.8mm x 59.91mm x 4.13mm
Viewing Area L x W: 37.72mm x 49.96mm
Active Area L x W: 36.72mm x 48.96mm
Supply Voltage: 3.3V
Luminance: 1020 cd/m2
Interface: 8-bit/16-bit 8080-II Parallel or 3-wire SPI
Controller Type: ST7789VI
Compatibility: Arduino and similar development boards
Connection Type: 40 pin FFC (CTP: 6 pin FFC)
Operating Temperature: -20°C ~ 70°C
Storage Temperature: -30°C ~ 80°C
Built-in Mounting: None
Added Feature: EMI Shielding
