7" bright resistive touch IPS TFT display with integrated graphics controller for intuitive user interfaces
This 7.0" TFT LCD delivers crisp 800x480 resolution and features a 780-nit LED backlight, making it fully readable even in direct sunlight. Built on IPS technology, it offers accurate color, high contrast, and consistent image quality from every viewing angle. The 4-wire resistive touchscreen provides reliable, straightforward interaction, making it a smart choice for medical, industrial, and kiosk applications that require touch functionality without the complexity of multi-touch.
A built-in FT812 Embedded Video Engine (EVE) powers graphics, touch, and audio from a single chip, streamlining development while reducing the need for additional components. The display comes preloaded with 1MB of memory and built-in widgets including gauges, buttons, and sliders-ideal for building interactive interfaces right out of the box.
The upgraded FPC with EMI shielding ensures better signal integrity, while the Single/Dual/Quad SPI interface offers flexible connectivity with low-cost MCUs. Easily pair this module with Arduino boards using the NHD-FT81X-SHIELD. Four mounting holes sized for M3 screws make installation simple. All Newhaven Display products are RoHS and REACH compliant and meet rigorous environmental and safety standards.
NHD-7.0-800480FT-CSXP-T: Technical Specifications
| Size | 7" Diagonal |
|---|---|
| Resolution | 800x480 Pixels |
| Color | 24-Bit True Color |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | 4-Wire Resistive |

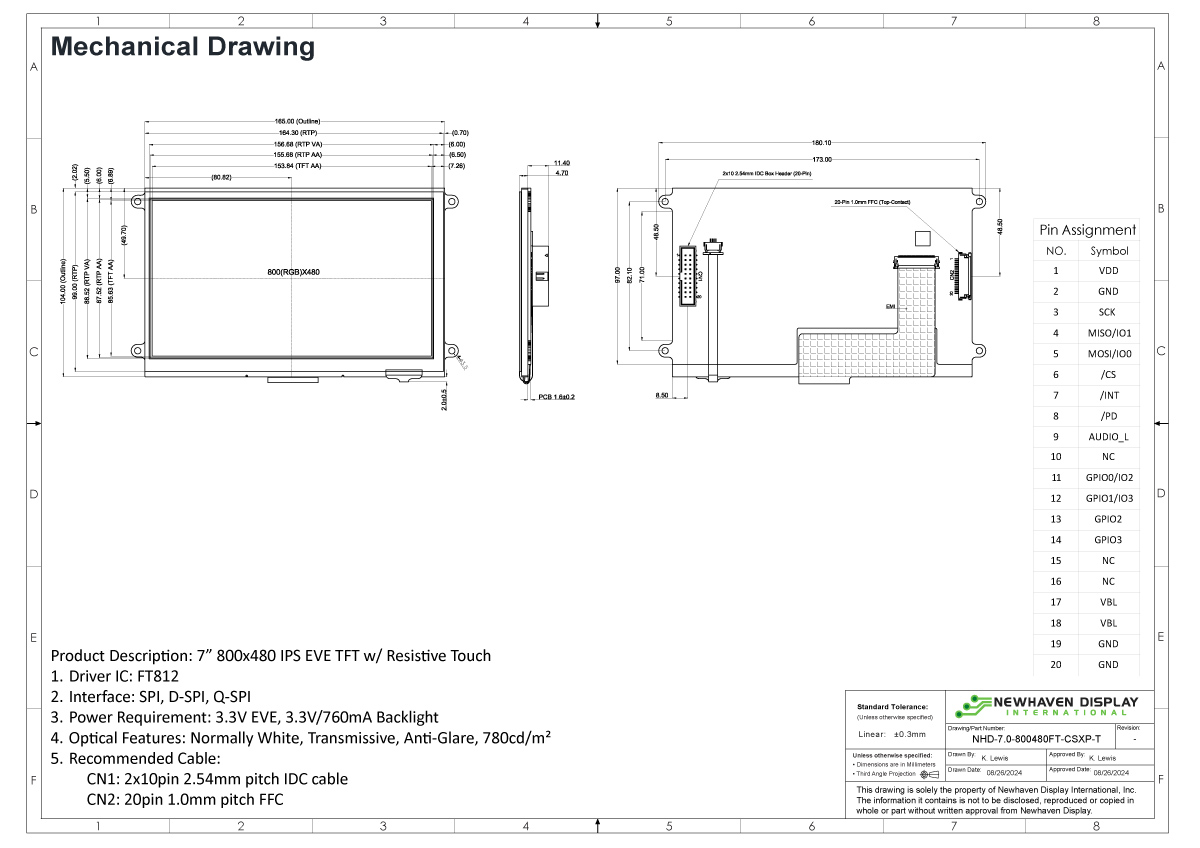

| Outline L x W x H | 180.1mm x 104mm x 16.1mm |
| Viewing Area L x W | 154.9mm x 86.85mm |
| Active Area L x W | 153.84mm x 85.63mm |
| Supply Voltage | 3.3V |
| Luminance | 780 Nits |
| Interface | SPI/D-SPI/Q-SPI |
| Compatibility | Arduino and similar development boards |
| Controller Type | FT812 Embedded Video Engine |
| Connection Type | 20-pin FFC Connector, 20-Pin Box Header |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | 3.5mm Mounting Holes for M3 Screws |
| Built-In EMI Shielding | Yes |
