High-Contrast 20 x 4 Blue Character OLED Module
This 20 x 4 character OLED display is a great choice to add crisp text and numeric readouts to your project. It boasts easy-to-read monochrome text on a black background, providing excellent high-contrast visuals at any viewing angle. The blue OLED display is compatible with Arduino or similar development boards, utilizing a Proprietary controller with Serial/Parallel interface for seamless integration and ease of use.
The NHD-0420DZW-AB5 is designed to withstand extremes, operating in a temperature range from -40° to 80° C, so you can push your product to its limits without compromise or need for additional heating elements. It runs on 5.0V power, and all components are RoHS compliant for environmental safety.
NHD-0420DZW-AB5: Technical Specifications
| Size | 4 Row | 20 Characters |
|---|---|
| Display Format | 20 x 4 |
| Total Characters | 80 |
| Display Type | Character OLED Module |
| Display Color | Blue |

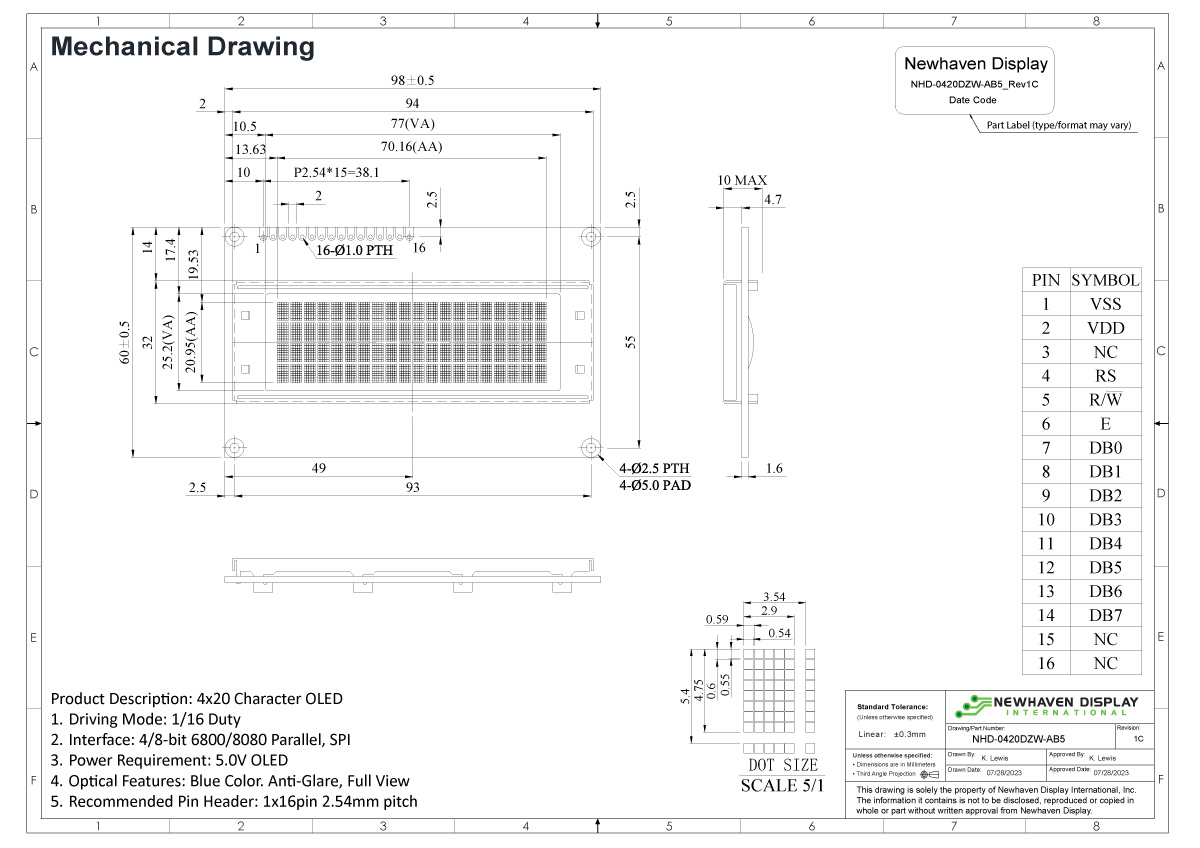

| Outline L x W x H | 98mm x 60mm x 10mm |
| Viewing Area L x W | 77mm x 25.2mm |
| Active Area L x W | 70.16mm x 20.95mm |
| Character Height | 4.75mm |
| Supply Voltage | 5.0V |
| Interface | Serial / Parallel |
| Compatibility | Arduino or Similar Development Boards |
| Controller Type | Proprietary |
| Connection Type | 1x16 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -40° ~ 80° C |
| Storage Temperature | -40° ~ 85° C |
2 Recenzje
-
Clear image
Recommended. We have integrated this display in one of our products with no issues so far. The image quality is great. Great customer support.
-
Clear picture
Very good and clear picture.
