Space-Saving 128x32 Pixel FSTN+ Gray Graphic LCD with White Backlight
Perfect for your next project, the NHD-C12832DA-FSW-FBW-3V3 provides a clear way to show data and simple monochrome graphics. It features a 128x32 pixel FSTN+ Gray LCD panel with White backlight and a transflective screen for excellent visibility. The 6:00 optimal viewing angle keeps information clearly legible from multiple directions. With a ST7565R controller and Serial/Parallel interface, it is easy to connect to Arduino and similar development boards.
This display is a chip-on-glass design, which allows you more flexibility in incorporating it into your design because it is not bonded to a PCB. It runs on low 3.0V power for more efficient applications. It operates between -20° and 70° C, making it dependable in extreme conditions, and it is RoHS compliant for environmental safety.
NHD-C12832DA-FSW-FBW-3V3: Technical Specifications
| Display Format | 128x32 Pixels |
|---|---|
| Display Type | FSTN (+) Gray |
| Display Mode | Transflective |
| Optimal View | 06:00 |

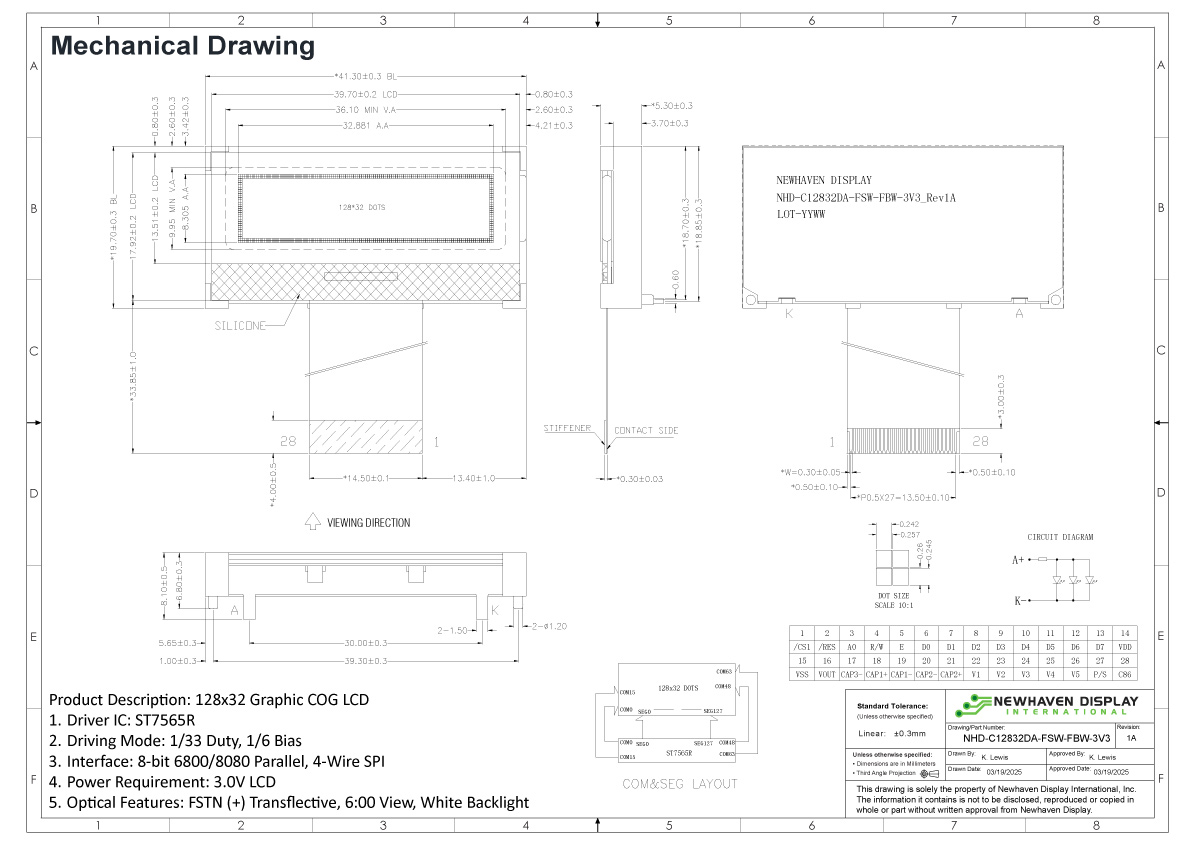

| Outline L x W x H | 41.3mm x 19.7mm x 5.3mm |
| Viewing Area L x W | 36.1mm x 9.95mm |
| Active Area L x W | 32.881mm x 8.305mm |
| Supply Voltage | 3.0V |
| Backlight | White |
| Interface | Serial / Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7565R |
| Connection Type | 28-Pin FPC with 0.5mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
