Versatile 122x32 Pixel STN+ Gray Graphic LCD with White Backlight
The NHD-12232AZ-FSW-GBW delivers crisp visuals and is ideal for projects needing text or basic graphics. It features a 122x32 pixel STN+ Gray LCD display, White backlight, and a transflective screen for reliable readability under various lighting conditions. Thanks to its 6:00 viewing angle, it offers consistent clarity from different directions. Its SBN1661G_M18controller and Parallel interface ensure seamless compatibility with Arduino and similar development systems.
The display runs on 5.0V power, making it easy to work with. It operates between -20° and 70° C, making it dependable in extreme conditions, and it is RoHS compliant for environmental safety.
NHD-12232AZ-FSW-GBW: Technical Specifications
| Display Format | 122x32 Pixels |
|---|---|
| Display Type | STN (+) Gray |
| Display Mode | Transflective |
| Optimal View | 06:00 |

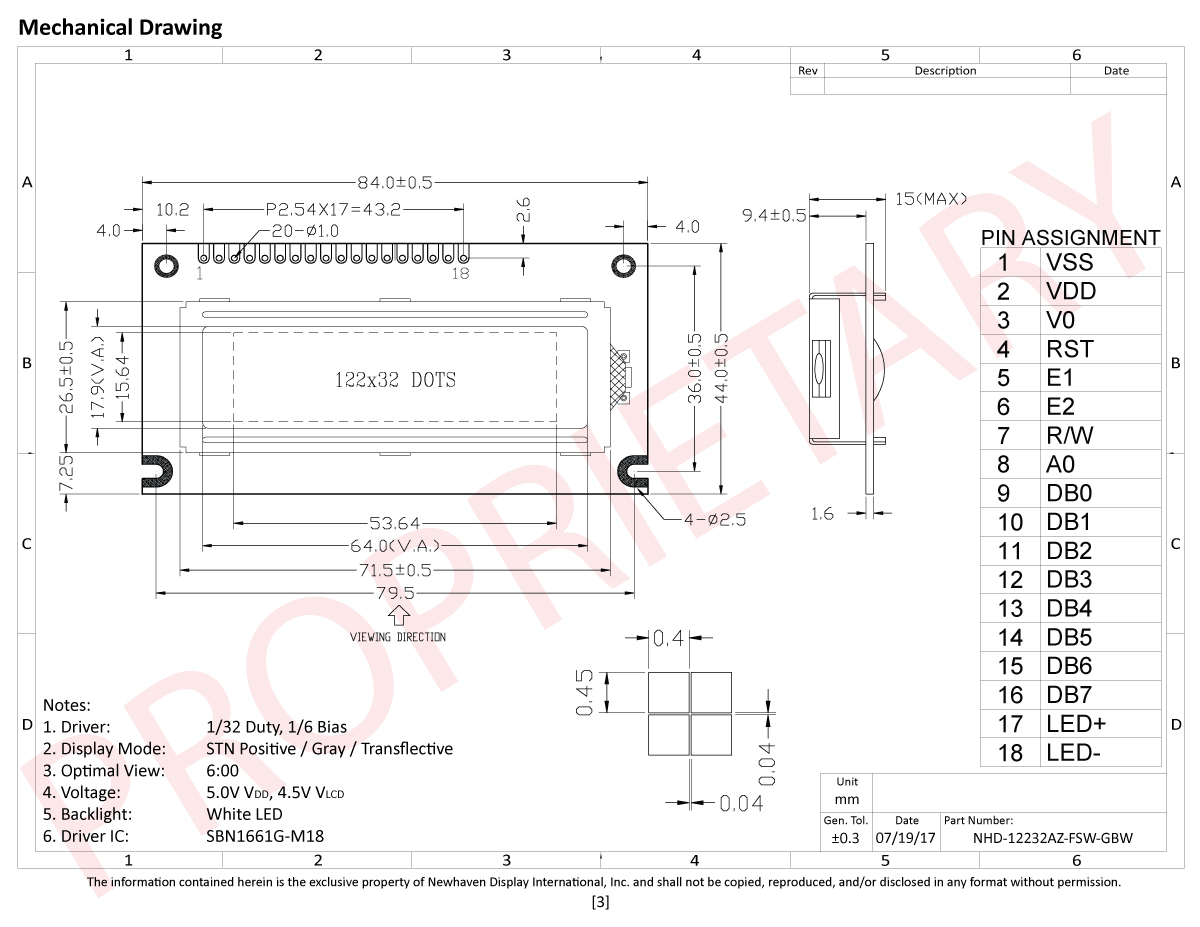

| Outline L x W x H | 84mm x 44mm x 15mm |
| Viewing Area L x W | 64mm x 17.9mm |
| Active Area L x W | 53.64mm x 15.64mm |
| Supply Voltage | 5.0V |
| Backlight | White |
| Interface | Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | SBN1661G_M18 |
| Connection Type | 1x18 thru hole with 2.54mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
