Power-Saving Full Color 1.5" Graphic OLED Module
The NHD-1.5-128128UGC3 is built with longevity in mind. It features a built-in sleep mode to save on power and extend the life of its striking 128x128 pixel display. Great for producing vibrant images and graphics, it can produce 262K colors for superior accuracy at any viewing angle. It is excellent for projects using Arduino or similar development boards because its SSD1351 controller uses Serial or Parallel interfacing.
It operates between -40° and 70°C to withstand the most demanding environments, runs on a low 3.3 volts, and is RoHS compliant for environmental safety.
NHD-1.5-128128UGC3: Technical Specifications
| Size | 1.5" Diagonal |
|---|---|
| Display Format | 128x128 Pixels |
| Display Type | Graphic OLED Glass |
| Display Color | Full Color; 262K Colors |

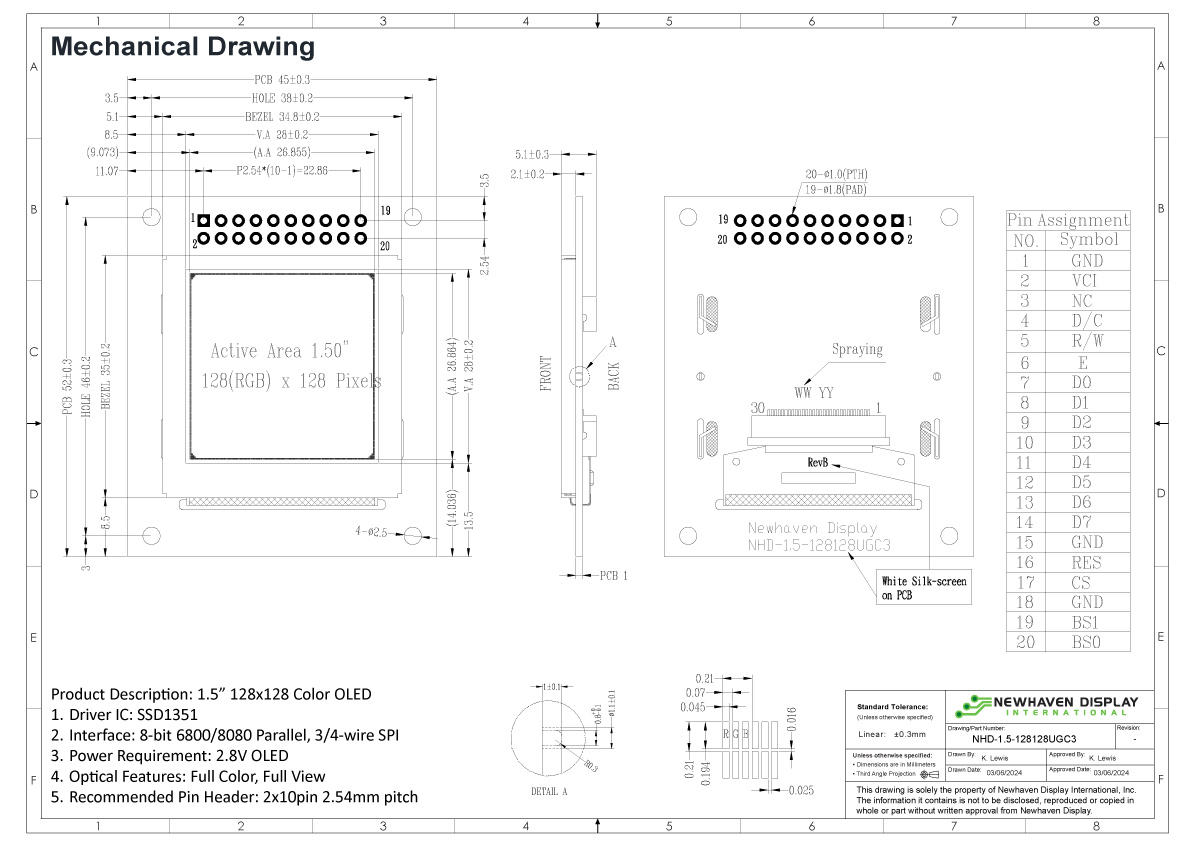

| Outline L x W x H | 45mm x 52mm x 5.1mm |
| Viewing Area L x W | 28mm x 28mm |
| Active Area L x W | 26.855mm x 26.864mm |
| Supply Voltage | 3.3V |
| Interface | Serial / Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | SSD1351 |
| Connection Type | 2x10 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -40° ~ 70°C |
| Storage Temperature | -40° ~ 85°C |
| Additions | Built-in Sleep Mode |
2 Recenzje
-
compatible with Arduino!
Easy to use with Arduino, all around nice unit. Thanks for the example code! Great supporting documents.
-
Good for teaching
Good little OLED for teaching and learning. Helpful documentation and resources in their support center.
