7" ultra-bright IPS TFT display with built-in graphics engine for vivid, touch-free interfaces
Designed for high-performance visual applications, this 7.0" IPS TFT LCD delivers stunning 800x480 resolution with rich color accuracy and a wide viewing angle. Its ultra-bright 1,000-nit LED backlight makes it fully sunlight-readable, ideal for outdoor and high-glare environments. Built with an upgraded EMI-shielded FPC and engineered for projects that don't require touch input, this module delivers premium image quality with simplicity.
Powered by the Bridgetek FT812 Embedded Video Engine, the display manages graphics and audio through a single onboard controller. With 1MB of integrated memory and a suite of built-in widgets like gauges, sliders, and clocks, you can quickly develop interactive UIs while minimizing system load.
Compatible with Arduino using the NHD-FT81X-SHIELD, this module connects easily via Single, Dual, or Quad SPI. Four 3.5mm mounting holes allow for standard M3 screw installation. Capacitive and resistive touchscreen options are available separately if future interactivity is needed. As always, this Newhaven Display module is RoHS and REACH compliant and built to meet strict environmental standards.
NHD-7.0-800480FT-CSXP: Technical Specifications
| Size | 7" Diagonal |
|---|---|
| Resolution | 800x480 Pixels |
| Color | 24-Bit True Color |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | None |

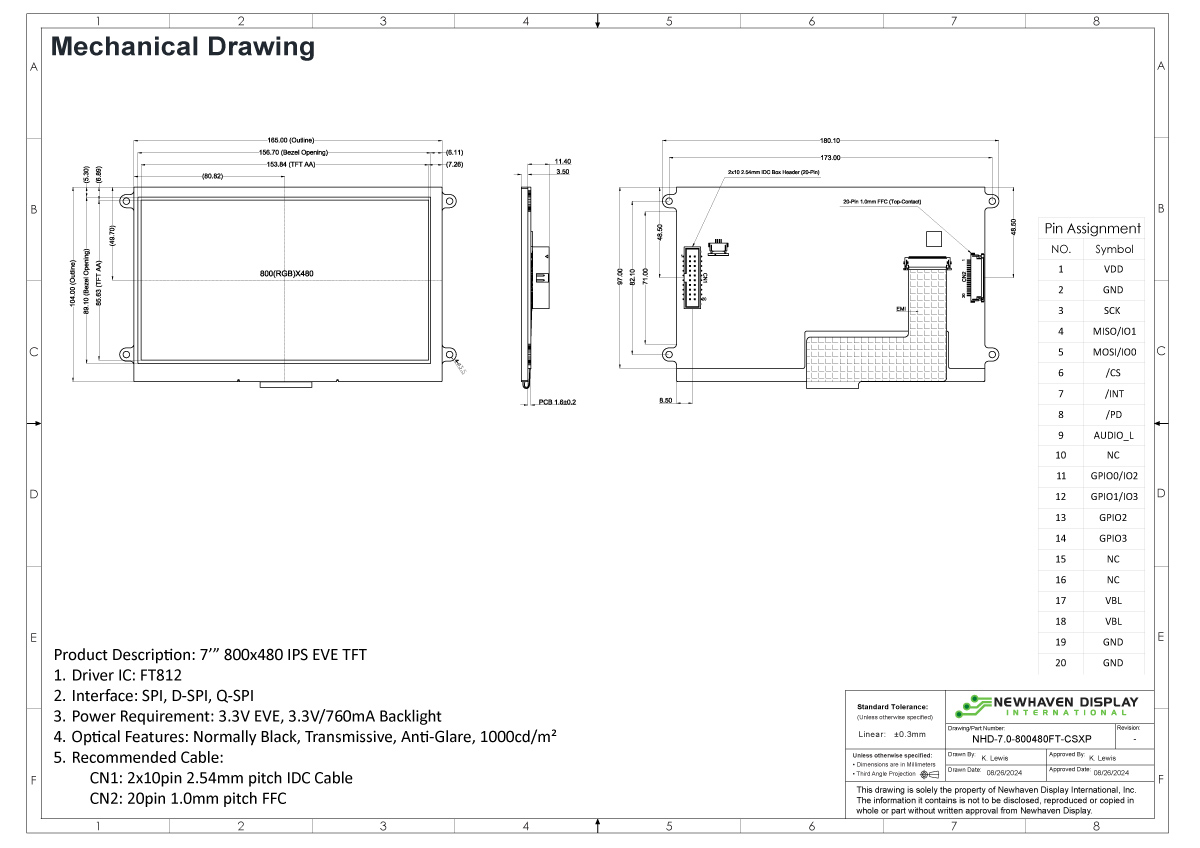

| Outline L x W x H | 180.1mm x 104mm x 14.9mm |
| Viewing Area L x W | 154.9mm x 86.85mm |
| Active Area L x W | 153.84mm x 85.63mm |
| Supply Voltage | 3.3V |
| Luminance | 1,000 Nits |
| Interface | SPI/D-SPI/Q-SPI |
| Compatibility | Arduino and similar development boards |
| Controller Type | FT812 Embedded Video Engine |
| Connection Type | 20-pin FFC Connector, 20-Pin Box Header |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | 3.5mm Mounting Holes for M3 Screws |
| Built-In EMI Shielding | Yes |
