Striking Full Color 0.95" Graphic OLED Glass
The NHD-0.95-9664G is ideal for showing vibrant full-color graphics when space is at a premium. The 65k color screen is small in size, but it allows you greater flexibility in how you mount it because it isn't bonded to a PCB. A versatile SSD1331 controller drives its passive matrix 96x64 pixel OLED display and is easy to work with because of its Serial or Parallel interface, making it a great choice when working with Arduino and similar development boards.
It operates between -40° and 70°C to withstand the most demanding environments, runs on 3.3 volts, and is RoHS compliant for environmental safety.
NHD-0.95-9664G: Technical Specifications
| Size | 0.95" Diagonal |
|---|---|
| Display Format | 96x64 Pixels |
| Display Type | Graphic OLED Glass |
| Display Color | Full Color; 65K Colors |

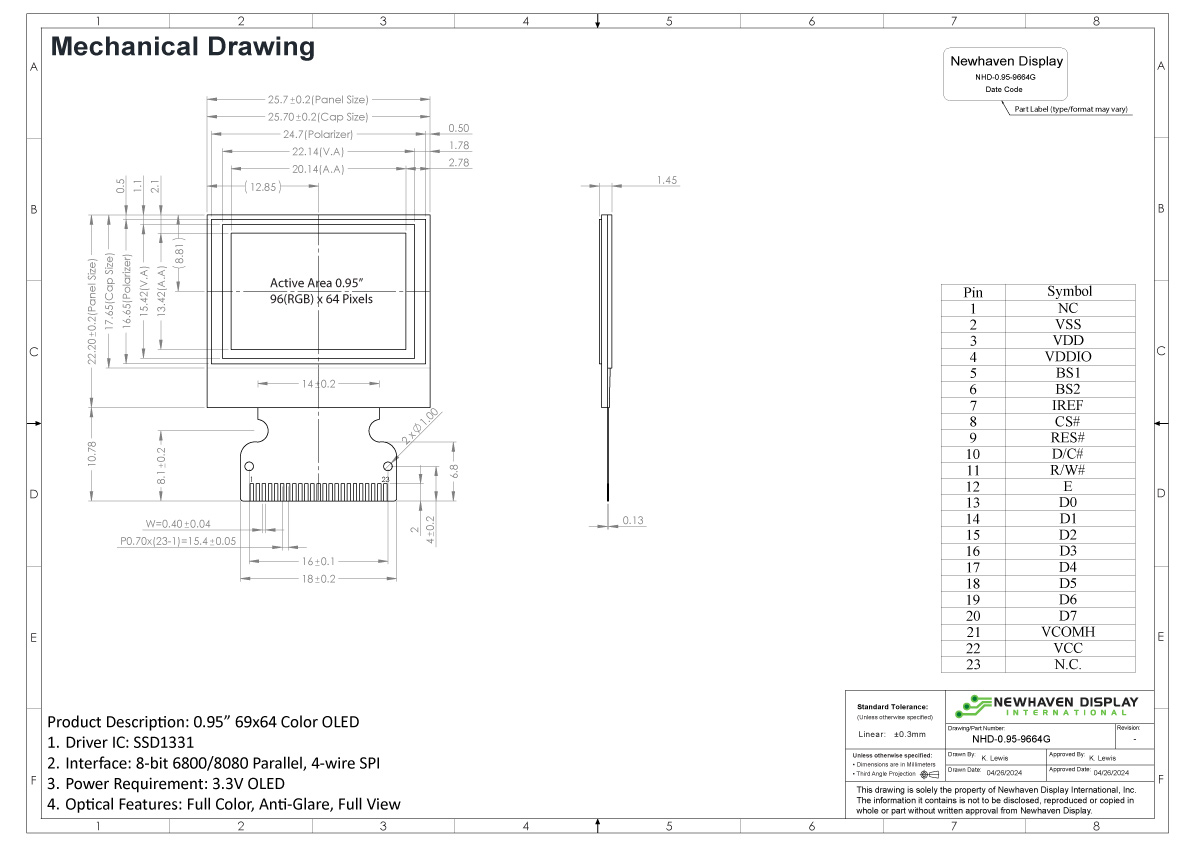

| Outline L x W x H | 25.7mm x 22.2mm x 1.45mm |
| Viewing Area L x W | 22.14mm x 15.42mm |
| Active Area L x W | 20.14mm x 13.42mm |
| Supply Voltage | 3.3V |
| Interface | Serial / Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | SSD1331 |
| Connection Type | 23-Pin FFC / hot bar solder with 0.70 Pitch |
| Operating Temperature | -40° ~ 70°C |
| Storage Temperature | -40° ~ 85°C |
