Versatile Chip-On-Glass Breakout Board with Various Pitch SMD Pads
The NHD-PCB40 is a simple breakout board with huge development potential. With a 2.54mm pitch 2x20 thru-hole connection point and a large assortment of various pitch SMD pads, this adaptor board serves as a great way to interface with many of Newhaven's chip-on-glass (COG) LCDs.
NHD-COG14-36: Technical Specifications
| Function | SMD Breakout Board |
|---|---|

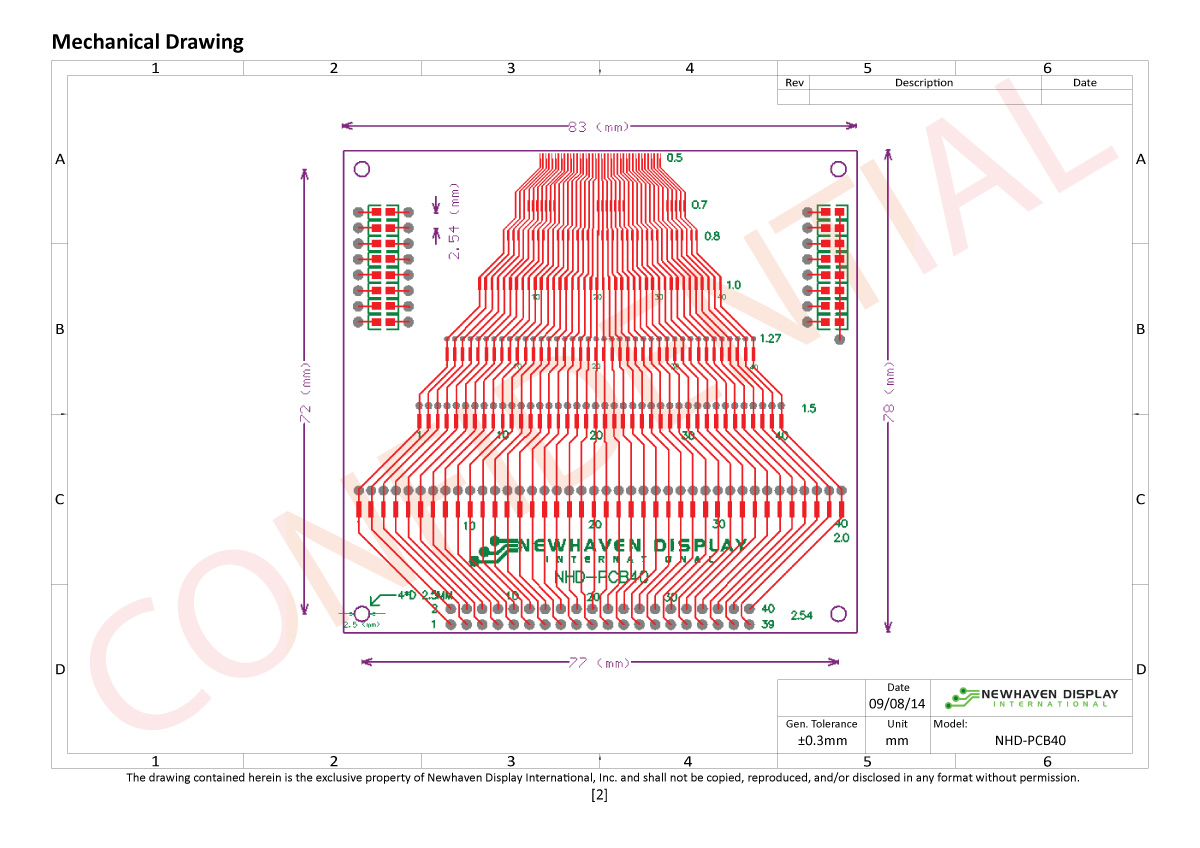

| Outline L x W | 83mm x 78mm |
| Connection Type | Various Pitch SMD Pads | 2x20 Thru-hole with 2.54mm Pitch |
