Vibrant 2.8" IPS TFT LCD with intuitive resistive touch and sunlight readability.
This 2.8" IPS TFT LCD delivers 240x320 resolution with an 800-nit LED backlight, offering vivid colors, high contrast, and wide viewing angles for clear visuals even in bright sunlight. The 4-wire resistive touchscreen provides simple, intuitive interaction for portrait-oriented applications.
Choose between 8- or 16-bit 8080-II parallel interface or SPI for flexible Arduino integration. A 40-pin FFC ZIF connector ensures reliable, hassle-free installation, while the ST7789VI controller supports smooth graphics and consistent performance.
RoHS compliant and engineered for dependable operation, this display is ideal for interactive embedded projects that need high-quality visual output with basic touch functionality.
NHD-2.8-240320AF-CSXP-FT: Technical Specifications
| Size | 2.8" Diagonal |
|---|---|
| Resolution | 240x320 Pixels |
| Colors | 262K |
| Display Type | Sunlight Readable IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | 4-Wire Resistive |

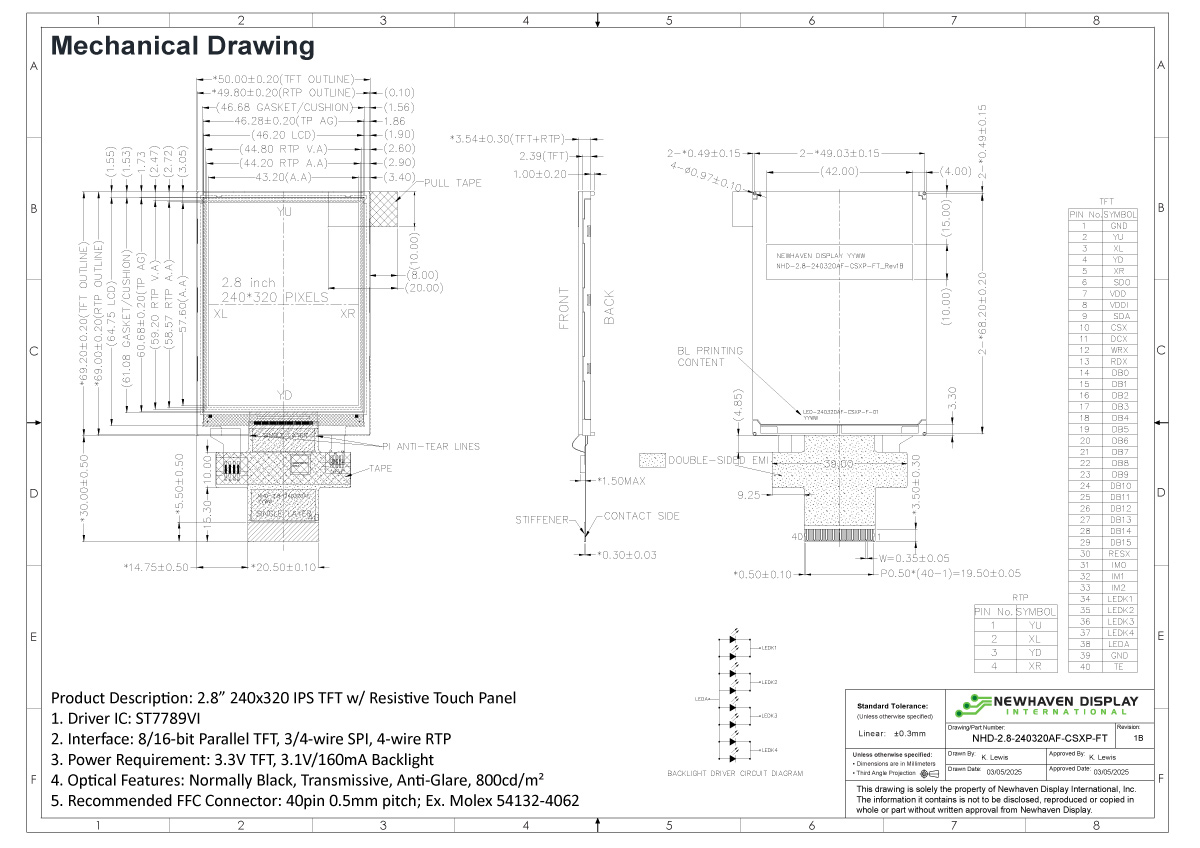

| Outline L x W x H | 50mm x 69.2mm x 4.54mm |
| Viewing Area L x W | 44.8mm x 59.2mm |
| Active Area L x W | 43.2mm x 57.6mm |
| Supply Voltage | 3.3V |
| Luminance | 800 Nits |
| Interface | 8-bit or 16-bit Parallel or 3/4-Wire SPI |
| Compatibility | Arduino or similar development boards |
| Controller Type | ST7789VI |
| Connection Type | 40-Pin FFC ZIF |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
