Crisp 2.7" Monochrome Yellow Graphic OLED Module
Monochrome yellow graphics on the NHD-2.7-12864WDY3 deliver sharp contrast against its deep black background, making it an ideal choice to highlight your message with clarity. Featuring a 128x64 pixel display, it offers excellent readability from every angle due to its passive-matrix OLED technology. Designed for quick integration with projects using Arduino or similar development boards, the SSD1322 controller supports seamless connectivity via its versatile Serial or Parallel interface options.
It operates between -40 and 85°C to withstand the most demanding environments, runs on 3.3 volts, and is RoHS compliant for environmental safety.
NHD-2.7-12864WDY3: Technical Specifications
| Size | 2.7" Diagonal |
|---|---|
| Display Format | 128x64 Pixels |
| Display Type | Graphic OLED Module |
| Display Color | Monochrome Yellow |

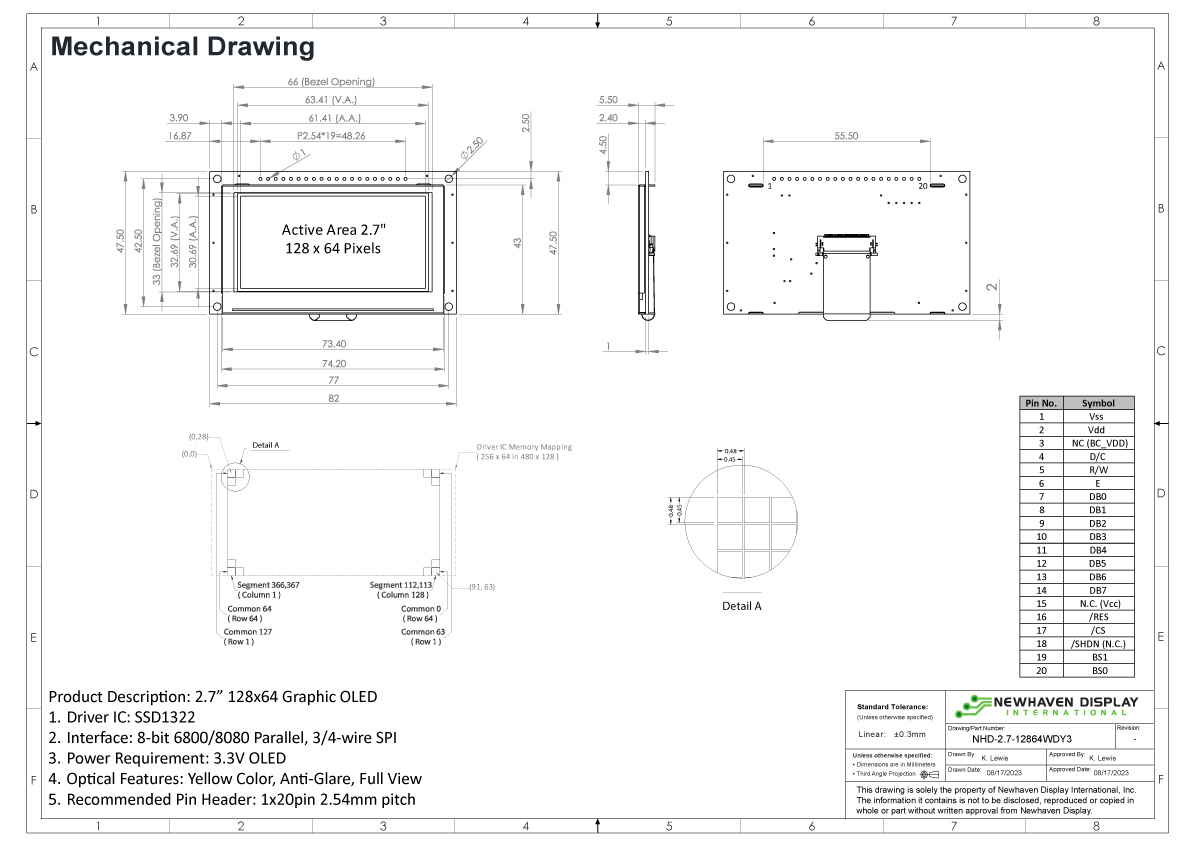

| Outline L x W x H | 82mm x 47.5mm x 5.5mm |
| Viewing Area L x W | 63.41mm x 32.69mm |
| Active Area L x W | 61.41mm x 30.69mm |
| Supply Voltage | 3.3V |
| Interface | Serial / Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | SSD1322 |
| Connection Type | 1x20 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -40° ~ 85°C |
| Storage Temperature | -40° ~ 85°C |
1 Rezension
-
works great looks great
I am limited on pins so I am using I2C interface. Great option for my low amount in I/Os. display super bright too
