In product development, simplicity is not a limitation. It is a design advantage. LCD dot matrix displays reflect this mindset by focusing on clear, reliable information delivery without visual excess. They are trusted by engineers who prioritize performance, stability, and efficiency in systems that need to work flawlessly, every time.

These displays continue to support interfaces in environments where durability, longevity, and low power consumption are essential. At Newhaven Display, we’ve seen dot matrix LCDs consistently meet the demands of real-world applications with precision and dependability. They remain a go-to solution for purposeful, high-performing products.

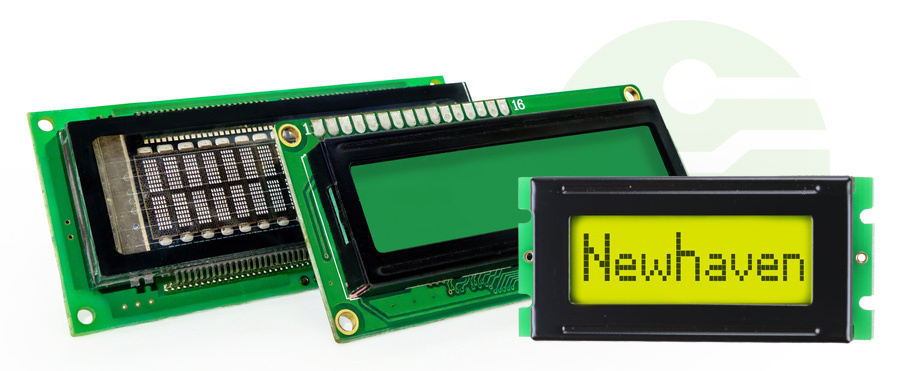

What Is an LCD Dot Matrix?

An LCD dot matrix is a type of display that uses a grid of pixels to show characters, symbols, or simple graphics. Each pixel is controlled individually, allowing for flexible visual output within a defined area. These displays are available in both character and graphic formats, depending on the design requirements.

Unlike segmented LCDs, which can only display fixed icons or numbers, dot matrix displays are far more versatile. Their grid structure allows for custom messages, multilingual text, and basic graphic elements, making them a reliable choice for interfaces that need dynamic content without high-resolution visuals.

Most dot matrix LCDs are monochrome, and their straightforward architecture makes them easy to integrate into space-constrained designs, where clarity and long-term performance are key.

How Dot Matrix LCDs Work

At the core of a dot matrix LCD is a passive matrix of conductive traces that intersect to form individually addressable pixels. When voltage is applied at a specific row-column intersection, the liquid crystal at that point changes alignment, modulating light to create visible output. This process relies on a backlight or reflective layer to enhance contrast and visibility.

A display controller rapidly cycles through the rows and columns, updating each pixel as needed. Character displays group pixels into fixed patterns, while graphic displays allow freeform control across the entire screen. The result is a dependable, low-power system that handles real-time updates with minimal complexity.

Common Formats

Character-based dot matrix LCDs are available in several standard configurations, defined by the number of characters per line and the number of display lines. Common formats include 8x2, 16x2, 20x4, and 40x4. These are widely used in embedded systems that require clear, line-based communication, such as control panels, diagnostics, and industrial interfaces.

These displays are offered in various mechanical sizes and orientations to accommodate layout constraints, with options for backlighting, viewing angles, and connector styles that suit a range of application needs.

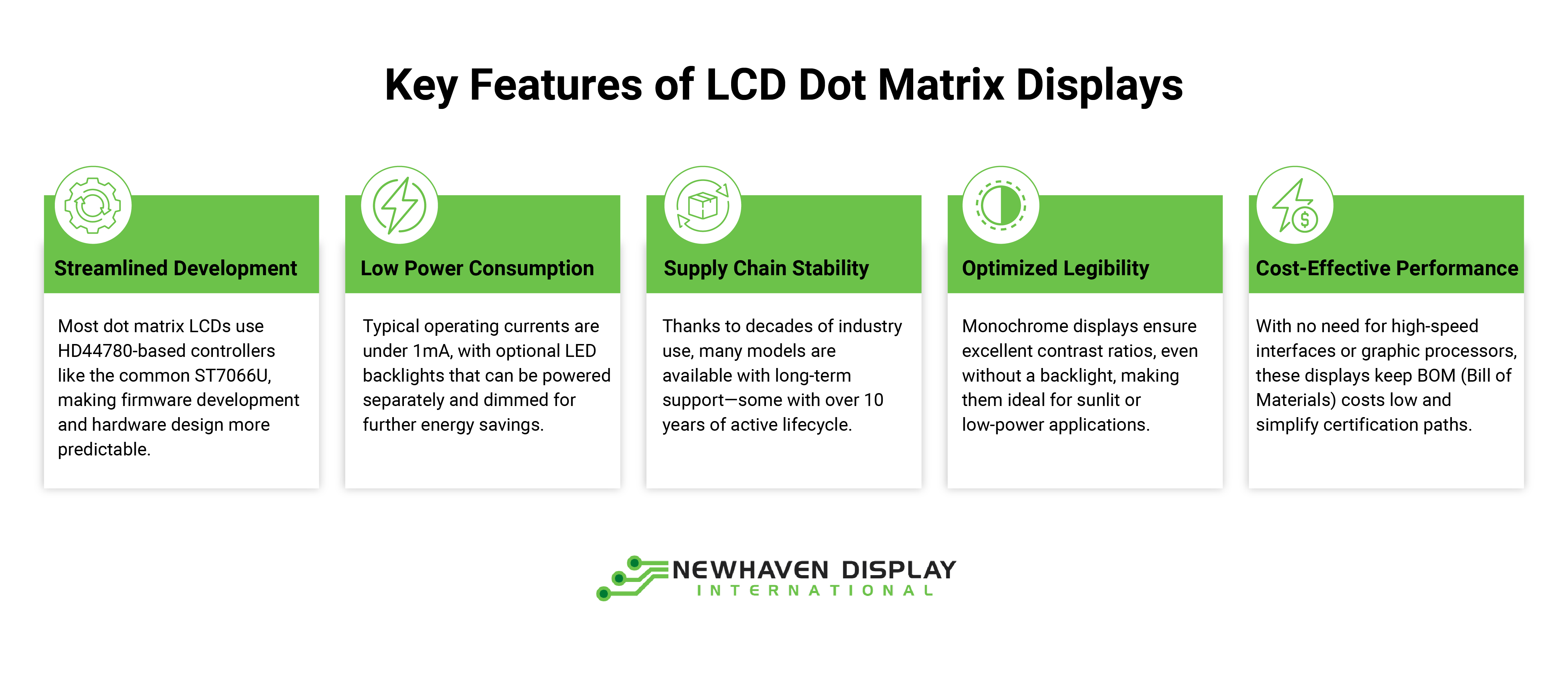

Key Features and Benefits

Beyond their simple design, dot matrix LCDs offer practical advantages that align with real-world engineering and production needs.

Streamlined Development
Standardized formats, proven controller compatibility, and simple wiring reduce complexity during integration, helping teams accelerate prototyping and deployment.

Low Power Consumption
These displays draw minimal current, making them ideal for devices that require continuous operation or are battery-powered.

Supply Chain Stability
Because the technology is well established, dot matrix LCDs remain consistently available with minimal risk of sudden obsolescence.

Optimized Legibility
High-contrast characters and structured layouts enhance readability in both bright and low-light environments, improving usability across a range of settings.

Cost-Effective Performance
With mature production processes and minimal resource demands, dot matrix displays offer a dependable solution at a competitive price point.

Typical Applications Across Industries

Dot matrix LCDs support a wide range of products across sectors that depend on stable, purpose-built interface technology.

Industrial Equipment

Used in factory automation systems, motor controllers, and diagnostics, dot matrix displays provide clear system status and user prompts. Their durability and readability make them ideal for harsh or high-noise environments where distractions must be minimized.

Medical Devices

Instruments such as centrifuges, analyzers, and portable monitors often rely on dot matrix LCDs for their low power draw and long product life. The technology supports precise data display while meeting strict reliability and safety standards.

Automotive and Transportation

From dashboard modules to HVAC controls and EV charging systems, these displays serve key functions without overcomplicating the interface. Their format stability and supply continuity are especially valuable in vehicles with long design cycles.

Consumer and Commercial Products

Appliances, vending machines, and commercial electronics use dot matrix LCDs to present menus, instructions, or feedback in a way that is both simple and effective.

Energy and Utility Systems

These displays appear in solar inverters, power meters, and grid control units. Each application requires consistent, legible output in outdoor, mobile, or remote environments.

Graphic vs. Character Dot Matrix Displays

Dot matrix LCDs fall into two categories: character and graphic.

While graphic dot matrix displays offer meaningful flexibility, some projects call for more advanced presentation. When color accuracy, sharper detail, or elevated aesthetics are required, graphic OLED or TFT displays may be a stronger fit. These technologies expand visual capabilities without sacrificing the dependability engineers expect.

Interface Options and Integration

Dot matrix LCDs offer multiple connection methods to support a wide range of embedded designs. Character displays typically use parallel, SPI, or I²C interfaces, which are compatible with most microcontrollers and simplify system-level integration.

Graphic displays may include built-in controllers like the ST7920 or KS0108, which manage pixel addressing and streamline communication with the host processor.

Connector styles such as pin headers, ZIF, and FPC accommodate different mechanical layouts. Considerations like backlight control, voltage range, and logic level ensure electrical compatibility with your hardware.

Customization Options for Dot Matrix LCDs

Standard dot matrix LCDs cover many use cases, but some applications require customization to provide a precise fit and a more polished user experience.

Mechanical Adjustments
Display dimensions, mounting configurations, connector placement, and bezel features can be modified to match your product’s form factor and enclosure.

Electrical Modifications
Pinouts, interface types, and voltage requirements can be configured to suit your system’s electrical design.

Visual / Optical Special Integrations
Multilingual character sets, backlight options, pixel and glass coloration, and on-display logo printing help create a more cohesive and target-relevant interface.

Environmental Adaptations
Options are available for high-brightness applications, extended temperature ranges, or ruggedized builds where reliability is critical.

Choosing the Right LCD Dot Matrix

Dot matrix LCDs remain a dependable choice for designs that prioritize clear communication, low power use, and long-term reliability. Their known reliability and cost-effectiveness make them a strong fit across industries and use cases.

However, display expectations are evolving. When projects call for sharper visuals, full-color output, or a more modern interface, many manufacturers are turning to graphic OLED and TFT displays. These technologies support higher visual impact without compromising performance.

Display selection should align with your product’s goals. Some applications call for simplicity and structure. Others require greater flexibility or refined aesthetics. Newhaven Display provides the guidance, customization, and long-term support to help you select the right solution and move forward with clarity.

Key Takeaways

While OLED and TFT displays continue to gain traction for advanced visual needs, dot matrix LCDs remain a practical, dependable choice for applications where clear communication and long-term performance matter most. Their simplicity and trusted operation make them a reliable option across sectors.
