7 inch IPS Capacitive HDMI TFT LCD Module

(2 reviews) Write a Review
Model:
NHD-7.0-HDMI-HR-RSXP-CTU
Size:
7.0" Diagonal | 1024x600 Pixels
Display Type:
IPS
Touchscreen:
USB-HID Capacitive
Interface:
HDMI
Controller/Driver:
TFP401A
Resources:
$135.45
  • 7" LCD IPS Capacitive HDMI TFT Module front screen ON

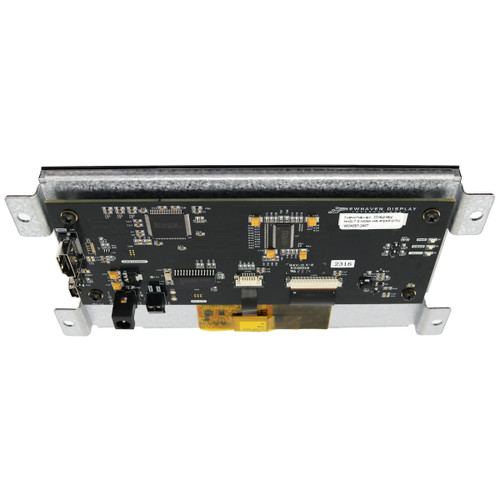

  • 7 inch IPS Capacitive HDMI TFT LCD Module PCB back
  • 7" IPS Capacitive HDMI TFT LCD Module PCB back angle
  • Specification drawing for NHD-7.0-HDMI-HR-RSXP-CTU

NHD-7.0-HDMI-HR-RSXP-CTU | 7" IPS LCD | Sunlight Readable Display | High Resolution 1024x600 Pixels | USB-HID Capacitive Touchscreen

This 7 inch IPS TFT LCD module has built-in HDMI compatibility for a streamlined connection between devices with fewer cables. With 24-bit true color and a high resolution 1024x600 screen with IPS technology, this display provides superior image quality, accurate color reproduction, and high contrast ratio at every angle. This Liquid Crystal Display has a USB-HID capacitive touch panel with no external driver installation required. Once the display is connected to the system via USB, Windows will automatically detect and install the necessary drivers. An excellent choice for projects that desire high-end visual output with multi-touch PCAP touchscreen functionality.

High Definition 7 Inch LCD and HDMI Interface Module with Steel Mounting Bracket

Assembled to the display is a custom PCB providing the user an all-in-one, plug-and-play HDMI + USB touch solution. It is attached to a steel mounting bracket for easy, secure installation. There is an on-board Texas Instruments TFP401A HDMI/DVI receiver and TPS61165 high brightness LED driver with PWM. Whether you need a display for your Raspberry Pi, BeagleBone, Windows, or a touchscreen HMI for your Linux or other embedded system, this display offers a solution.

7" Sunlight Readable LCD IPS

A high brightness LED backlight with 940 nits and 3M Brightness Enhancement Film allows this TFT to be a sunlight readable display, making it suitable for indoor and outdoor applications. It also includes an EMI shielded FPC for added protection. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

Product Overview

7" TFT LCD Product Specifications

Size: 7" diagonal
Display Format: 24-bit true color; 1024x600 pixels
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full view
Touchscreen: USB-HID capacitive
Outline L x W x H: 189.68mm x 106.7mm x 27.8mm
Viewing Area L x W: 155.21mm x 86.92mm
Active Area L x W: 154.21mm x 85.92mm
Supply Voltage: 5V
Luminance: 940 nits
Interface: HDMI
Controller Type: TFP401A
Connection Type: HDMI, USB
Operating Temperature: -20°C ~ 70°C
Storage Temperature: -30°C ~ 80°C
Built-in Mounting: 5.16mm mounting holes for M5 screws
Added Feature: 3M brightness enhancement film, LED driver with PWM
