5.0 inch Premium HDMI TFT Module without Touchscreen

(No reviews yet) Write a Review
Model:
NHD-5.0-HDMI-N-RTXL
Size:
5.0" Diagonal | 800x480 Pixels
Display Type:
Premium (MVA)
Touchscreen:
None
Interface:
HDMI
Controller/Driver:
TFP401A
Resources:
$104.50
  • 5.0 inch Premium HDMI TFT Module front ON
  • 5.0 inch Premium HDMI TFT Module PCB back

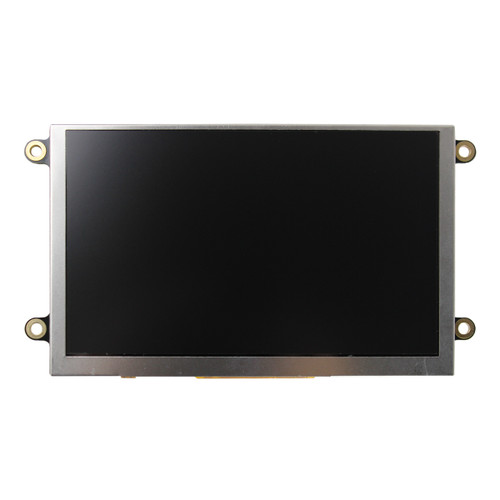

  • 5.0 inch Premium HDMI TFT Module front OFF
  • Specification drawing for NHD-5.0-HDMI-N-RTXL

NHD-5.0-HDMI-N-RTXL | 5.0" Premium MVA LCD | HDMI TFT Module | No Touchscreen

This premium 24-bit true color TFT module has built-in HDMI compatibility for a streamlined connection between devices with fewer cables. Assembled to the display, the custom PCB provides the user an all-in-one, plug-and-play HDMI solution and is attached to 3.5mm mounting holes enabling standard M3 screws for easy installation. Included on-board this module is a Texas Instruments TFP401A HDMI/DVI receiver and a high brightness LED driver with PWM. Whether you need a display for your Raspberry Pi/BeagleBone Black application, a Windows/Windows embedded PC monitor, or a touchscreen HMI for your Linux or other embedded system, this display offers a solution. This premium LCD has a high resolution 800X480 screen with MVA technology, which delivers higher contrast and improved viewing angles up to 75° from any direction. This Liquid Crystal Display is RoHS compliant and does not come with a touchscreen.

TFT Product Specifications

Display Format: 24-bit True Color; 800x480 Pixels
Display Type: Premium
Display Mode: Transmissive
Optimal View: 75° Full View
Touchscreen: None
Outline L x W x H: 135.8mm x 75.8mm x 16.1mm
Viewing Area L x W: 109mm x 65.8mm
Active Area L x W: 108mm x 64.8mm
Supply Voltage: 5V
Luminance: 620 cd/m2
Interface: HDMI
Controller Type: TFP401A
Connection Type: HDMI
Operating Temperature: -20°C ~ 70°C
Storage Temperature:  -30°C ~ 80°C
Built-in Mounting: 3.5mm Mounting Holes
Added Feature: 3M Brightness Enhancement Film, LED Driver with PWM
