5.0 inch Premium Capacitive HDMI TFT Module

(No reviews yet) Write a Review
Model:
NHD-5.0-HDMI-N-RTXL-CTU
Size:
5.0" Diagonal | 800x480 Pixels
Display Type:
Premium (MVA)
Touchscreen:
USB-HID Capacitive
Interface:
HDMI, USB
Controller/Driver:
TFP401A
Resources:
$125.28
  • 5.0 inch Premium Capacitive HDMI TFT Module front ON
  • 5.0 inch Premium Capacitive HDMI TFT Module PCB back

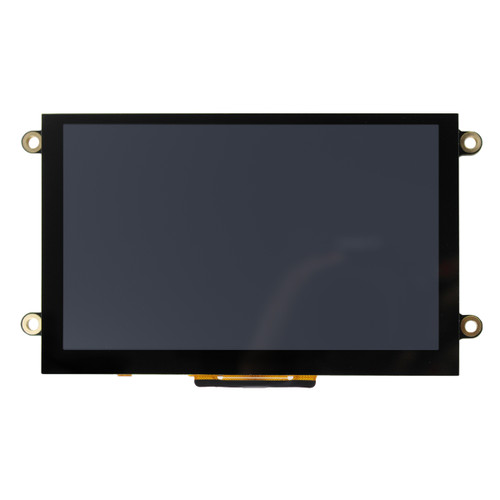

  • 5.0 inch Premium Capacitive HDMI TFT Module front OFF
  • Specification drawing for NHD-5.0-HDMI-N-RTXL-CTU

NHD-5.0-HDMI-N-RTXL-CTU | 5.0" Premium MVA LCD | HDMI TFT Module | USB-HID Capacitive Touchscreen

This premium 5.0” HDMI TFT module has a high resolution screen with 800x480 pixels assembled to a custom PCB we engineered in the USA with built-in HDMI compatibility. Also included is a high brightness LED backlight with 527 cd/m2 luminance. The display offers stunning sharpness in viewing angles up to 70° due to the multi-domain vertical alignment (MVA) technology in this LCD display. While this transmissive LCD boasts high quality, it also includes a USB-HID capacitive touch panel with no requirement for external driver installation. Once the display is connected to the system via USB, Windows will automatically detect and install the necessary drivers. An excellent choice for projects that desire high-end visual output with multi-touch PCAP touchscreen functionality.

The HDMI module provides an all-in-one HDMI + USB Touch solution for virtually any application. Powered by a Texas Instruments TFP401A HDMI/DVI receiver and a high brightness LED driver with PWM. Connect this module with Raspberry Pi or BeagleBone. Use the HDMI module for a Windows Embedded PC monitor or a touchscreen HMI for your Linux or other embedded system. Most Linux applications with an HDMI source will also be fully plug -and-play, however when using our HDMI TFT Modules with the Raspberry Pi, the config.txt file on the Pi’s microSD card will need to be slightly modified by the user. Designed for exceptional performance, reliability, and a streamlined connection with fewer cables. No extra casing is required either to mount this TFT, just use the built-in mounting holes. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

Product Overview

TFT Product Specifications

Display Format: 24-bit True Color; 800x480 Pixels
Display Type: Premium
Display Mode: Transmissive
Optimal View: 75° Full View
Touchscreen: USB-HID Capacitive
Outline L x W x H: 135.8mm x 75.8mm x 17.68mm
Viewing Area L x W: 109mm x 65.8mm
Active Area L x W: 108mm x 64.8mm
Supply Voltage: 5V
Luminance: 527 cd/m2
Interface: HDMI, USB
Compatibility: Raspberry Pi, BeagleBone, and similar boards
Controller Type: TFP401A
Connection Type: HDMI, USB
Operating Temperature: -20°C ~ 70°C
Storage Temperature:  -30°C ~ 80°C
Built-in Mounting: 3.5mm Mounting Holes
Added Feature: 3M Brightness Enhancement Film, LED Driver with PWM
