4X20 Character LCD | STN- Blue Display DZ with Side White Backlight

(1 review) Write a Review
Model:
NHD-0420DZ-NSW-BBW
Size:
4 Rows | 20 Characters
Backlight Color:
White
Display Type/Mode:
STN (-) Blue, Transmissive
Controller/Driver:
ST7066U
Resources:
$27.01
  • 4x20 Character LCD STN Blue with White Backlight Front On
  • 4x20 Character LCD STN Blue with White Backlight Front Off

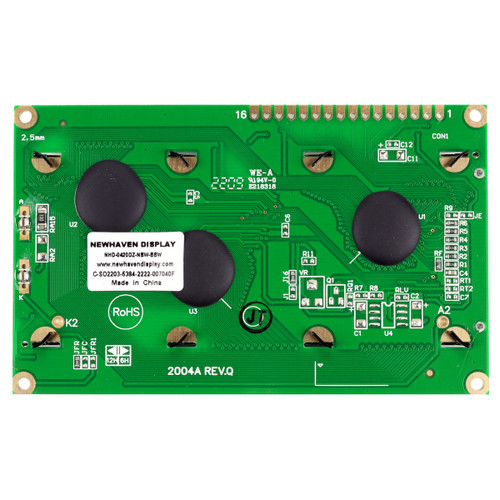

  • 4x20 Character LCD STN Blue with White Backlight PCB Back

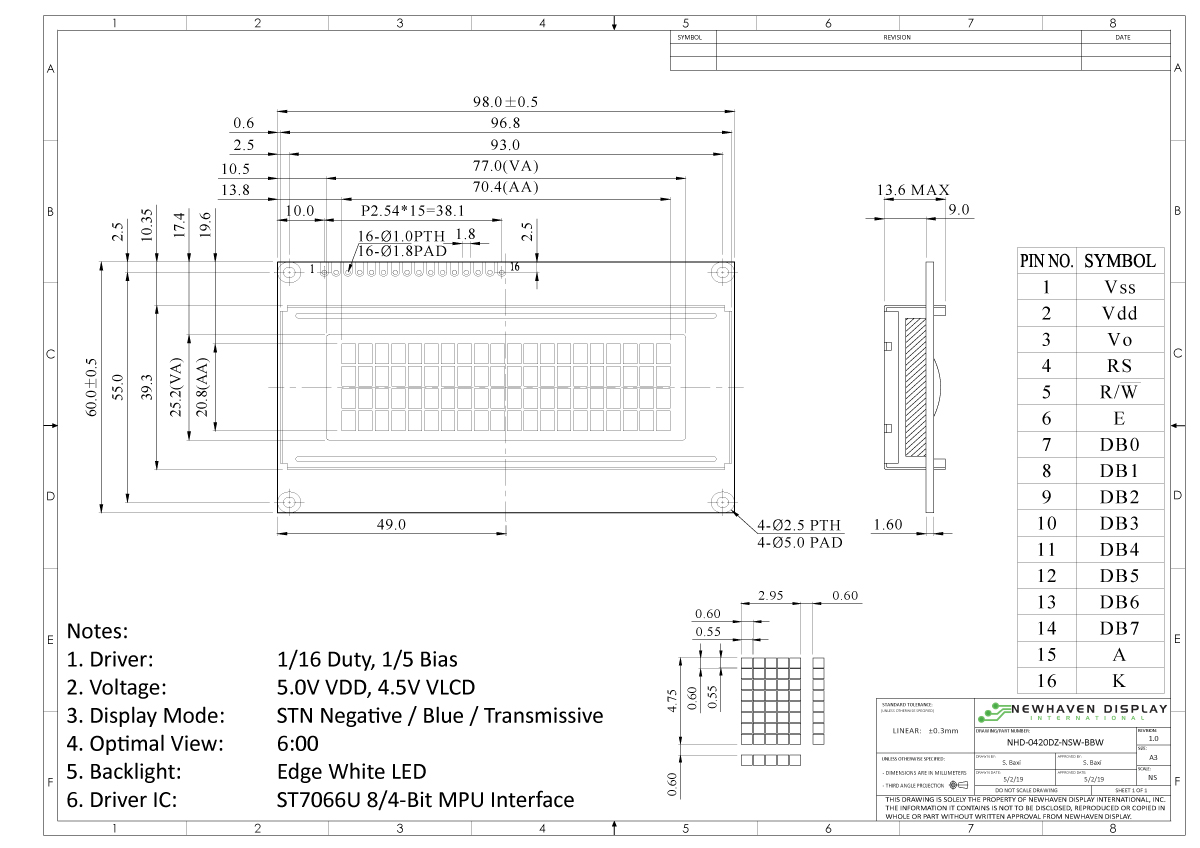

  • Drawing Specification for NHD-0420DZ-NSW-BBW

NHD-0420DZ-NSW-BBW | 20x4 Character Display| Transmissive LCD | Side White Backlight | STN (-) Negative Blue Display

This blue background LCD shows white pixels in a 20x4 display format. The transmissive display mode uses the white backlight for excellent visibility in dark environments. It features a wide operating temperature range (-20 to 70 C) and an optimal view of 6:00. This RoHS-compliant, quality display uses parallel communication, operates with a 5V supply voltage, and offers compatibility with Arduino and similar development boards.

LCD Product Specifications

Number of Characters: 80
Number of Rows: 4
Display Format: 20x4
Display Type: STN (-) Blue
Display Mode: Transmissive
Outline L x W x H: 98.0mm x 60.0mm x 13.6mm
Viewing Area L x W: 77.0mm x 25.2mm
Active Area L x W: 70.4mm x 20.8mm
Supply Voltage: 5.0V
Backlight: Side White
Interface: Parallel
Compatibility: Arduino and similar development boards
Controller Type: ST7066U
Connection Type: 1x16 Thru Hole with 2.54mm pitch
Operating Temperature: -20°C ~ 70°C
Storage Temperature:  -30°C ~ 80°C
