4.3 inch IPS Capacitive HDMI TFT Module

(No reviews yet) Write a Review
4.3" Diagonal | 800x480 Pixels
Display Type:
USB-HID Capacitive
  • 4.3 inch IPS Capacitive HDMI TFT Module front ON
  • 4.3 inch IPS Capacitive HDMI TFT Module PCB back

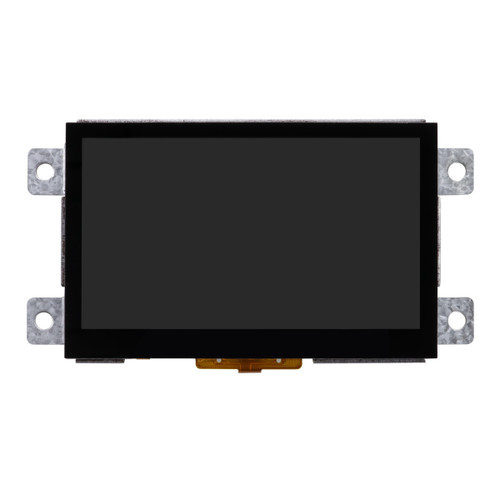

  • 4.3 inch IPS Capacitive HDMI TFT Module front OFF
  • Specification drawing for NHD-4.3-HDMI-HR-RSXP-CTU

NHD-4.3-HDMI-HR-RSXP-CTU | 4.3" IPS LCD | HDMI TFT Module |USB-HID Capacitive Touchscreen

This 24-bit true color TFT display module has built-in HDMI compatibility for a streamlined connection between devices with fewer cables. Assembled to the display, the custom PCB provides the user an all-in-one, plug-and-play HDMI + USB touch solution and is attached to a steel mounting bracket for easy, secure installation. Included on-board this module is a Texas Instruments TFP401A HDMI/DVI receiver and a high brightness LED driver with PWM. Whether you need a display for your Raspberry Pi/BeagleBone Black application, a Windows/Windows embedded PC monitor, or a touchscreen HMI for your Linux or other embedded system, this display offers a solution. The LCD has a high resolution 800X480 screen with IPS technology, which delivers superior image quality, accurate color reproduction, and high contrast ratio at every angle. This Liquid Crystal Display is RoHS compliant and has a USB-HID capacitive touch panel with no requirement for external driver installation.

TFT Product Specifications

Display Format: 24-bit True Color; 800x480 Pixels
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full View
Touchscreen: USB-HID Capacitive
Outline L x W x H: 132.58mm x 69.9mm x 26.39mm
Viewing Area L x W: 96.1mm x 54.8mm
Active Area L x W: 95.04mm x 53.86mm
Supply Voltage: 5V
Luminance: 723 cd/m2
Interface: HDMI
Controller Type: TFP401A
Connection Type: HDMI, USB
Operating Temperature: -20°C ~ 70°C
Storage Temperature:  -30°C ~ 80°C
Built-in Mounting: 5.16mm Mounting Holes for M5 screws
Added Feature: 3M Brightness Enhancement Film, LED Driver with PWM
