2X20 Character COG LCD | FSTN+ Display with White Backlight and Mounting Holes

(2 reviews) Write a Review
Model:
NHD-C0220BiZ-FSW-FBW-3V3M
Size:
2 Rows | 20 Characters
Backlight Color:
White
Display Type/Mode:
FSTN (+) Transflective
Controller/Driver:
ST7036
Resources:
$12.73
  • COG 2x20 Character LCD Module FSTN+ White Backlight front ON
  • COG 2x20 Character LCD Module FSTN+ White Backlight front OFF

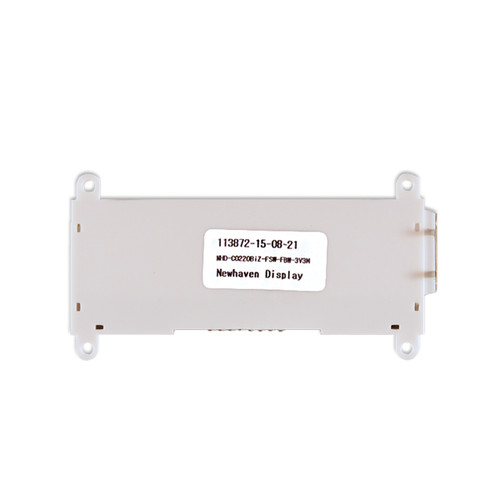

  • COG 2x20 Character LCD Module FSTN+ White Backlight back
  • Specification Drawing for NHD-C0220BiZ-FSW-FBW-3V3M

NHD-C0220BiZ-FSW-FBW-3V3M | 20x2 Character COG | Transflective LCD | Side White Backlight | FSTN (+) Positive Display | Mounting Holes

This Chip-On-Glass (COG) 20x2 character Liquid Crystal Display shows characters with dark pixels on a white background. This FSTN positive display can achieve higher contrast and is visible with ambient light or the built-in backlight. As a COG display, there's no PCB, and the controller/driver is directly bonded to the glass of the display. This transflective LCD Display can operate on a wide operating temperature range from -20 to 70 degrees Celsius and on a 3.3V supply voltage. Compatible with popular development boards such as Arduino, this NHD-C0220BiZ-FSW-FBW-3V3M display has an optimal view of 6:00 and comes with mounting holes.

LCD Product Specifications

Number of Characters: 40
Number of Rows: 2
Display Format: 20x2
Display Type: FSTN (+)
Display Mode: Transflective
Outline L x W x H: 71.6mm x 37.6mm x 11mm
Viewing Area L x W: 61.0mm x 15.1mm
Active Area L x W: 58.5mm x 11.6mm
Supply Voltage: 3.3V
Backlight: Side White
Interface: I2C
Compatibility: Arduino and similar development boards
Controller Type: ST7036
Connection Type: 1x8 pins with 2mm pitch
Operating Temperature: -20°C ~ 70°C
Storage Temperature: -30°C ~ 80°C
Added Feature: Mounting Holes

LCD Custom Solutions

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


Connector Customization

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.


Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.


PCB Modifications

Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.

Quality Standards

At Newhaven Display we strive every day to provide our customers with the highest quality products. This means Quality, Engineering, and Manufacturing teams are aligned to exceed your expectations.

Our customers should expect their products to meet or exceed the following standards:

All Products

Reliability Testing Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass Cleanliness Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel Appearance Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB Appearance PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Soldering Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
Consistency Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product Integrity Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass Color While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & Safety All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
