2X16 Character COG LCD | STN+ Gray Display with Side White Backlight 3V

(No reviews yet) Write a Review
2 Rows | 16 Characters
Backlight Color:
Display Type/Mode:
STN (+) Gray, Transflective
  • LCD COG 2x16 Character STN Gray Display White Backlight Front ON
  • LCD COG 2x16 Character STN Gray Display White Backlight Front OFF

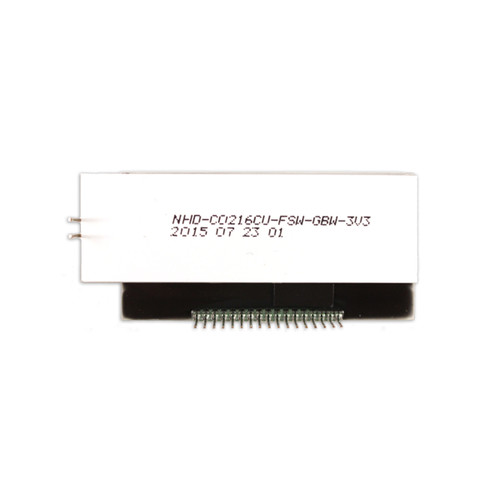

  • LCD COG 2x16 Character STN Gray Display White Backlight back
  • Specification Drawing for NHD-C0216CU-FSW-GBW-3V3

Minimum Purchase: 2000 units Current Stock: 1907

NHD-C0216CU-FSW-GBW-3V3 | 16x2 Character COG | Transflective LCD | Side White LED Backlight | STN (+) Positive Gray Display

The NHD-C0216CU-FSW-GBW-3V3 is a 2x16 character Chip-On-Glass (COG) LCD with a side white backlight. This display is ideal for applications where visibility is essential, such as in industrial settings or low-light conditions. The STN positive gray display is visible with ambient light or a backlight, and the 6:00 optimal view ensures the display is easily read from all angles. The product is ROHS-compliant and has undergone several quality tests to meet or exceed quality standards. The 8-bit parallel data communication makes this LCD high performing with low power consumption as it just needs a supply voltage of 3V.

This 2 rows, 16 characters display has a built-in font table, making it easy to start. The display is compatible with many development boards, including Arduino.

LCD Product Specifications

Number of Characters: 32
Number of Rows: 2
Display Format: 16x2
Display Type: STN (+) Gray
Display Mode: Transflective
Outline L x W x H: 56mm x 25.3mm x 5.5mm
Viewing Area L x W: 45.7mm x 14.3mm
Active Area L x W: 42.86mm x 11.32mm
Supply Voltage: 3.0V
Backlight: Side White
Interface: Parallel
Compatibility: Arduino and similar development boards
Controller Type: ST7032
Connection Type: 1x17 pins with 1.5mm pitch
Operating Temperature: -20°C ~ 70°C
Storage Temperature: -30°C ~ 80°C
