Versatile Breakout Board 26 Pin FFC Connector with 1mm Pitch and 2x13 Thru-holes
The NHD-FFC26-1 is designed to get you working on your project quickly. It uses a 1mm pitch 26 pin FFC connection opposite 2x13 thru-holes with a 2.54mm pitch to ensure stability and allow you to focus your time on developing. Its small form-factor and mounting holes provide great flexibility and easy mounting in your design or prototype.
NHD-FFC26-1: Technical Specifications
| Function | FFC Breakout Board |
|---|---|
| Connection Type | 26 Pin 1mm Pitch FFC Connector, 2.54mm Pitch 2x13 Thru-hole |

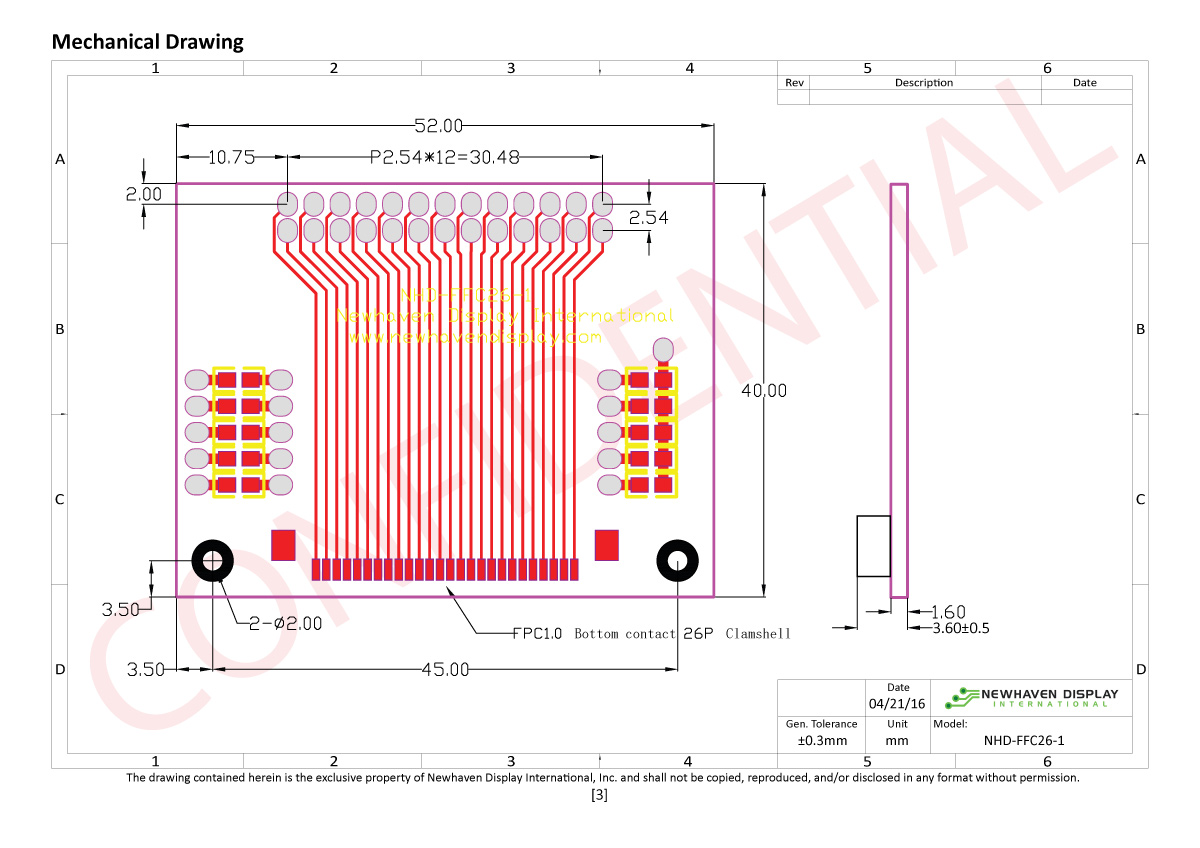

| Outline L x W | 52mm x 40mm |
| Mounting | 3.5mm Mounting Holes |
