NHD-FFC24 | Breakout Board | 24 Pin 0.5mm Pitch FFC Connector | 2.54mm Thru-Hole
This FFC breakout board will function as an adaptor board designed to work in conjunction with our display products to give you a faster, more flexible development process. It has a 24pin FFC connector with 0.5mm pitch on one end and a standard 2x12 thru-hole with a 2.54mm pitch on the other for easy connection. It also has two mounting holes.
|Function:||FFC Breakout Board|
|Connection Type:||24pin 0.5mm Pitch FFC, 2.54mm Pitch 2x12 Thru-hole|

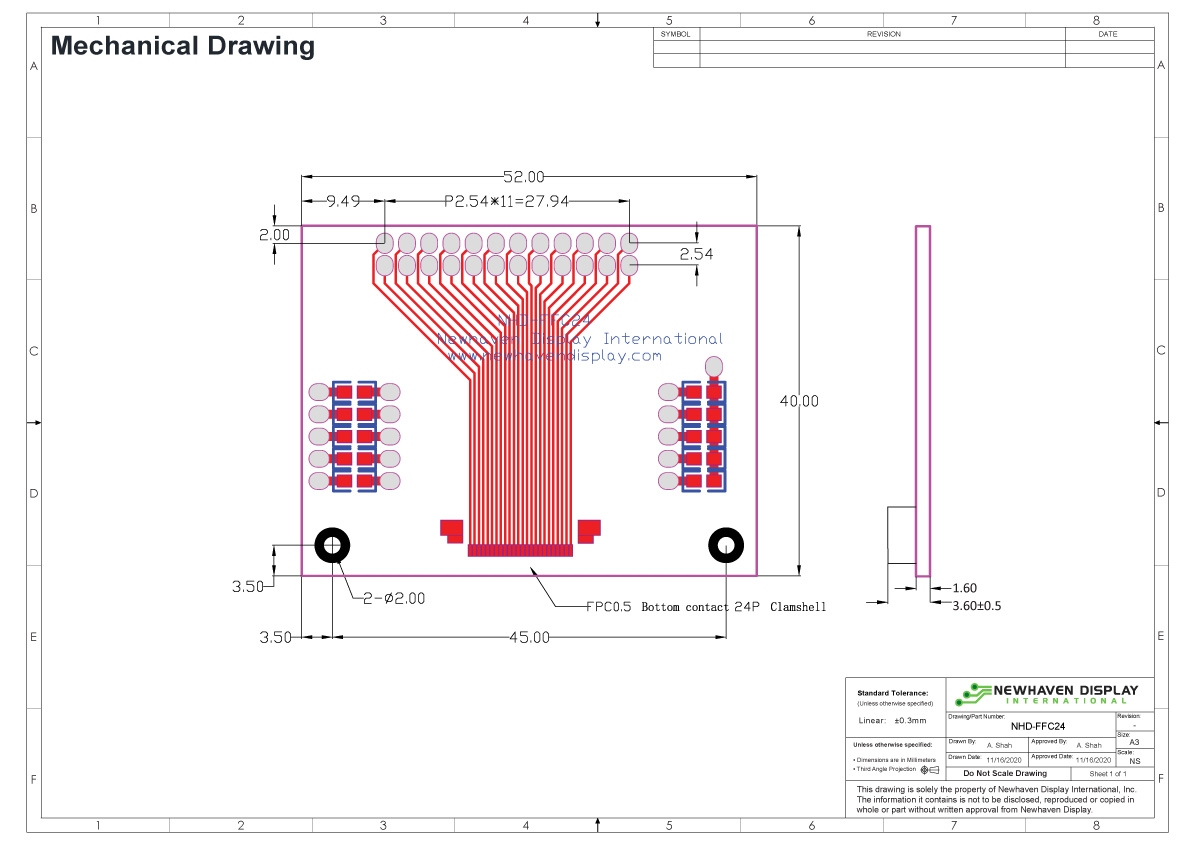

|Outline L x W x H:||52mm x 40mm|
|Built-in Mounting:||3.5mm Mounting Holes|
At Newhaven Display we strive every day to provide our customers with the highest quality products. This means Quality, Engineering, and Manufacturing teams are aligned to exceed your expectations.
Our customers should expect their products to meet or exceed the following standards:
|Reliability Testing||Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.|
|Glass Cleanliness||Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.|
|Bezel Appearance||Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.|
|PCB Appearance||PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.|
|Soldering||Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.|
|Consistency||Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.|
|Product Integrity||Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.|
|Glass Color||While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.|
|ESD Protection & Safety||All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.|
