Sharp 2.7" Monochrome Yellow Graphic OLED Module
Offering bold visuals, the NHD-2.7-1286WDY3-M features monochrome yellow graphics that stand out against a deep black backdrop, making it an excellent display choice for your messaging. Its 128x64 pixel resolution maintains readability from any viewpoint, enabled by passive-matrix OLED technology's wide viewing angles. The SSD1322 controller simplifies Arduino project integration through its adaptable Serial or Parallel interface options.
A built-in 20-pin Molex connector makes installation smooth and painless. The display operates between -40 and 85°C to withstand the most demanding environments, runs on 3.3 volts, and is RoHS compliant for environmental safety.

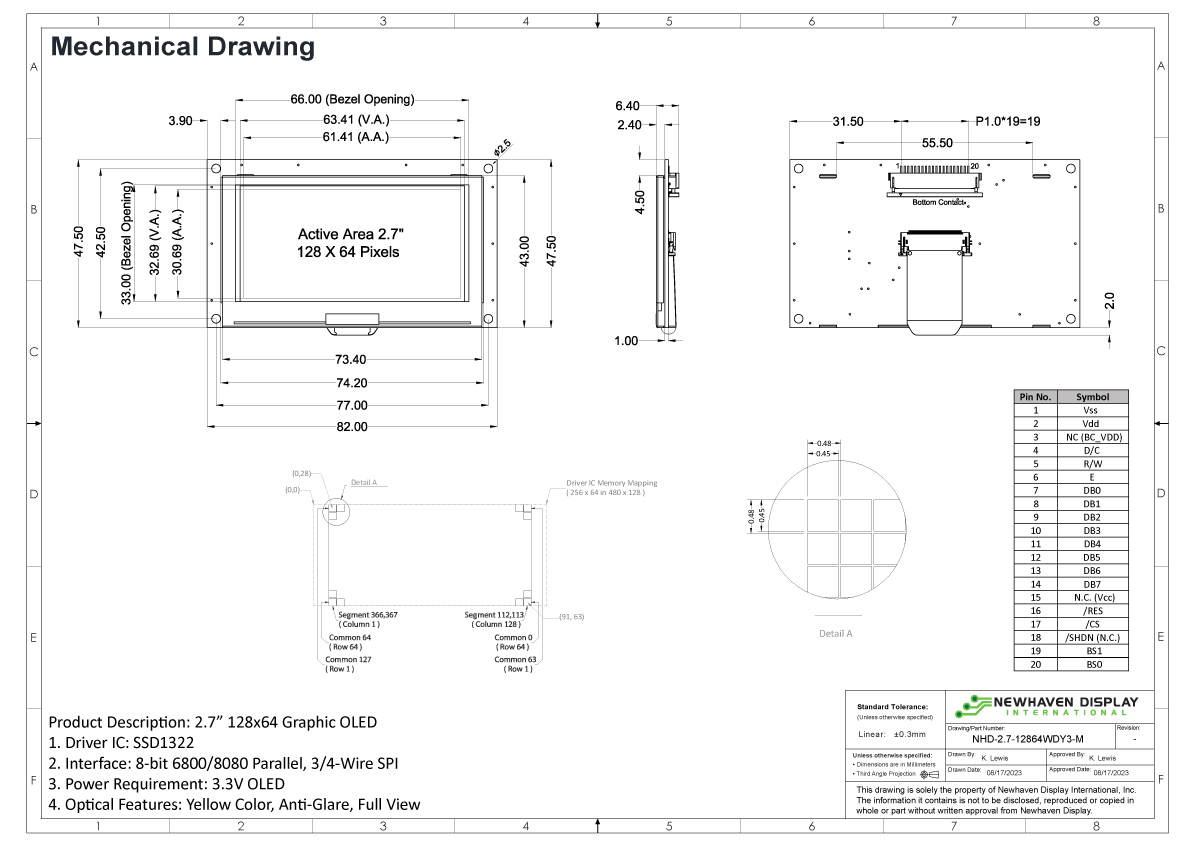

NHD-2.7-1286WDY3-M: Technical Specifications
| Size | 2.7" Diagonal |
|---|---|
| Display Format | 128x64 Pixels |
| Display Type | Graphic OLED Module |
| Display Color | Monochrome Yellow |
| Outline L x W x H | 82mm x 47.5mm x 5.5mm |
| Viewing Area L x W | 63.41mm x 32.69mm |
| Active Area L x W | 61.41mm x 30.69mm |
| Supply Voltage | 3.3V |
| Interface | Serial / Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | SSD1322 |
| Connection Type | 20-pin Molex 52271-2079 FFC connector |
| Operating Temperature | -40° ~ 85°C |
| Storage Temperature | -40° ~ 85°C |
| Additions | 20-Pin Molex Connector |
1 Review
-
clear and bright 128x64 oled
Thought it was a great oled for a small gadget. One of the best oled you can find with 128x64 resolution. Decent build quality too.
