Quick-Connect 2.7" Monochrome White Graphic OLED Module
The monochrome white graphics of the NHD-2.7-12864WDW3-M stand out against its deep black background, making it an excellent choice to get your message across clearly. Its 128x64 pixel screen is readable from any direction, thanks to the unparalleled viewing angles created by its passive-matrix OLED technology. Quick to work into projects using Arduino or similar development boards, the SSD1322 controller is easy to integrate because of its versatile Serial or Parallel interface options.
A built-in 20-pin Molex connector makes installation smooth and painless. The display operates between -40 and 85°C to withstand the most demanding environments, runs on 3.3 volts, and is RoHS compliant for environmental safety.
NHD-2.7-12864WDW3-M: Technical Specifications
| Size | 2.7" Diagonal |
|---|---|
| Display Format | 128x64 Pixels |
| Display Type | Graphic OLED Module |
| Display Color | Monochrome White |

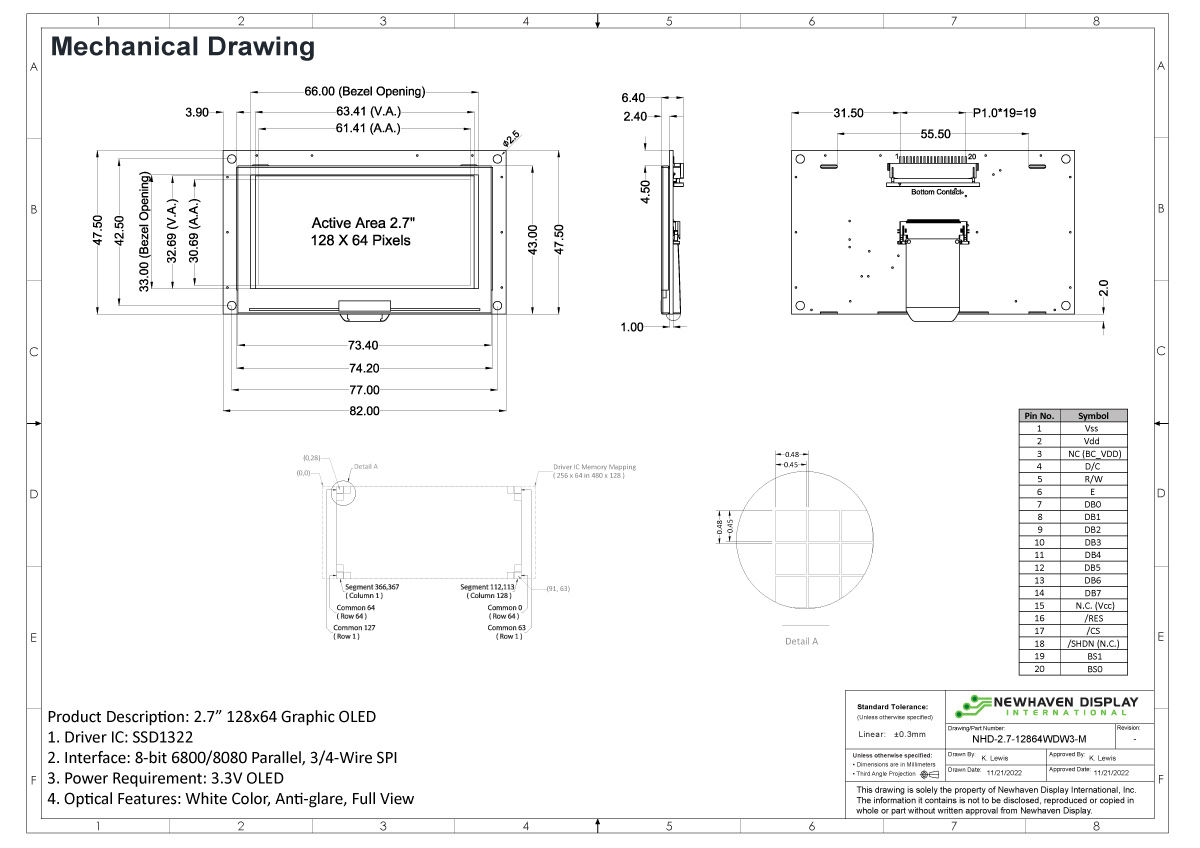

| Outline L x W x H | 82mm x 47.5mm x 5.5mm |
| Viewing Area L x W | 63.41mm x 32.69mm |
| Active Area L x W | 61.41mm x 30.69mm |
| Supply Voltage | 3.3V |
| Interface | Serial / Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | SSD1322 |
| Connection Type | 20-pin Molex 52271-2079 FFC connector |
| Operating Temperature | -40° ~ 85°C |
| Storage Temperature | -40° ~ 85°C |
| Additions | 20-Pin Molex Connector |
