2.4 inch Sunlight Readable TFT without Touchscreen

(5 reviews) Write a Review
2.4" Diagonal | 240x320 Pixels
Display Type:
Sunlight Readable
  • 2.4 inch Sunlight Readable TFT display front cropped
  • 2.4 inch Sunlight Readable TFT display front ON

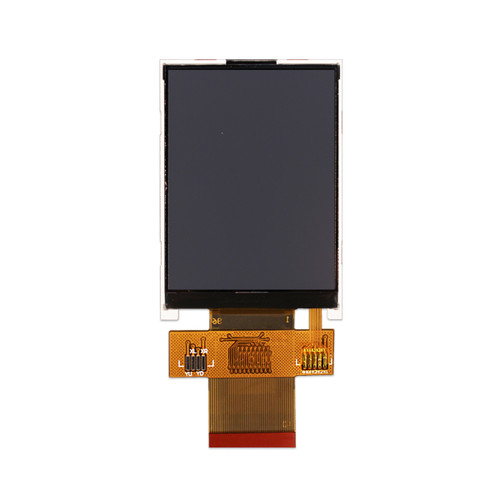

  • 2.4 inch Sunlight Readable TFT display front OFF

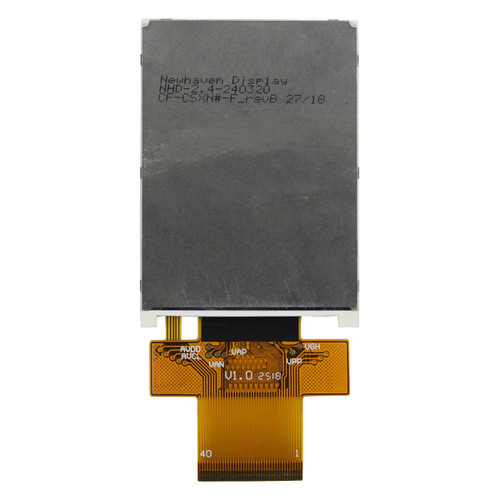

  • 2.4 inch Sunlight Readable TFT display back
  • Specification drawing for NHD-2.4-240320CF-CSXN#-F

NHD-2.4-240320CF-CSXN#-F | 2.4" Sunlight Readable Display | 240x320 Pixels | No Touchscreen

This sunlight readable 2.4” TFT display has a resolution of 240x320 pixels, a 6:00 optimal view, and a high brightness LED backlight with 1,000 nits, making it an ideal choice for projects that require visibility in outdoor or brightly lit environments. While this transmissive LCD does not feature a touchscreen, its compact size, 3.3 voltage power supply, and impressive display quality make it an excellent choice for projects that require visual output in portrait mode without touch functionality.

2.4" TFT LCD with Parallel Interface and FFC ZIF Connection

Choose between an 8-bit or 16-bit parallel MPU interface (8080-II Series) to suit your project's requirements. This interface provides flexibility and compatibility with various Arduino models. This display features a 40-pin FFC ZIF (Flexible Flat Cable, Zero Insertion Force) I/O connection style, ensuring a hassle-free electrical connection. Say goodbye to connection issues and hello to smooth operation, as you bring your Arduino projects to life with stability and ease. Powered by the ST7789VI controller, this TFT LCD display delivers exceptional performance and reliability. The controller optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

Product Overview

2.4" TFT Product Specifications

Size: 2.4" diagonal
Display Format: 262K colors; 240x320 pixels
Display Type: Sunlight Readable
Display Mode: Transmissive
Optimal View: 6:00
Touchscreen: None
Outline L x W x H: 42.8mm x 59.91mm x 2.55mm
Viewing Area L x W: 37.72mm x 49.96mm
Active Area L x W: 36.72mm x 48.96mm
Supply Voltage: 3.3V
Luminance: 1,000 nits
Interface: 8-bit or 16-bit Parallel (8080-II Series)
Compatibility: Arduino and similar development boards
Controller Type: ST7789VI
Connection Type: 40-pin FFC ZIF
Operating Temperature: -20°C ~ 70°C
Storage Temperature: -30°C ~ 80°C
Built-in Mounting: None
Added Feature: 3M brightness enhancement film

2.4" TFT Custom Solutions

LCD Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

2.4" LCD Touchscreen Add-on

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

LCD Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.

2.4" LCD Cover Glass

Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.

Quality Standards

At Newhaven Display we strive every day to provide our customers with the highest quality products. This means Quality, Engineering, and Manufacturing teams are aligned to exceed your expectations.

Our customers should expect their products to meet or exceed the following standards:

All Products

Reliability Testing Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass Cleanliness Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel Appearance Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB Appearance PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Soldering Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
Consistency Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product Integrity Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass Color While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & Safety All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
