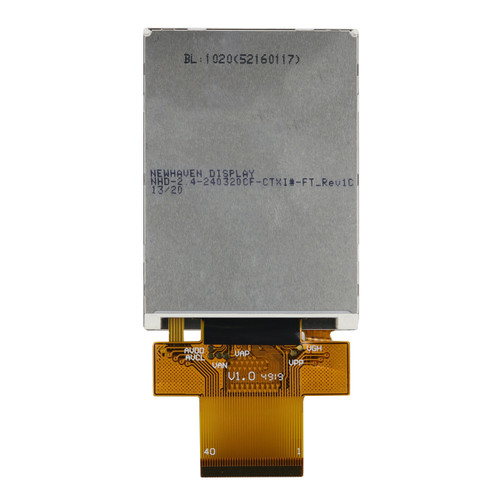

NHD-2.4-240320CF-CTXI#-FT | 2.4" Standard LCD | 240x320 Pixels | Resistive Touchscreen

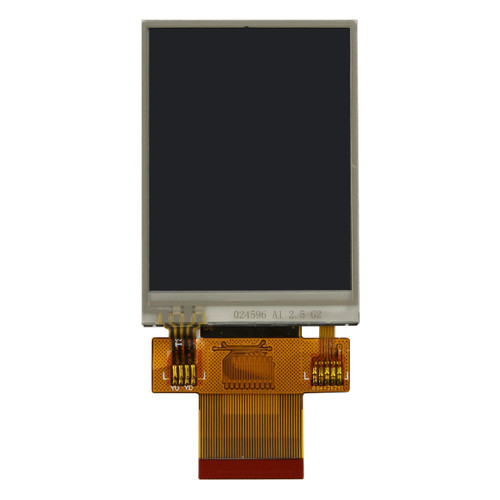

This 240x320 resolution LCD TFT is a standard display with 8-bit/16-bit Parallel interface, offering 262K colors and a 6:00 optimal view. This Liquid Crystal Display has a built-in ST7789Vi controller, FFC ZIF I/O connection, is RoHS compliant and has a 4-wire resistive touchscreen.
TFT Product Specifications
|Display Format:||262K colors; 240x320 Pixels|
|Outline L x W x H:||42.72mm x 60.26mm x 4.45mm|
|Viewing Area L x W:||38.32mm x 50.26mm|
|Active Area L x W:||37.52mm x 48.96mm|
|Connection Type:||40 pin FFC|
|Operating Temperature:||-20°C ~ 70°C|
|Storage Temperature:||-30°C ~ 80°C|
TFT Custom Solutions
At Newhaven Display we strive every day to provide our customers with the highest quality products. This means Quality, Engineering, and Manufacturing teams are aligned to exceed your expectations.
Our customers should expect their products to meet or exceed the following standards:
|Reliability Testing||Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.|
|Glass Cleanliness||Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.|
|Bezel Appearance||Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.|
|PCB Appearance||PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.|
|Soldering||Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.|
|Consistency||Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.|
|Product Integrity||Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.|
|Glass Color||While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.|
|ESD Protection & Safety||All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.|
Newhaven Display partners with distributors worldwide to bring you the best products and design services, no matter where you are working from.
Great product, excellent customer support
Good quality, fast shipping.
Very good support
We were developing a new product and we receive excellent support from their engineering team. They helped us decide the best display for our application. Their displays are of very good quality compared to other brands. Highly recommended.
Bright colors and good contrast.
I have purchased display from other distributors and this is by far one of the best in quality and the customer support is great. Colors are bright and the contrast is very good.
Sharp and crisp colors for such a small screen. took some time to get it set up but support was very helpful.
Clear and easy to read
Once I completed the initial setup, everything worked perfect. The display itself is very clear and easy to read. The resistive touchscreen is responsive. I used this with an arduino and the example code provided by support was good.
