2.4 inch Premium SPI TFT without Touchscreen

(No reviews yet) Write a Review
Model:
NHD-2.4-240320CF-BSXV-F
Size:
2.4" Diagonal | 240x320 Pixels
Display Type:
Premium (MVA)
Touchscreen:
None
Interface:
SPI
Controller/Driver:
ST7789VI
Resources:
$21.73
  • 2.4 inch Premium SPI TFT display front cropped
  • 2.4 inch Premium SPI TFT display front ON

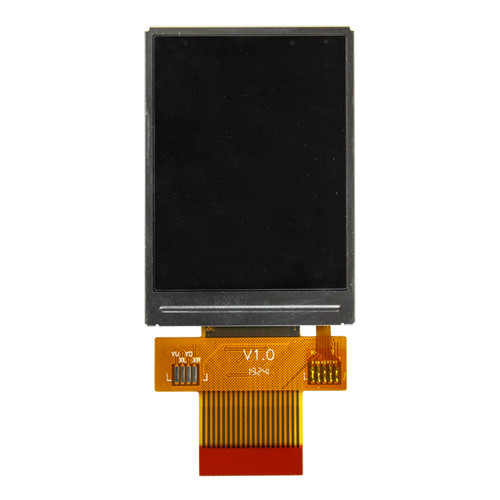

  • 2.4 inch Premium SPI TFT display front OFF
  • 2.4 inch Premium SPI TFT display back
  • Specification drawing for NHD-2.4-240320CF-BSXV-F

NHD-2.4-240320CF-BSXV-F | 2.4" Premium MVA LCD | 240x320 Pixels | Serial SPI Interface | 20-pin FFC ZIF Connection | No Touchscreen

This premium 2.4” TFT display has a resolution of 240x320 pixels and boasts a bright LED backlight with 850 cd/m2 luminance. The display offers stunning sharpness in viewing angles up to 70° due to the multi-domain vertical alignment (MVA) technology in this LCD display. While this transmissive LCD does not feature a touchscreen, its compact size, 3.3 voltage power supply, and impressive display quality make it an excellent choice for projects that require visual output in portrait mode without touch functionality.

The 3/4-wire SPI serial interface enhances communication efficiency between your Arduino and the display. Experience lightning-fast data transfer and real-time updates, enabling smoother animations and more dynamic visual effects. This interface provides flexibility and compatibility with various Arduino models, enabling seamless integration into your existing projects. This display features a 20-pin FFC ZIF (Flexible Flat Cable, Zero Insertion Force) I/O connection style, ensuring a hassle-free electrical connection. Say goodbye to connection issues and hello to smooth operation, as you bring your Arduino projects to life with stability and ease. Powered by the ST7789VI controller, this TFT LCD display delivers exceptional performance and reliability. The controller optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

Product Overview

TFT Product Specifications

Display Format: 262K colors; 240x320 Pixels
Display Type: Premium
Display Mode: Transmissive
Optimal View: 70° Full View
Touchscreen: None
Outline L x W x H: 42.72mm x 60.26mm x 2.55mm
Viewing Area L x W: 37.72mm x 49.96mm
Active Area L x W: 36.72mm x 48.96mm
Supply Voltage: 3.3V
Luminance: 850 cd/m2
Interface: 3/4-wire serial SPI
Compatibility: Arduino and similar development boards
Controller Type: ST7789VI
Connection Type: 20 pin FFC
Operating Temperature: -20°C ~ 70°C
Storage Temperature:  -30°C ~ 80°C
Built-in Mounting: None
Added Feature: 3M Brightness Enhancement Film
